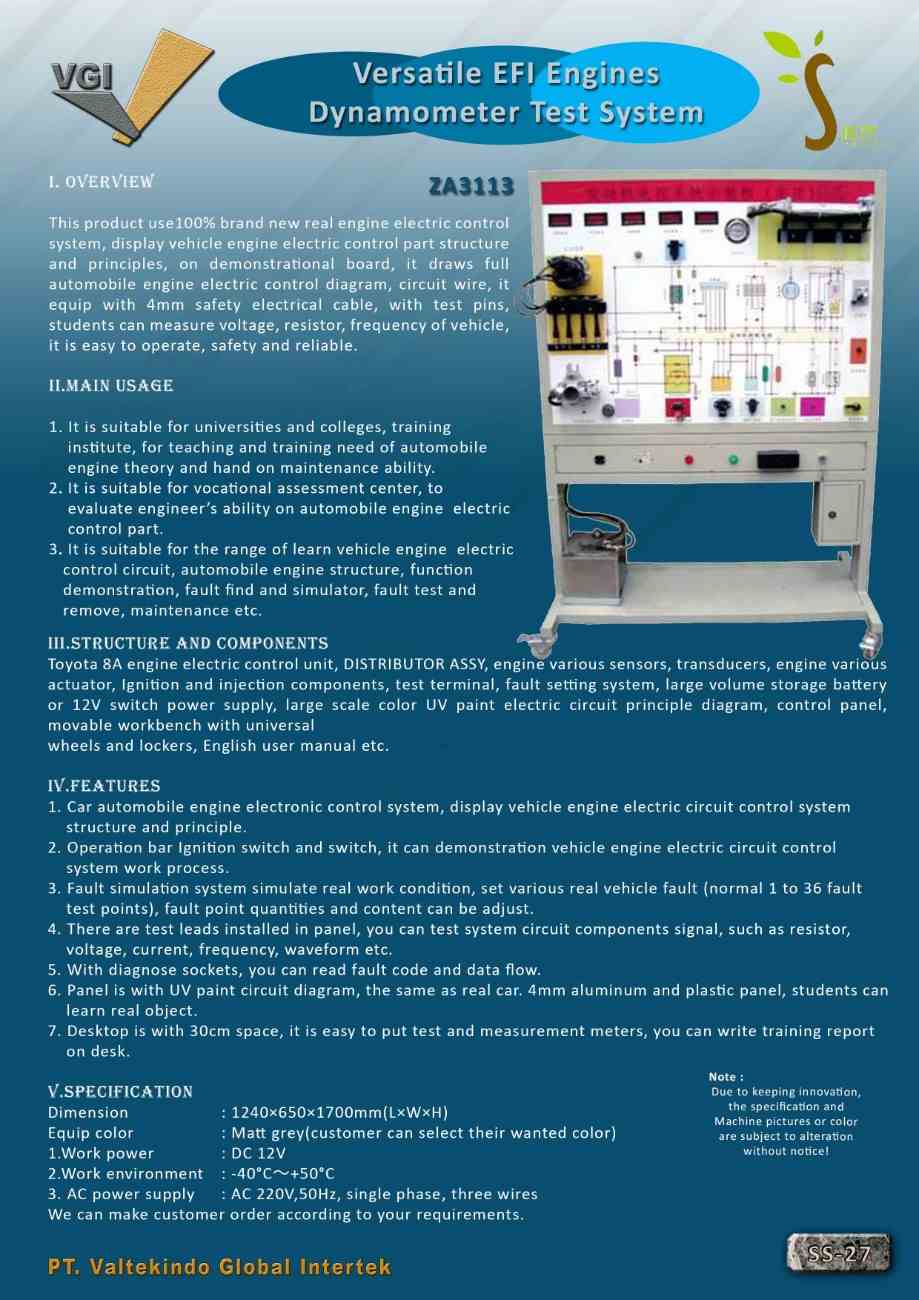

Versatile EFI System Engine Testing Tool for Comprehensive Diagnostics and Learning

DESCRIPTION / TECHNICAL SPECIFICATIONS

Enter a new era of automotive education with our Versatile Electronic Fuel Injection (EFI) Engine Test System. This advanced platform features a brand new, authentic engine's electronic control system, meticulously mounted on a demonstrational board. Every detail, from the full-scale electric circuit diagram to vital components like the ECU, distributor assembly, various sensors, and actuators, is presented with clarity and structure. This allows students and instructors to seamlessly transition from textbook theory to a practical, in-depth understanding of the architecture and operating principles of modern EFI systems.

This tool is an integrated diagnostic powerhouse, engineered to hone analytical and problem-solving skills. Equipped with an industry-standard diagnostic socket, users can connect a scan tool to read fault codes and view live data flow. Furthermore, the panel is outfitted with integrated test points that enable the measurement of crucial signals such as voltage, resistance, current, frequency, and even waveforms using an oscilloscope. This provides a direct, hands-on experience equivalent to working in a state-of-the-art workshop.

The crowning feature of this test system is its highly comprehensive fault simulation module, capable of activating up to 36 different types of malfunctions. Instructors can effortlessly simulate a wide array of real-world problems, from failed sensors to actuator issues, challenging students to apply their knowledge in realistic scenarios. Built upon a sturdy, mobile workbench, this all-in-one platform is an essential investment for universities, colleges, and vocational training centers committed to producing elite automotive technicians who are prepared for the complexities of current and future vehicle technology.
