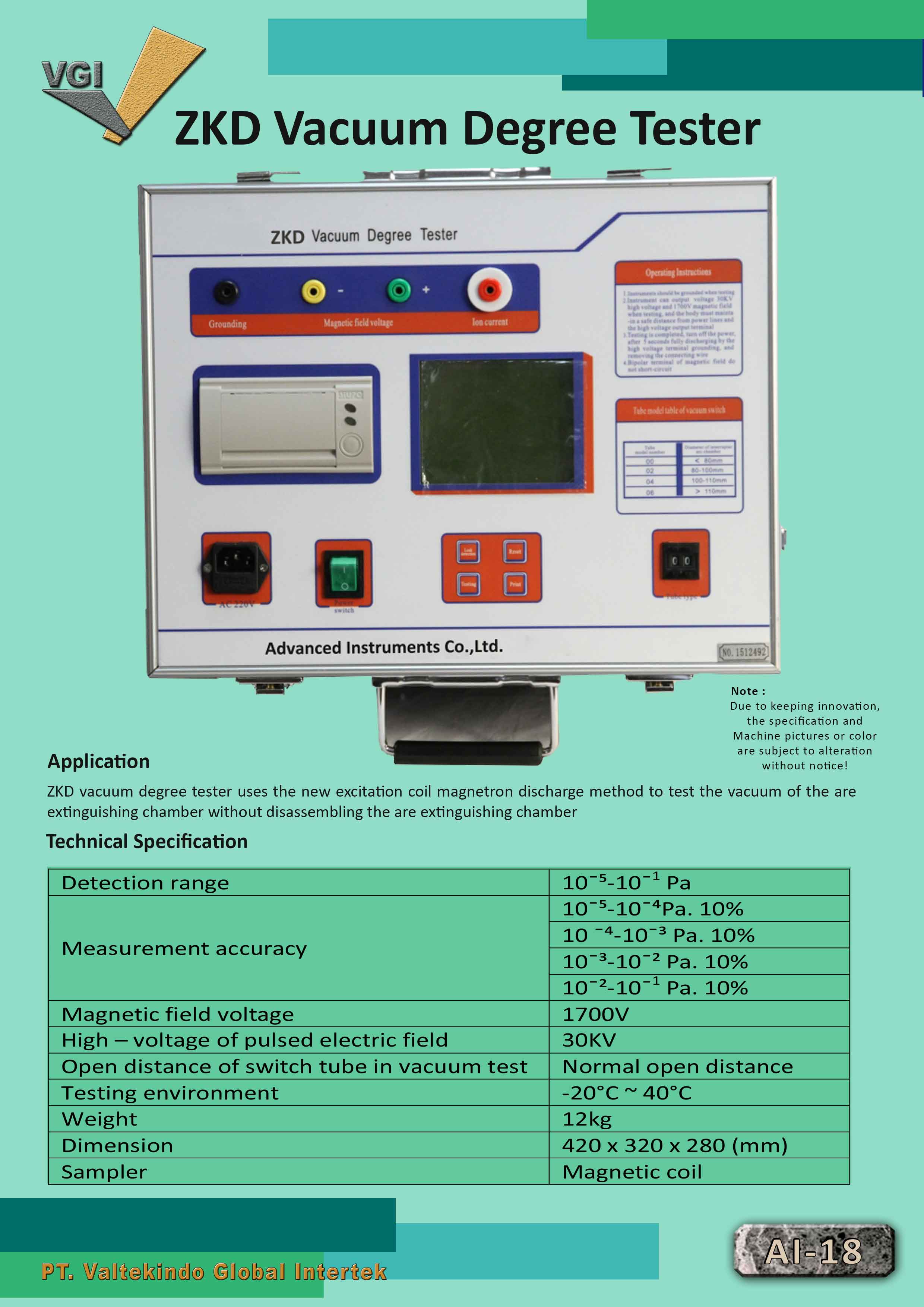

Vacuum Degree Tester
Click on the image to enlarge
FEATURE
DESCRIPTION / TECHNICAL SPECIFICATIONS
1.
Application
ZKD vacuum degree tester uses the new excitation coil magnetron discharge method to test the vacuum of the are extinguishing chamber without disassembling the are extinguishing chamber.
2.
Technical
Specification
|
Detection range |
10ˉâµ-10ˉ1 Pa |
|
Measurement accuracy |
10ˉâµ-10ˉâ´Pa. 10% |
|
10 ˉâ´-10ˉ³ Pa. 10% |
|
|
10ˉ³-10ˉ² Pa. 10% |
|
|
10ˉ²-10ˉ1 Pa. 10% |
|
|
Magnetic field voltage |
1700V |
|
High – voltage of pulsed electric field |
30KV |
|
Open distance of switch tube in vacuum test |
Normal open distance |
|
Testing environment |
-20°C ~ 40°C |
|
Weight |
12kg |
|
Dimension |
420 x 320 x 280 (mm) |
|
Sampler |
Magnetic coil |
