Trainer Tool for Heat Transfer Analysis & Efficiency in Domestic Refrigeration Cycles

DESCRIPTION / TECHNICAL SPECIFICATIONS

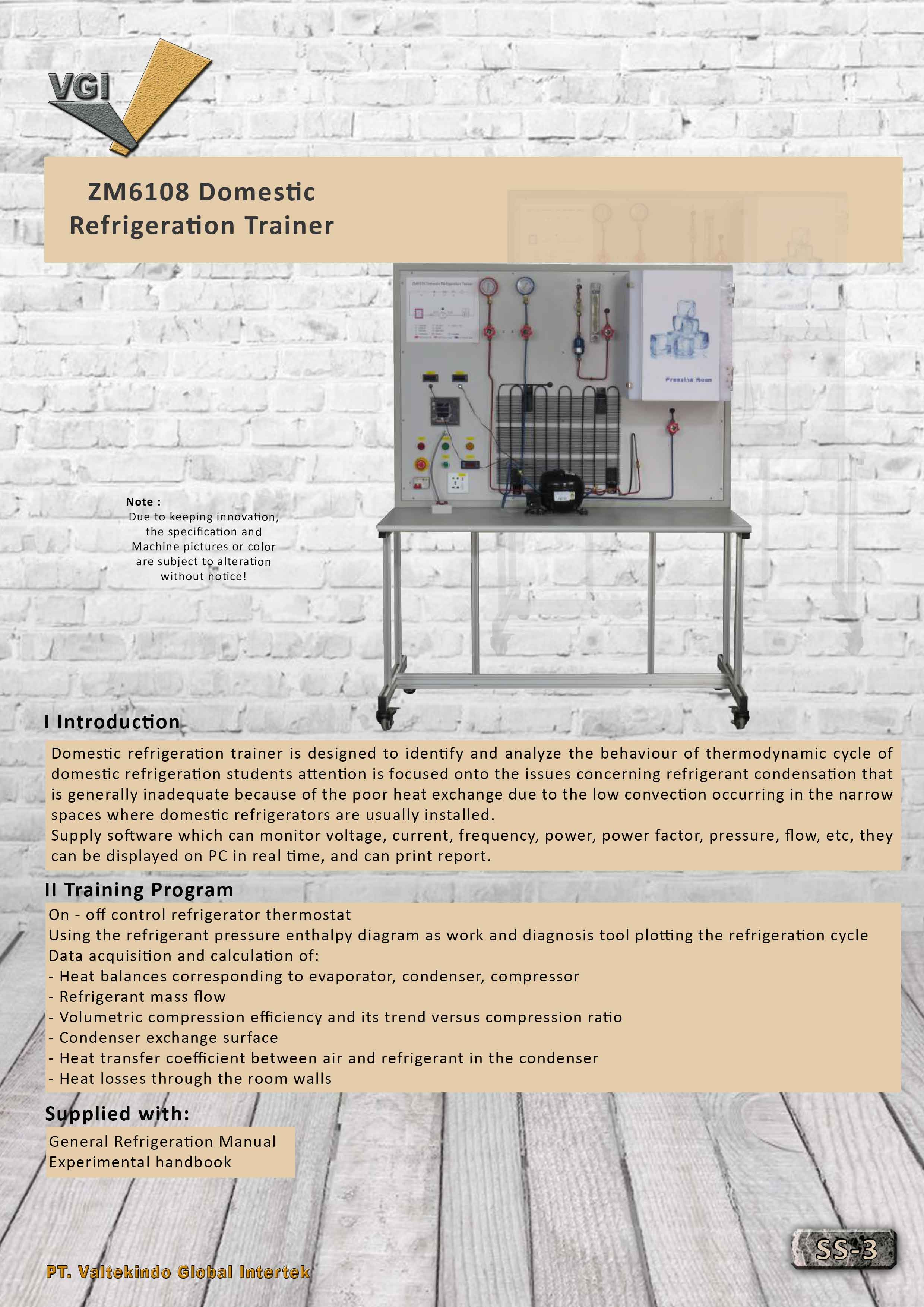

Gain a profound understanding of refrigeration fundamentals with the ZM6108 Domestic Refrigeration Trainer. This unit takes the most fundamental system—the domestic refrigeration cycle—and transforms it into a sophisticated engineering analysis laboratory. It is the perfect tool to bridge the gap between vocational training and higher education in mechanical and energy engineering.

The primary focus of the ZM6108 is on analyzing real-world problems, such as the issue of inadequate refrigerant condensation due to low convection in narrow spaces. More than just a demonstrator, this platform allows students to perform advanced engineering calculations, including heat transfer coefficients, heat losses through walls, and analysis of compressor efficiency trends versus compression ratio.

Key Features of the ZM6108 :

• In-depth Engineering Analysis : Applies advanced thermodynamic and heat transfer principles to the most recognizable refrigeration system.
• Specific Problem Case Study : Focuses on analyzing condensation issues, providing practical insight into the challenges of appliance design.
• Diagnostic & Analysis Platform : Utilizes the P-h diagram as a working tool for detailed performance diagnostics and calculations.
• Computerized Data Acquisition : Equipped with advanced software to monitor all parameters via PC, supporting all complex analytical calculations.
• Ideal for Basic & Advanced Education : Suitable for vocational schools wanting to level-up, and as a fundamental practical tool for thermodynamics courses in polytechnics and universities

The ZM6108 proves that to learn complex engineering concepts, one can start with the simplest system closest to us.
