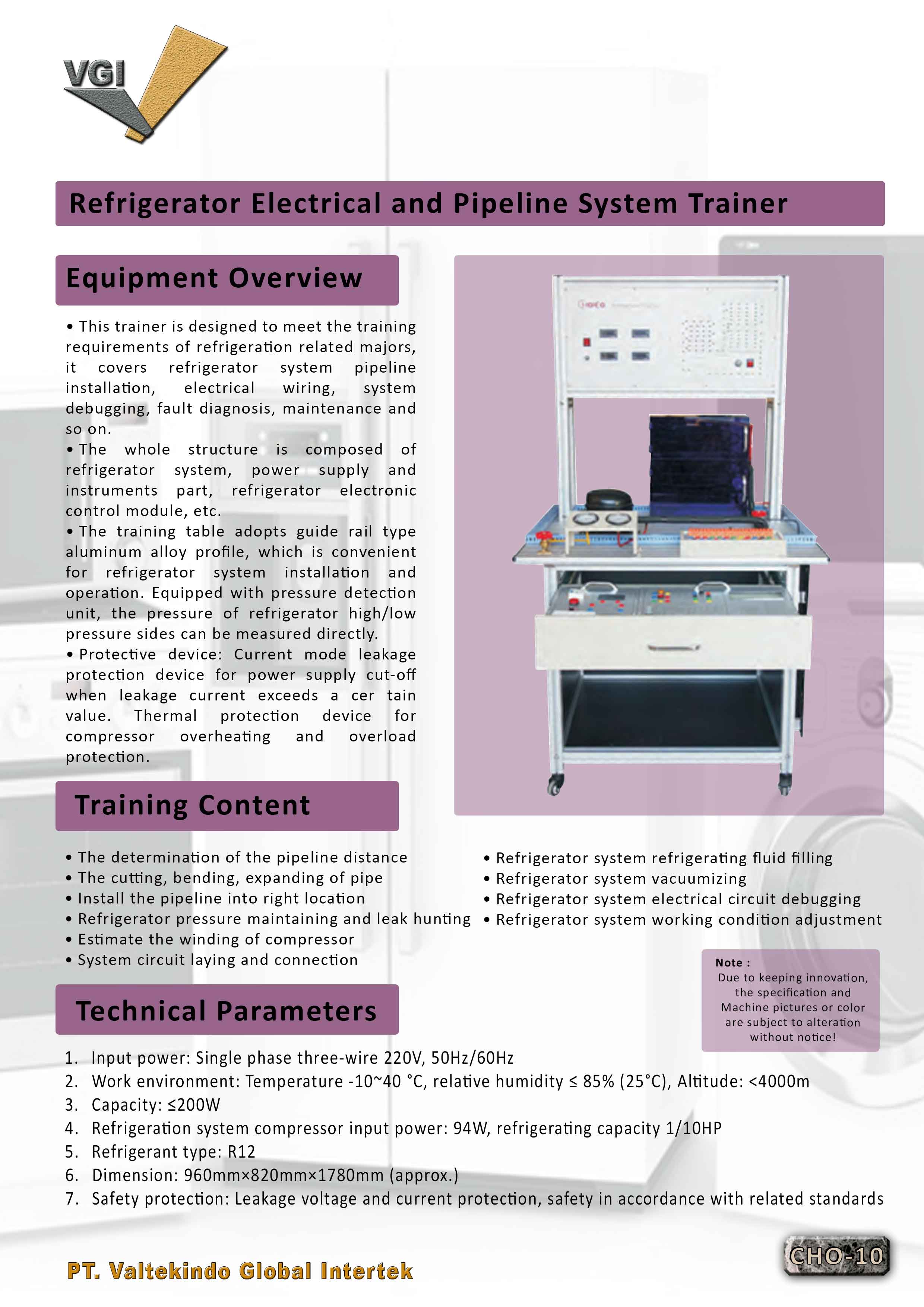

Trainer Test Equipment for Diagnosing Damage to Electrical Systems and Refrigerator Pipes

DESCRIPTION / TECHNICAL SPECIFICATIONS

Deliver a comprehensive learning experience in the field of refrigeration engineering with the refrigerator electrical and pipeline system training unit. This advanced trainer is specifically designed to meet the in depth training requirements of various refrigeration majors, covering every vital aspect from pipeline system installation, electrical wiring, system debugging, fault diagnosis, to routine maintenance. It is a complete solution that transforms complex theory into practice that can be seen, touched, and understood directly, empowering students and technicians with industry ready skills.

The core structure of this equipment consists of a functional refrigeration system, a safe power supply unit, and a modern electronic control module. The training table adopts a guide rail type aluminum alloy profile, an intelligent design that provides exceptional ease and flexibility during system installation and operation. Equipped with integrated pressure gauges, users can directly monitor and measure the pressure on the low and high sides of the circuit. Advanced protective features are also embedded, such as a current leakage protection device that automatically cuts off power and a thermal protection device to prevent compressor overheating, ensuring maximum safety during training sessions.

The training content provided is highly practical and relevant to daily work challenges. Participants will learn fundamental skills such as determining the ideal pipeline distance, as well as techniques for cutting, bending, and expanding pipes. They will practice installing the pipeline in the correct location, performing leak hunting and maintenance on the piping system, and estimating the winding condition of the compressor. Furthermore, the training covers crucial processes like refrigerant fluid filling, system vacuumizing, electrical circuit debugging, and adjusting the refrigerator's working conditions for optimal performance.

Engineered to be a reliable asset in any training center, this unit is designed with robust technical specifications. With an efficient power capacity and the use of industry standard refrigerant, this equipment replicates the real working conditions of a refrigerator. Its compact dimensions ensure easy integration into various workspaces, whether in a school laboratory or a training workshop. Its multi layered safety features, from voltage leakage protection to safety in circuit connections, make it the premier choice for institutions that prioritize a learning environment that is safe, effective, and compliant with global industry standards.
