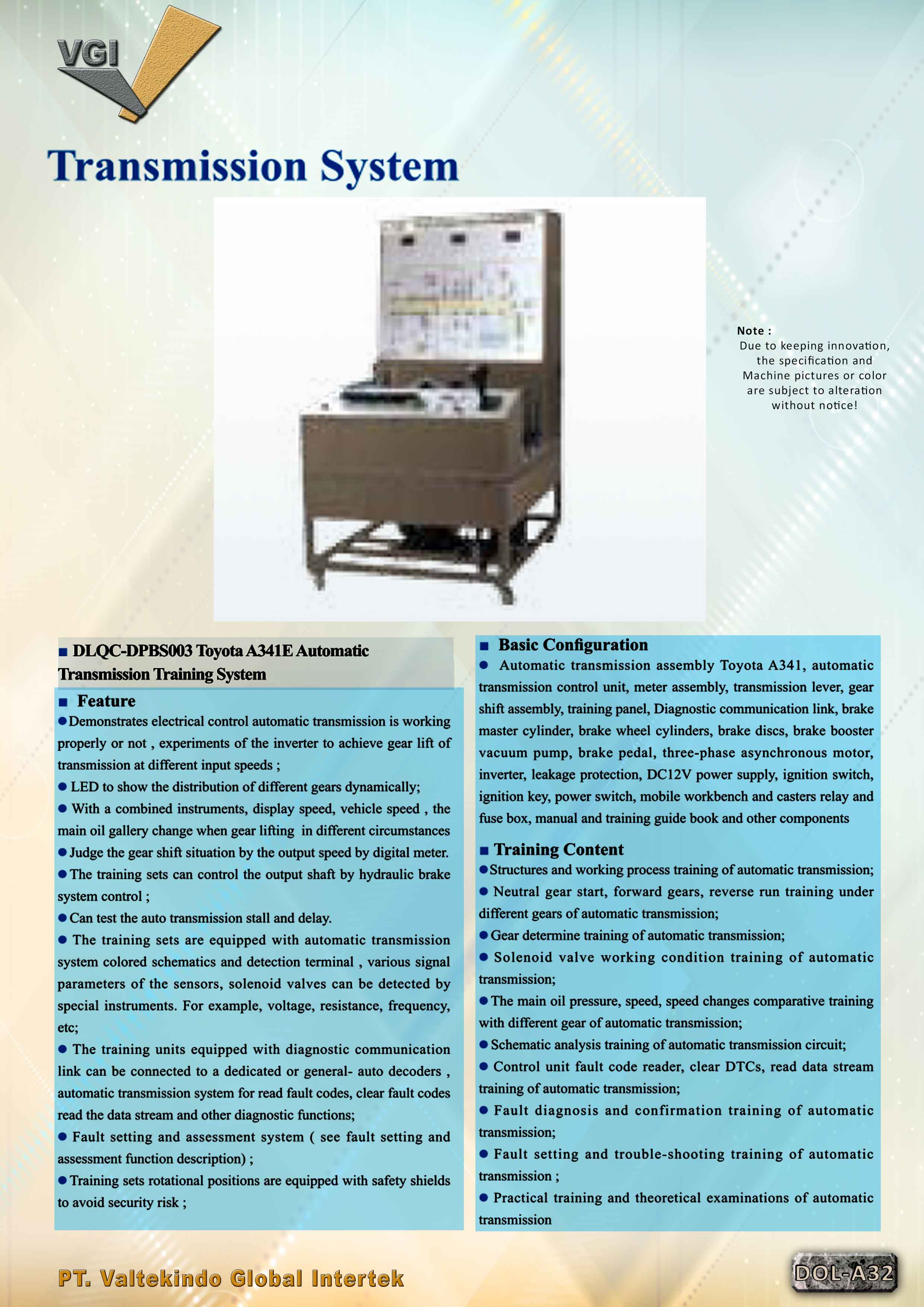

Toyota A34IE Automatic Transmission Training Set

DESCRIPTION / TECHNICAL SPECIFICATIONS

Ø  Feature

·       Demonstrate electrical control automatic transmission is working properly or not, experiments of the inverter to achieve gear lift of transmission at different input speeds.

·       LED to show the distribution of different gears dynamically;

·       With a combined instruments, display speed, vehicle speed, the main oil gallery change when gear lifting in different circumstances

·       Judge the gear shift situation by the output speed by digital meter

·       The training sets can control the output shaft by hydraulic brake system control;

·       Can test the auto transmission stall and delay.

·       The training sets are equipped with automatic transmission system colored schematics and detection terminal, various signal parameters of the sensors, solenoid valves can be detected by special instruments .For examples ,voltage, resistance, frequency. Etc.

·       The training units equipped with diagnostic communication link can be connected to a dedicated or general-auto decoders, automatic transmission system for read fault codes, clear fault codes read data stream and other diagnostic functions;

·       Fault setting and assessment system (see fault setting and assessment function description );

·       Training sets rotational positions area equipped with safety shields to avoid security risk;

Ø  Basic Configuration

·       Automatic transmission assembly Toyota A341, automatic transmission control unit, meter assembly, transmission lever, gear shift assembly, training panel, Diagnostic communication link, brake master cylinder, brake wheel cylinder, brake discs, brake booster vacuum pump, brake pedal, three-phase asynchronous motor, inverter, leakage protection, DC12V power supply, ignition switch, ignition key, power switch, mobile work bench and casters relay and fuse box, manual and training guide book and other components.

Ø  Training Content

·       Structure and working process training of automatic transmission;

·       Neutral gear start, forward gears, reverse run training under different gears of automatic transmission;

·       The main oil pressure, speed, speed changes comparative training with different gear of automatic transmission;

·       Schematics analysis training of automatic transmission circuit;

·       Control unit fault code reader, clear DTCs, read data stream training of automatic transmission;

·       Fault diagnostic and confirmation training of automatic transmission;

·       Fault setting and trouble-shooting training of automatic transmission;

·       Practical Training and theoretical examinations of automatic transmission;
