The Most Comprehensive Generator Set Dimension Guide Precision Placement Solutions for Engine Room Optimization

DESCRIPTION / TECHNICAL SPECIFICATIONS

Ensuring a seamless integration between power generation units and available space is a crucial step for every large scale industrial and commercial facility. Our dimensional specification guide provides technical certainty for contractors and consultants in designing safe and efficient engine rooms. Our generator units are available in two primary variants tailored to your work environment needs: the standard open style for enclosed rooms and the specialized soundproof style for areas prioritizing noise reduction.

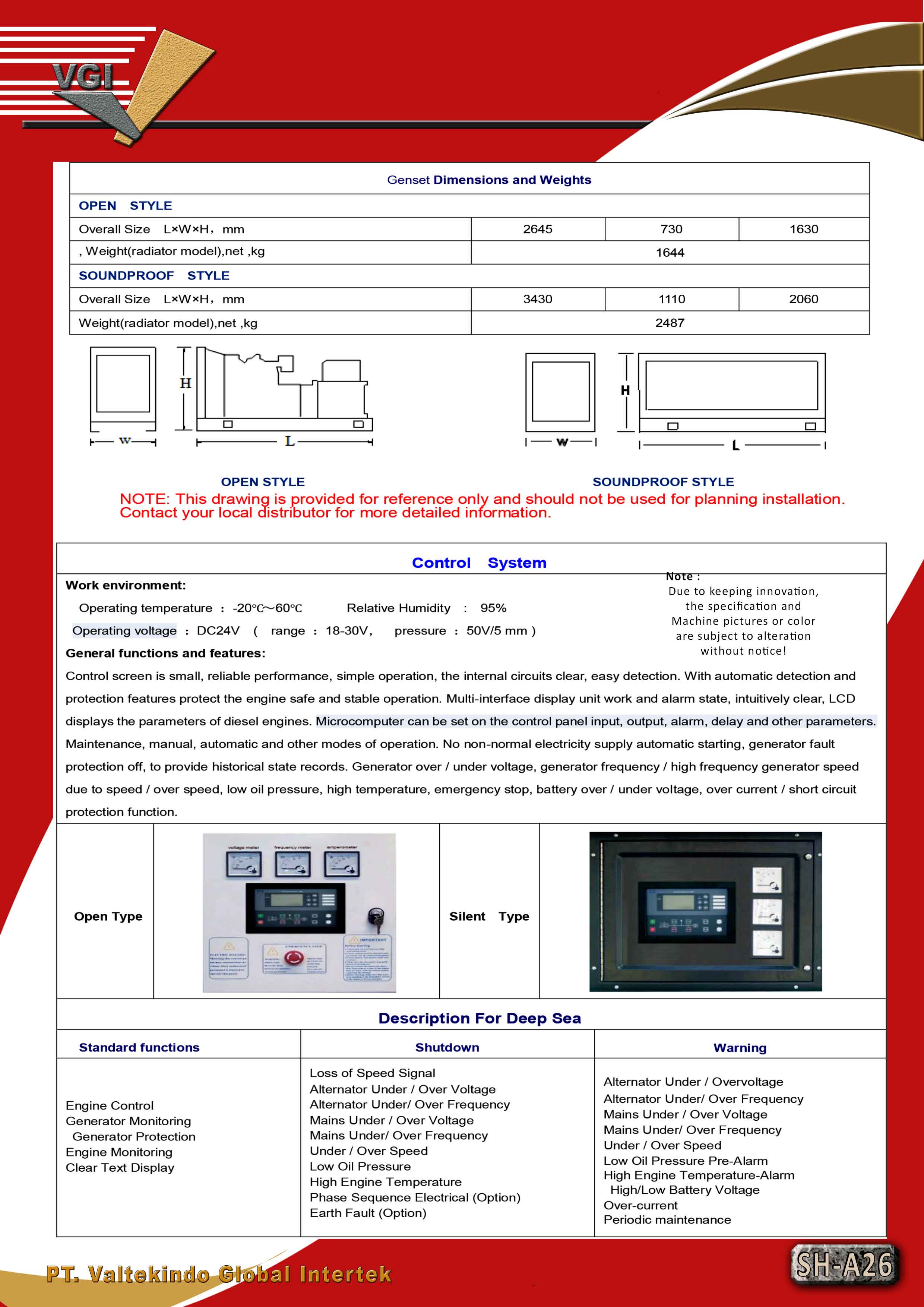

For the standard open style, the unit is designed to be highly compact with a length of approximately 2645 mm, width of 730 mm, and height of 1630 mm, with a net weight of 1644 kg. Meanwhile, for those requiring maximum weather protection and sound attenuation, the soundproof variant features larger dimensions: a length of 3430 mm, width of 1110 mm, and height of 2060 mm, with a total system weight of 2487 kg. In depth knowledge of these dimensions allows for optimal ventilation system planning, where the engine room must have dry air circulation, remain flood free, and provide sufficient space for routine repair and maintenance.

Precise installation planning also involves preparing a robust foundation, utilizing either reinforced concrete with a minimum C15 grade or a flat panel base according to the building type. With integrated intelligent control systems, each unit can be monitored in real time for vital parameters such as oil pressure, water temperature, and battery voltage stability. By utilizing accurate dimension and weight data, you can guarantee safe and stable generator set operations while significantly extending the service life of your energy investment assets.
