Technical Specifications of Heavy Duty Auto Copy Shaping Machine: Maximum Power for Large-Scale Production

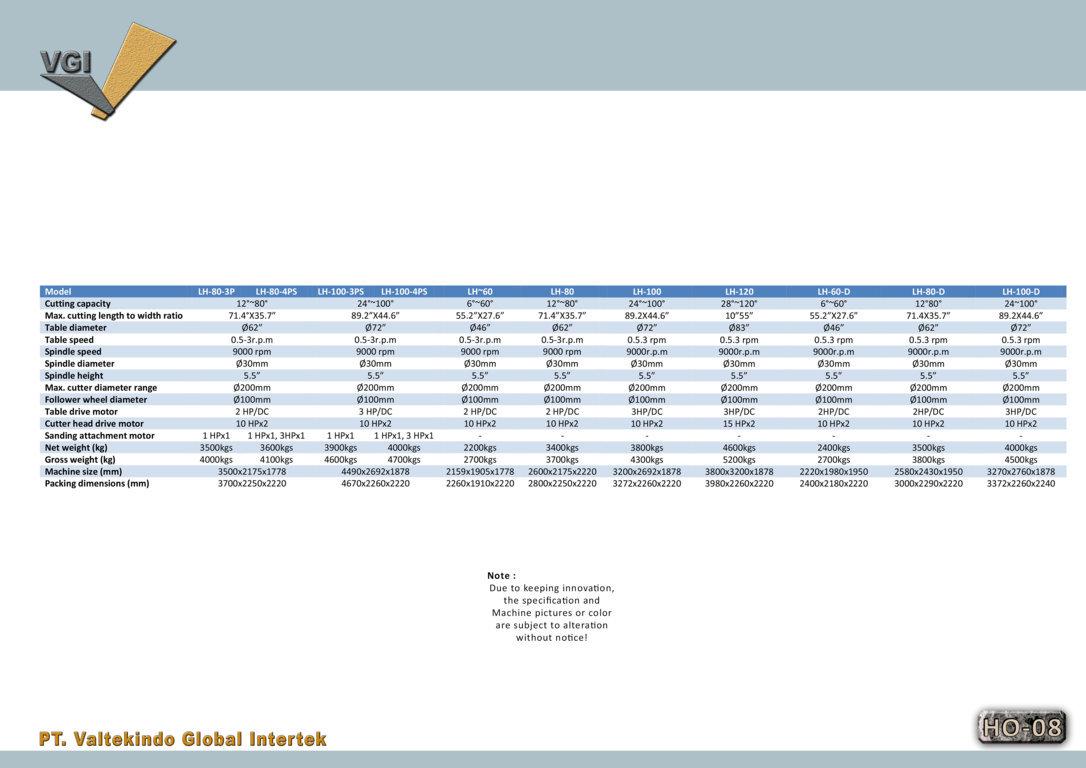

DESCRIPTION / TECHNICAL SPECIFICATIONS

Solidify your market dominance with the Heavy Duty Auto Copy Shaping Machine line, heavy-duty industrial equipment specifically engineered to withstand the most intensive mass production demands. This product line offers an exceptionally broad working capacity, ranging from small diameters up to a massive 120-inch reach. Built with a massive and highly stable mechanical structure, these machines are capable of processing various materials including solid wood, plywood, acrylic, and bent wood with pinpoint accuracy even at high operating speeds.

The core strength of this machinery lies in its powerful cutter head drive motor configurations, ranging from 10 HP to 15 HP per spindle, maintaining a stable 9000 rpm rotation to deliver a perfectly smooth surface finish. The control system is highly flexible, featuring adjustable table speeds between 0.5 and 3 rpm, allowing operators to optimize speed ratios based on the complexity of the workpiece shape. High-level safety integration, such as patented dust splash guard doors and optional automatic sanding attachments, makes these machines the ultimate solution for industries prioritizing speed, workspace cleanliness, and premium finishing quality within a single efficient production line.
