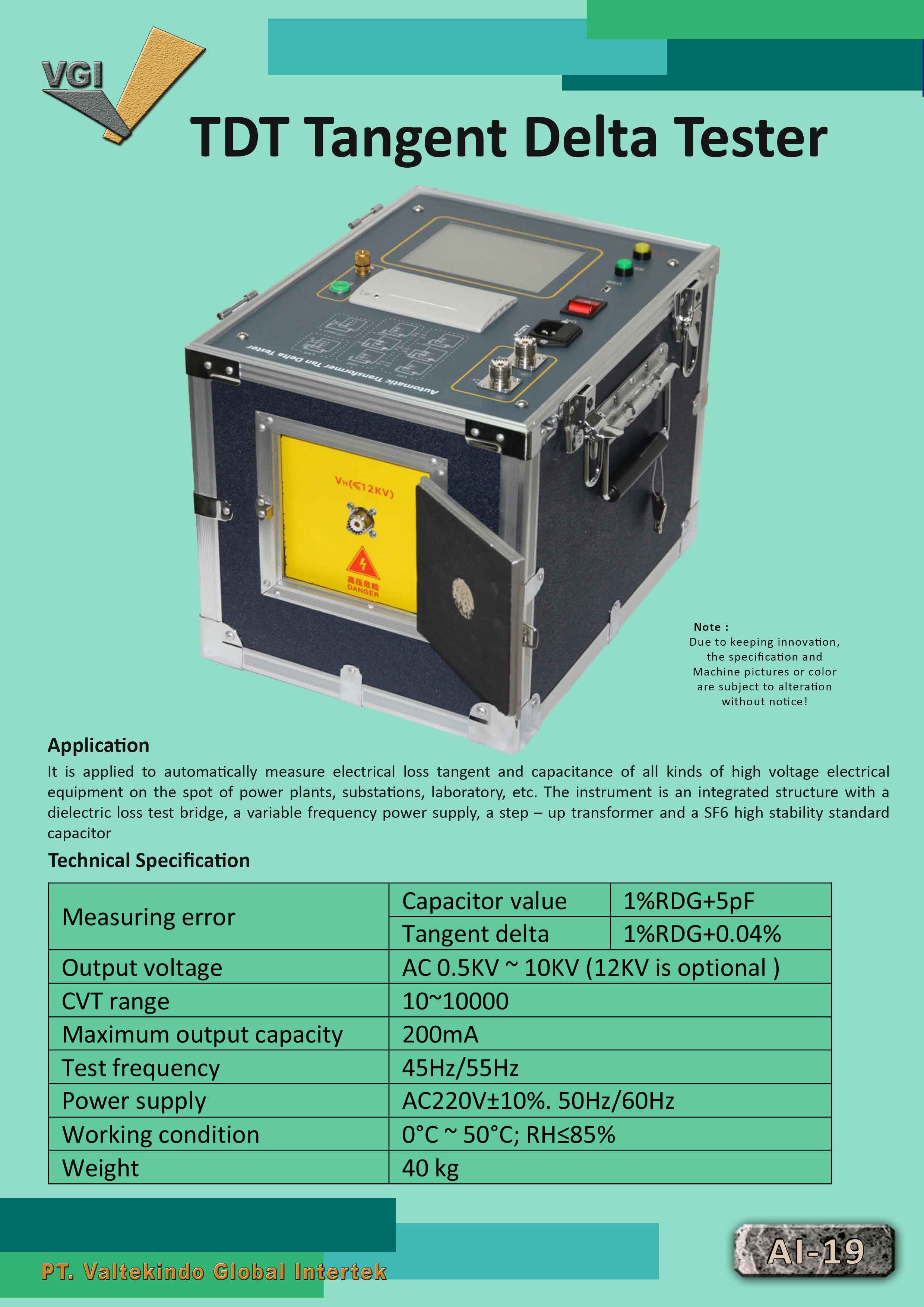

Tangent Delta Tester
Click on the image to enlarge
FEATURE
DESCRIPTION / TECHNICAL SPECIFICATIONS
1.
Application
It is applied to automatically measure electrical loss tangent and capacitance of all kinds of high voltage electrical equipment on the spot of power plants, substations, laboratory, etc. The instrument is an integrated structure with a dielectric loss test bridge, a variable frequency power supply, a step – up transformer and a SF6 high stability standard capacitor.
2.
Technical
Specification
|
Measuring error |
Capacitor value |
1%RDG+5pF |
|
Tangent delta |
1%RDG+0.04% |
|
|
Output voltage |
AC 0.5KV ~ 10KV (12KV is optional ) |
|
|
CVT range |
10~10000 |
|
|
Maximum output capacity |
200mA |
|
|
Test frequency |
45Hz/55Hz |
|
|
Power supply |
AC220V±10%. 50Hz/60Hz |
|
|
Working condition |
0°C ~ 50°C; RH≤85% |
|
|
Weight |
40 kg |
|
