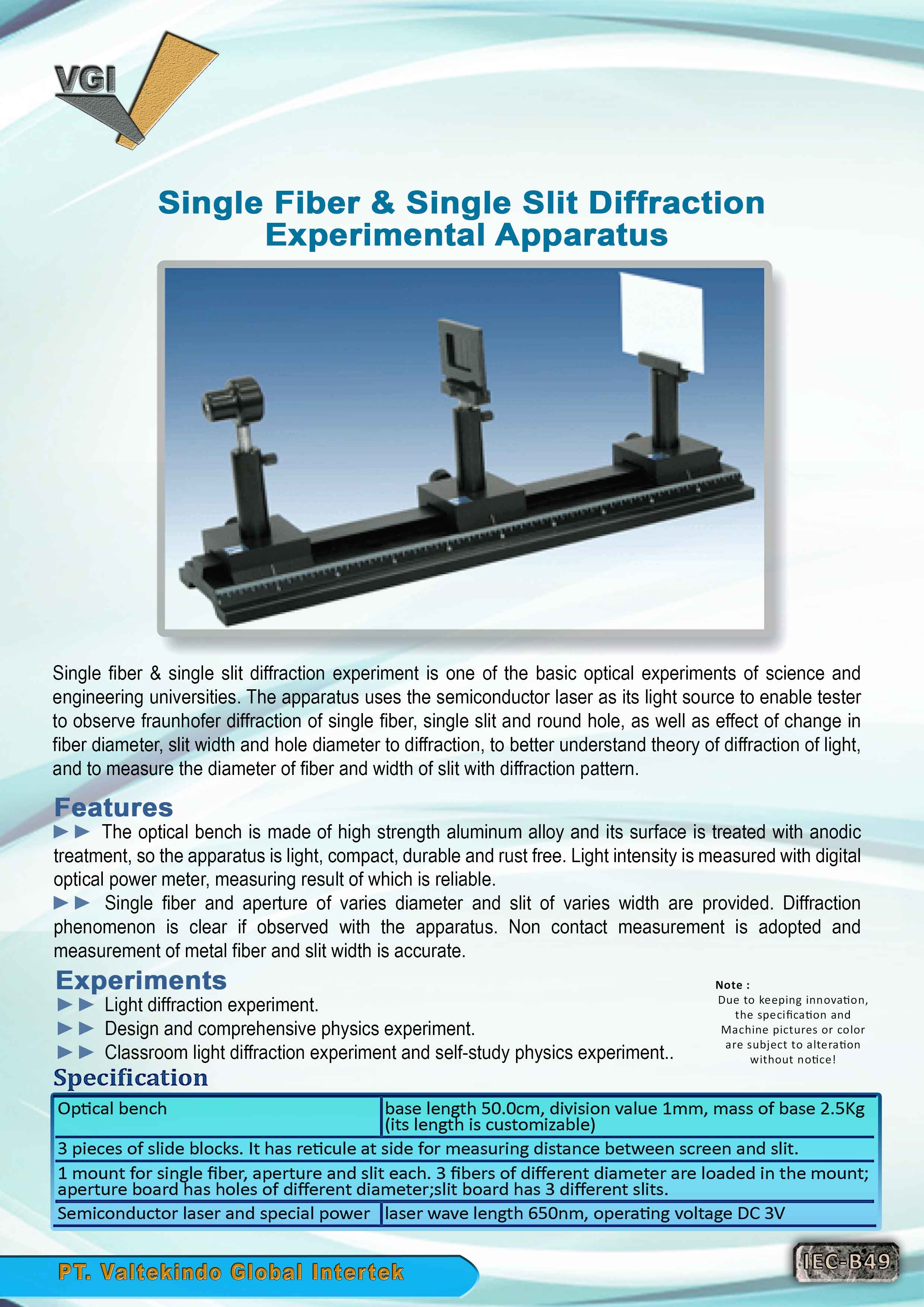

Single Fiber & Single Slit Diffraction Experiment Apparatus

DESCRIPTION / TECHNICAL SPECIFICATIONS

Introducing a fundamental experimental apparatus designed to bring the abstract concepts of wave optics into clear and measurable observation in the laboratory This instrument is specifically built for the demonstration and quantitative analysis of Fraunhofer diffraction a core phenomenon in university physics and engineering curricula By using a semiconductor laser as a coherent light source students can directly observe and deeply understand the theory of light diffraction

Experimental flexibility is at the heart of this device's design The apparatus comes equipped with a variety of components for comparative study including single fibers single slits and round holes of various diameters and widths Students can easily swap these components to investigate how changes in the aperture's geometry and dimensions affect the resulting diffraction pattern This clear visual feedback reinforces their theoretical understanding of how light interacts with small objects

More than just a qualitative demonstration tool this apparatus is an accurate quantitative measurement system Adopting a non-contact measurement method students can analyze the diffraction pattern formed on a screen to determine the width of the slit or the diameter of the metal fiber with high precision The use of a precision optical bench with a side reticule scale and a digital optical power meter to measure light intensity ensures reliable and repeatable measurement results

Built for repeated use in academic environments every component is designed for durability and ease of use The optical bench is made of high-strength aluminum alloy with an anodic treatment making it light compact sturdy and rust-free Its thoughtful design makes it suitable for various learning scenarios from guided classroom experiments and comprehensive physics projects to even independent self-study sessions by students

Overall this diffraction experimental apparatus is an essential investment for any educational institution serious about providing hands-on learning experiences in physical optics It empowers students to move beyond memorizing formulas to truly understanding the phenomenon of diffraction through direct observation accurate measurement and meaningful data analysis making it an invaluable tool for every science and engineering laboratory
