Selling Industrial Rubber Slab Cutter Machine – Efficient Crusher with 2–4 Tons/Hour Capacity
_compressed_84521.jpg)
Click on the image to enlarge
FEATURE
DESCRIPTION / TECHNICAL SPECIFICATIONS
💡 Valtekindo's rubber slab cutter machine! Stainless steel construction, low power consumption, uniform output. Perfect for tire factories & rubber recycling. ✅ 1-year warranty + free technical consultation!
🏆 Rubber Slab Cutter Machine: Fast Processing of Raw Rubber into Ready-to-Use Pieces!
Specially designed for crushing rubber slabs (raw/recycled) with maximum efficiency, this machine helps you:
✅ Crush Rubber 3x Faster – Capacity up to 5 tons/hour with low power consumption.
✅ Uniform Output & No Overheating – Special steel blades + automatic cooling system.
✅ Low Maintenance – Durable stainless steel anti-rust design.
✅ Customizable – Adjustable output size (5mm–50mm).
💡 Why Choose Valtekindo?
-
✔️ Trusted by 50+ rubber factories in Indonesia.
-
✔️ 1-year spare parts warranty + standby technicians.
-
✔️ On-site machine demo available (terms & conditions apply).
📢 Special Offer This Month!
Get free operator training for 2 employees! Contact us now via WhatsApp or fill out the quote request form.

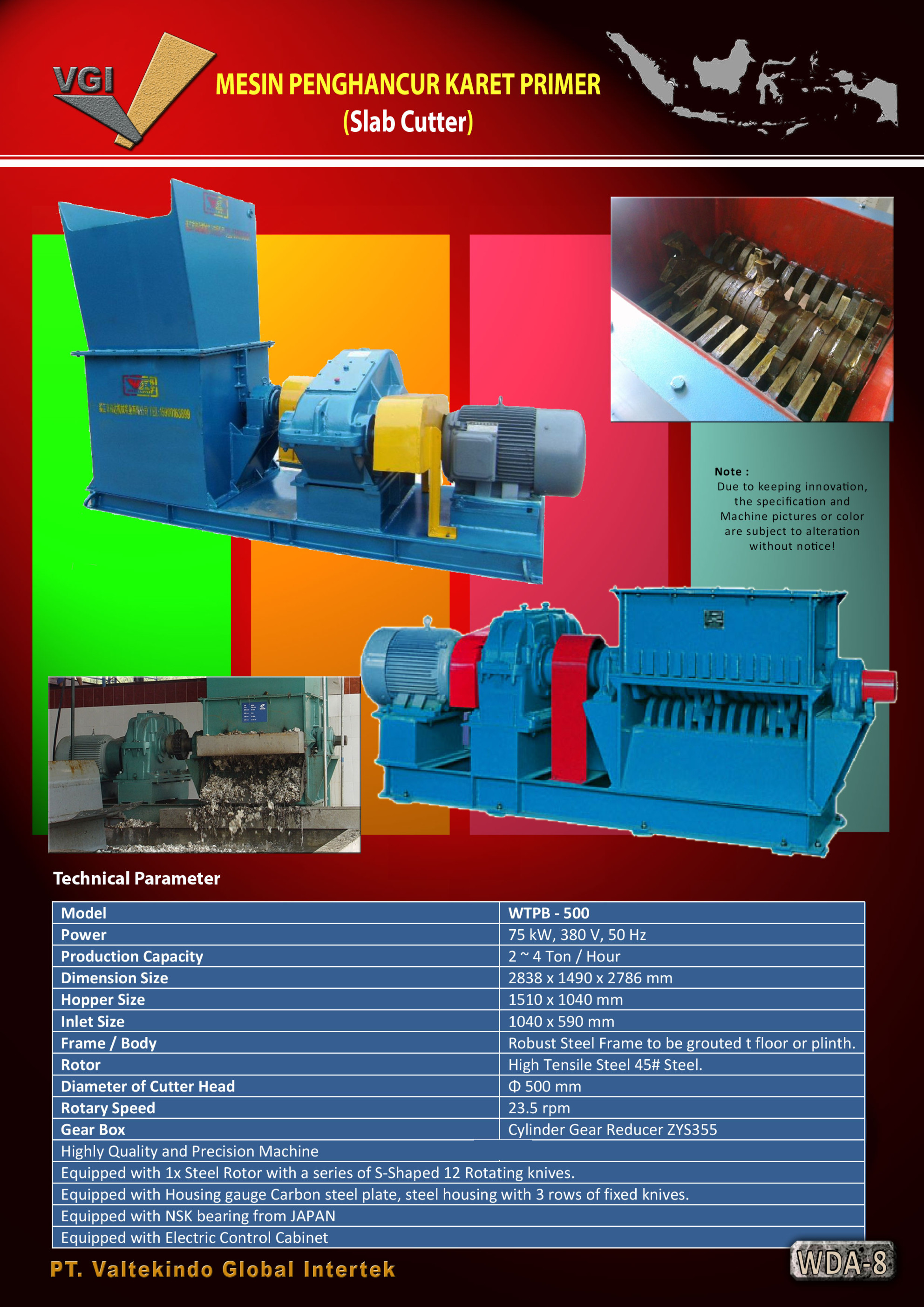

Technical Parameter
|
Model |
WTPB – 500 |
|
Power |
75 kW, 380 V, 50 Hz |
|
Production Capacity |
2 ~ 4 Ton / Hour |
|
Dimension Size |
2838 x 1490 x 2786 mm |
|
Hopper Size |
1510 x 1040 mm |
|
Inlet Size |
1040 x 590 mm |
|
Frame / Body |
Robust Steel Frame to be grouted t floor or plinth. |
|
Rotor |
High Tensile Steel 45# Steel. |
|
Diameter of Cutter Head |
Ø 500 mm |
|
Rotary Speed |
23.5 rpm |
|
Gear Box |
Cylinder Gear Reducer ZYS355 |
|
Highly Quality and Precision Machine |
|
|
Equipped with 1x Steel Rotor with a series of S – Shaped 12 Rotating knives |
|
|
Equipped with Housing gauge Carbon steel plate, steel housing with 3 rows of fixed knives. |
|
|
Equipped with NSK bearing from JAPAN |
|
|
Equipped with Electric Control Cabinet |
|

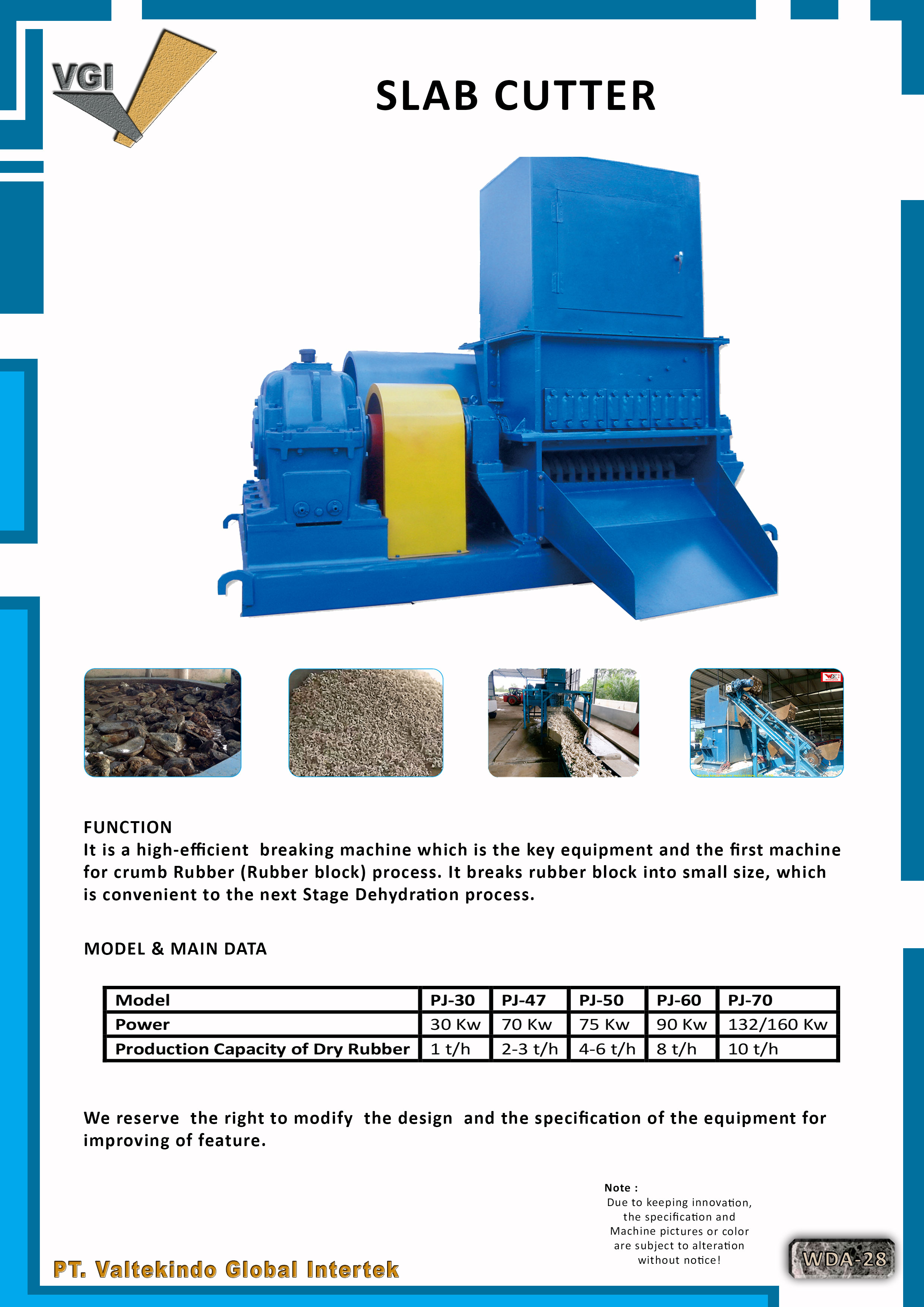

MODEL & MAIN DATA
|
PJ-30 |
PJ-47 |
PJ-50 |
PJ-60 |
PJ-70 |
|
|
Power |
30 kW |
70 kW |
75 kW |
90 kW |
132/160 kW |
|
Production Capacity of Dry Rubber |
1 t/h |
2-3 t/h |
4-6 t/h |
8 t/h |
10 t/h |
