Selling Electro-Pneumatic Manipulator Training Set: A Solution for Smart Automation Lab Work

DESCRIPTION / TECHNICAL SPECIFICATIONS

In the modern industrial landscape, automated material handling systems are the backbone of production efficiency. This Electro Pneumatic Manipulator Training Set serves as a cutting-edge educational solution that simulates real-world industrial working processes. The equipment is designed to teach the integration of mechanical, pneumatic, and electronic control systems into a synchronized workflow. Featuring a robust and flexible aluminum base panel, this device is the ideal laboratory standard for vocational high schools (SMK) and technical polytechnics.

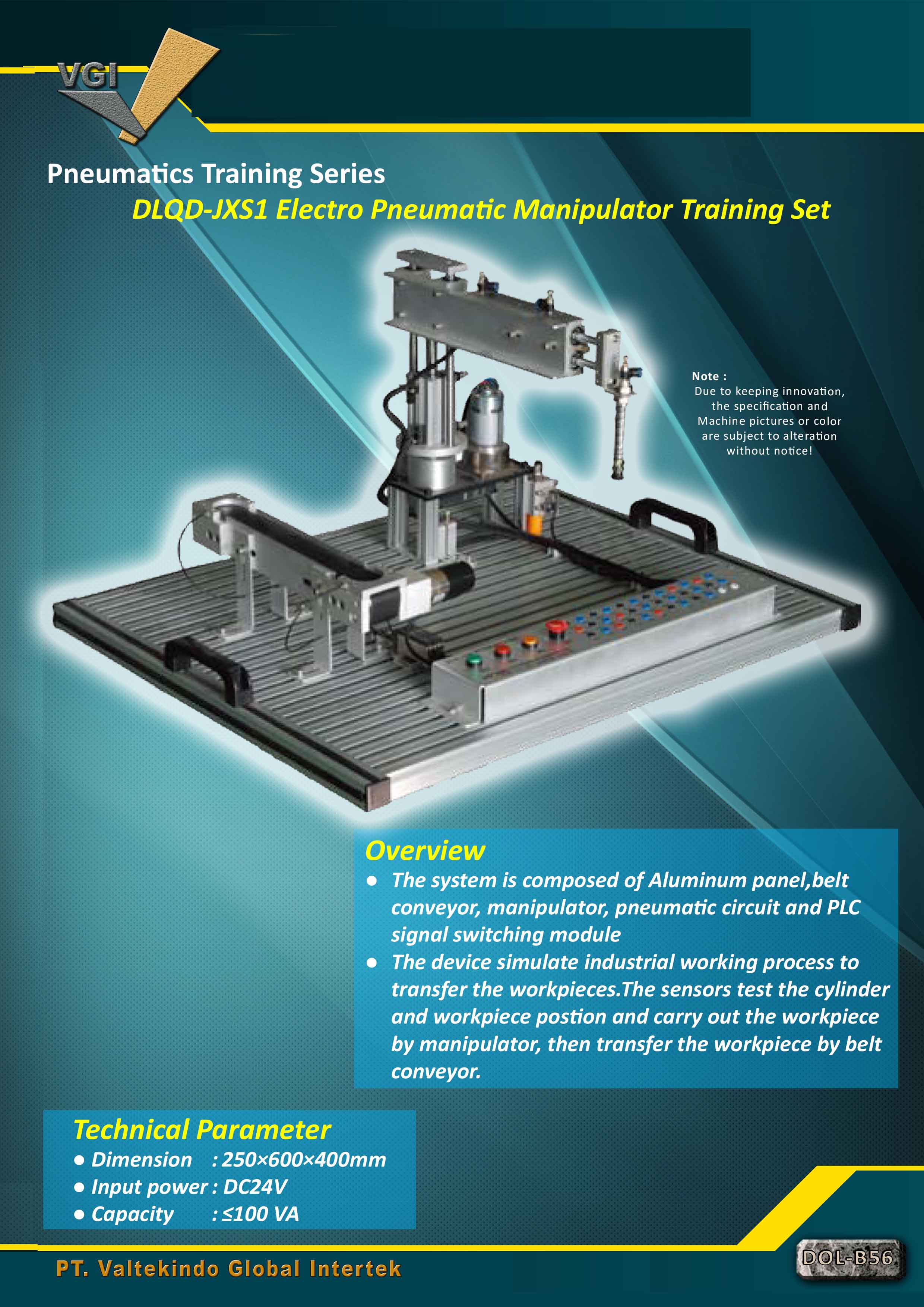

The system is composed of key components including a manipulator unit (robotic arm), a belt conveyor, pneumatic circuits, and a PLC (Programmable Logic Controller) signal switching module. The simulation process involves detecting workpiece positions using precision sensors, picking up workpieces with the pneumatic manipulator, and transferring them via the conveyor to the target destination. Through this tool, trainees can study automation logic, PLC programming, and the maintenance of pneumatic actuator systems widely used in automotive assembly and food packaging industries.

Technically, the device operates on a safe DC 24V input power, suitable for educational environments, with an efficient power capacity of less than 100 VA. Its compact dimensions (250x600x400mm) ensure easy mobility and laboratory organization. By utilizing this simulator, users gain not only theoretical understanding but also practical experience in solving technical challenges within the smart automation systems that define today's Industry 4.0 standards.
