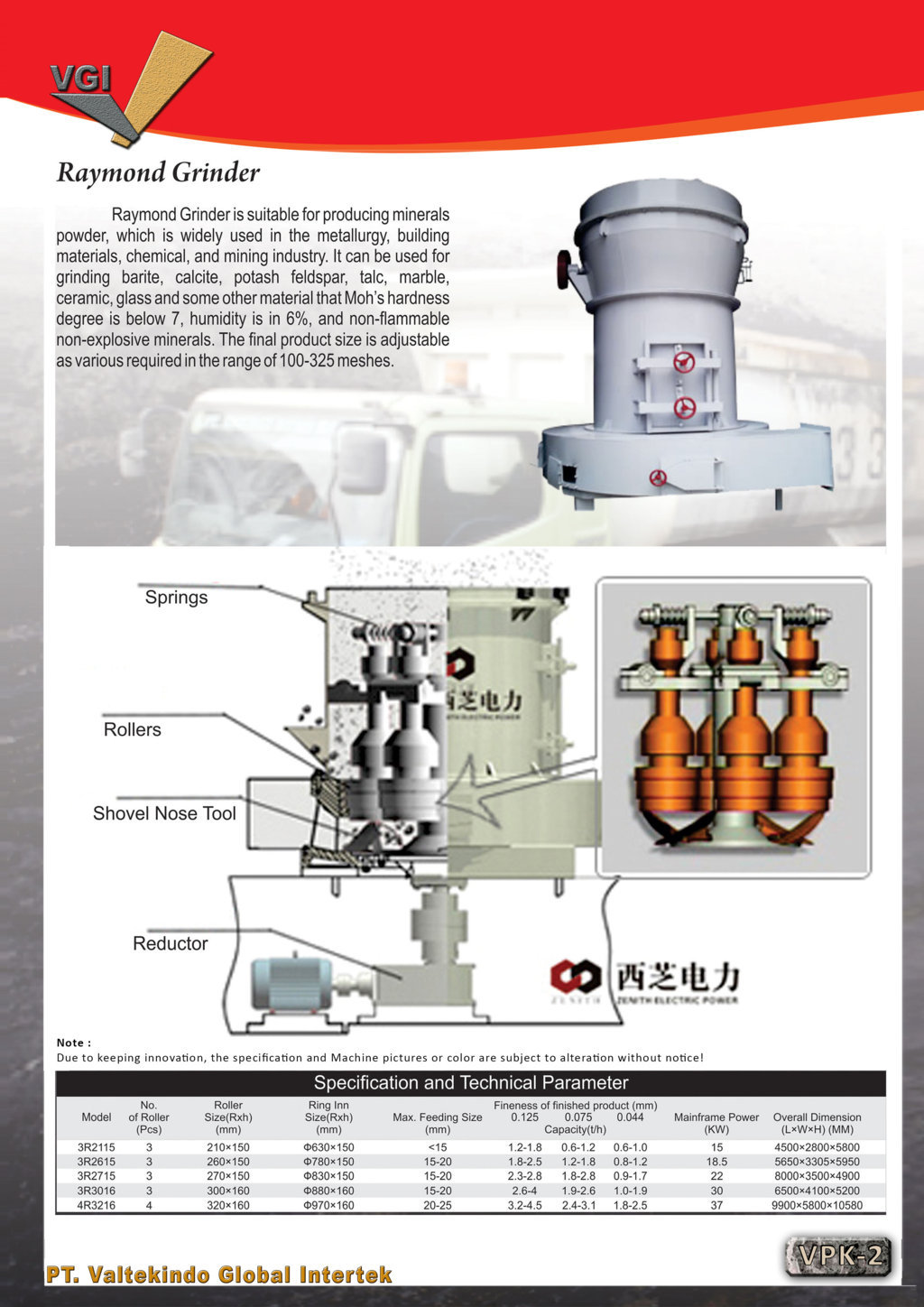

Sell Raymond Grinder – Reliable Industrial Grinding Machine with High Performance

DESCRIPTION / TECHNICAL SPECIFICATIONS

Elevate your mineral processing capabilities with our high-performance industrial grinding solution, specifically engineered for the metallurgy, construction, chemical, and mining sectors. This robust machinery is the ideal choice for pulverizing non-flammable and non-explosive minerals with a Mohs hardness below 7 and moisture content under 6%. It excels in processing diverse materials such as barite, calcite, potash feldspar, talc, marble, ceramics, and glass into ultra-fine powders.

The technical excellence of this system is driven by a sophisticated mechanical design where the main motor's force is transmitted through a gear reducer to the center axis and quincunx rack. Centrifugal force ensures that the rollers maintain maximum surface contact with the grinding ring through parallel swinging, resulting in superior crushing efficiency.

As the material is scooped by the shovel blades and ground, an integrated airflow system transports the powder to a separator at the top of the mainframe. This advanced separation process ensures that coarse particles are returned to the chamber for re-grinding, while the qualified fine powder is channeled through the discharging pipe into a cyclone collector. Offering adjustable fineness levels ranging from 100 to 325 mesh, this industrial grinder provides the precision and reliability needed to achieve consistent, high-quality output for various industrial applications.
