Sell High-Precision Laboratory Microtome 3 – Fast & Accurate Sample Cutting Solution

DESCRIPTION / TECHNICAL SPECIFICATIONS

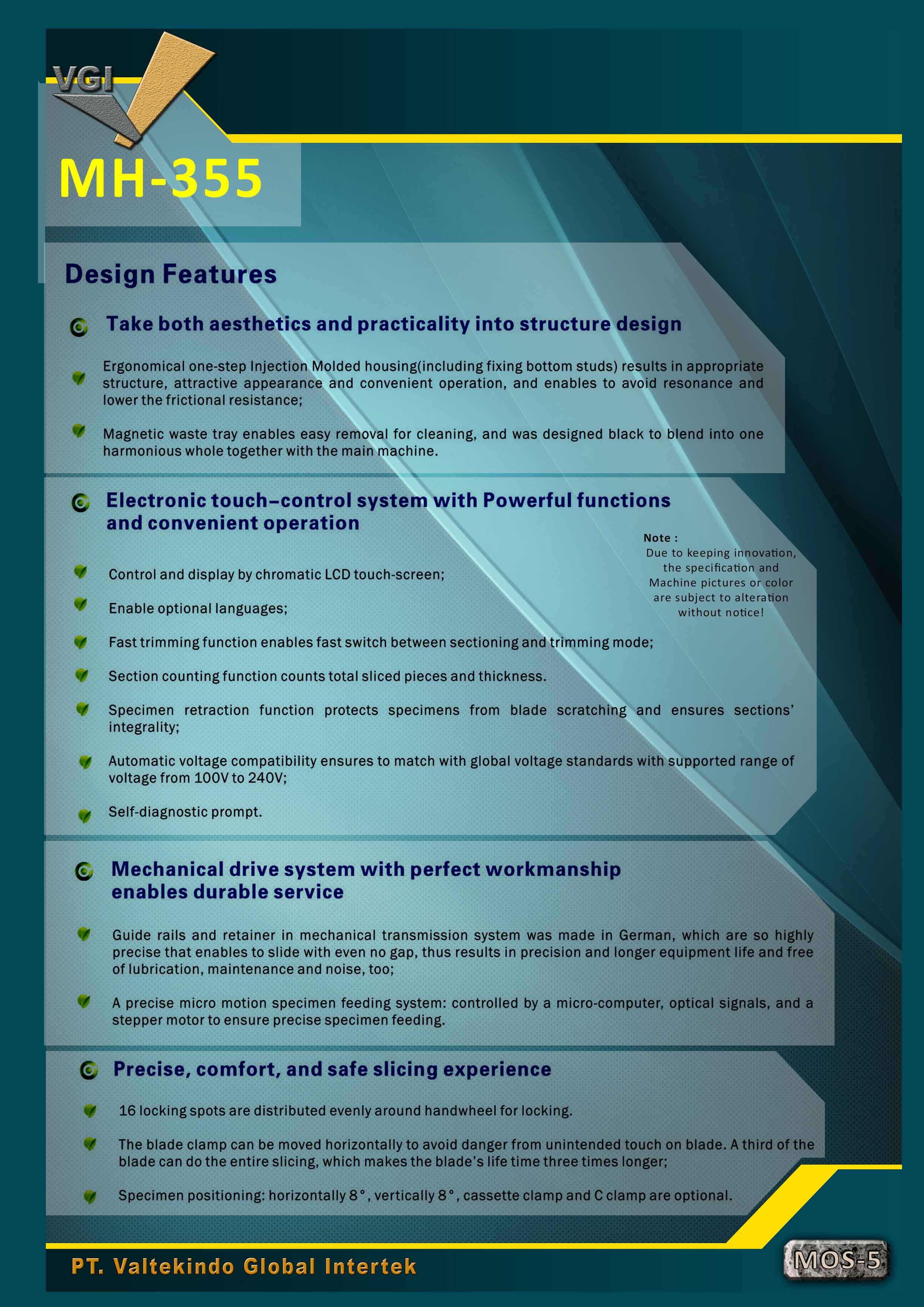

Ergonomic & Functional Design

• One-step injection molded housing reduces resonance and friction, ensuring sturdy structure and smooth operation.
• Magnetic waste tray in black for easy removal and cleaning, seamlessly blending with the main unit.

Smart Electronic Control System

• Chromatic LCD touch-screen with multi-language support for user-friendly operation.
• Key features:
  • Fast trimming for quick switching between trimming and sectioning modes.
  • Section counting to track the number and thickness of slices.
  • Specimen retraction to protect samples from damage.
  • Global voltage compatibility (100V–240V) for worldwide use.

Precision Mechanism with German Engineering

• German-made guide rails and retainers ensure smooth, gap-free movement, requiring no maintenance and offering long-lasting durability.
• Microcomputer-controlled specimen feeding system with stepper motor and optical signals for high accuracy.

Safety & User Comfort

• 16 locking points on the handwheel for maximum stability.
• Horizontal sliding blade clamp reduces accidental contact risk.
• Flexible specimen positioning: Adjustable 8° horizontally and vertically, with multiple clamp options.

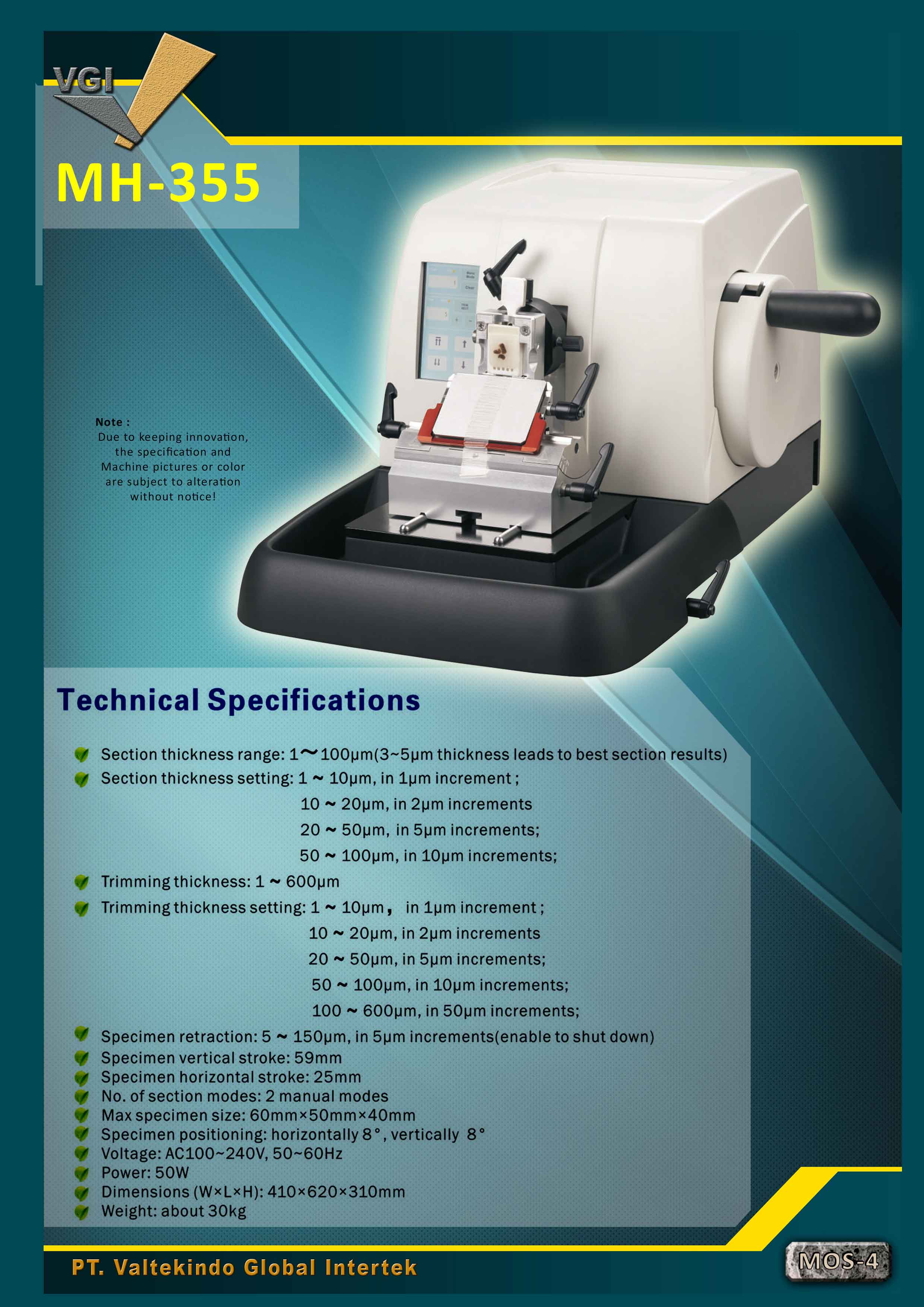

Technical Specifications

• Section thickness : 1–100μm (increment 1–10μm).
• Trimming thickness : 1–600μm (increment 1–50μm).
• Vertical stroke : 59mm
• Horizontal stroke : 25mm.
• Power : 50W (100–240V)
• Dimensions : 410×620×310mm
•  Weight : 30kg.
