Sell High-Precision Laboratory Microtome 2 β Fast & Accurate Sample Cutting Solution
DESCRIPTION / TECHNICAL SPECIFICATIONS
Discover the MH-245 Microtome by Valtekindo Global Intertek, the latest innovation in laboratory slicing technology. Engineered for high precision and maximum reliability, the MH-245 offers a smooth and comfortable slicing experience, yielding superior quality sample sections. With a section thickness range of 1−60μm and trimming capabilities of 10μm and 30μm, this instrument ensures versatility for all your research needs.

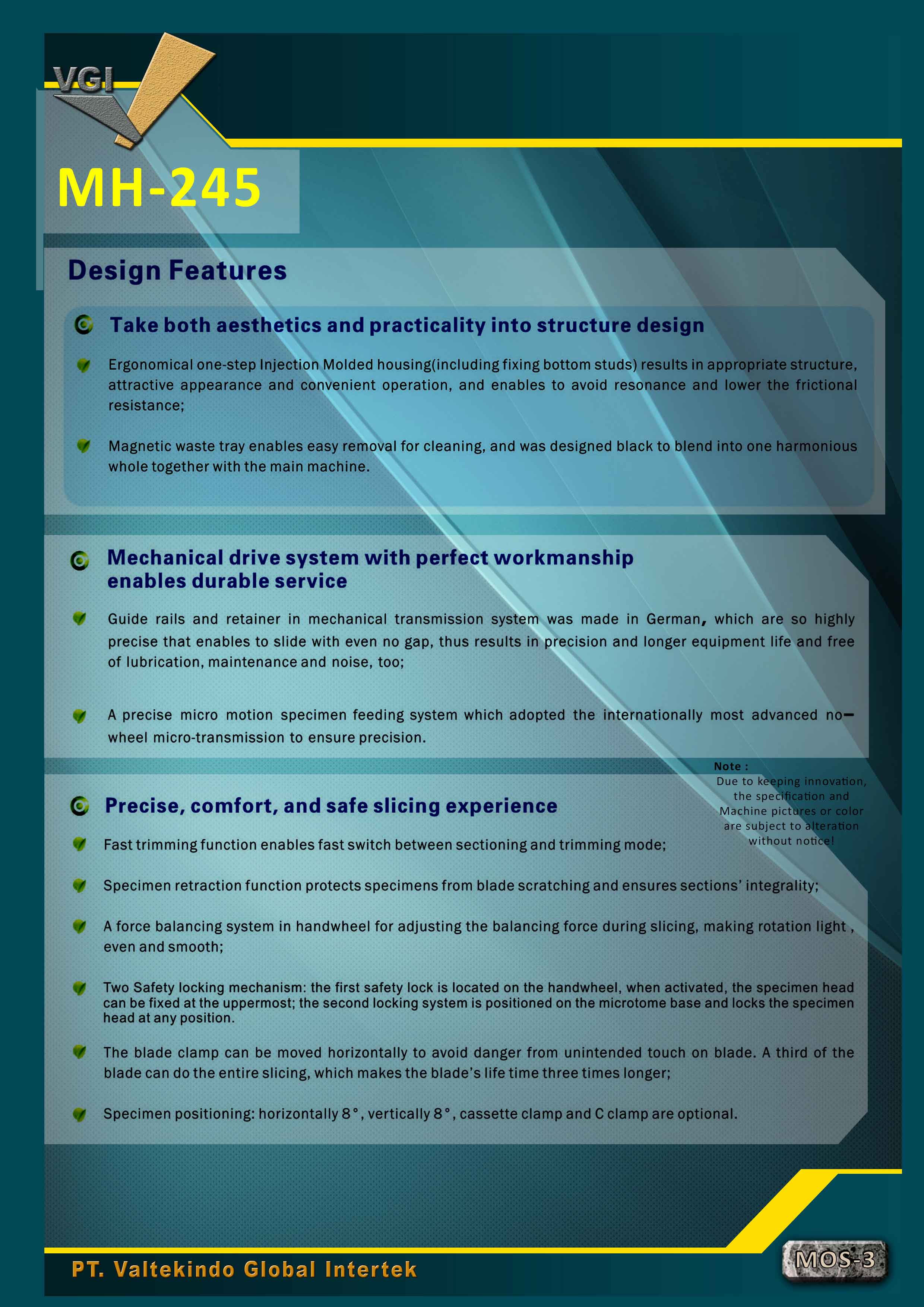

Key Features of MH-245:
- Aesthetic & Practical Design: Ergonomic one-step injection molded housing reduces resonance and friction, complemented by an easy-to-clean magnetic waste tray.
- Perfect Workmanship Mechanical Drive System: German-made guide rails and retainers ensure precise movement, minimize wear, and extend lifespan.
- Precise, Comfortable & Safe Slicing Experience: Fast trimming function for quick transitions, specimen retraction protects against scratches, and a dual safety locking mechanism for maximum stability.
- Unmatched Accuracy: Advanced micro motion specimen feeding system ensures exceptional accuracy with every cut.
Perfect for pathology, histology, and research applications, the MH-245 is a smart investment to enhance your lab's efficiency and work quality. Get yours today and experience the difference!

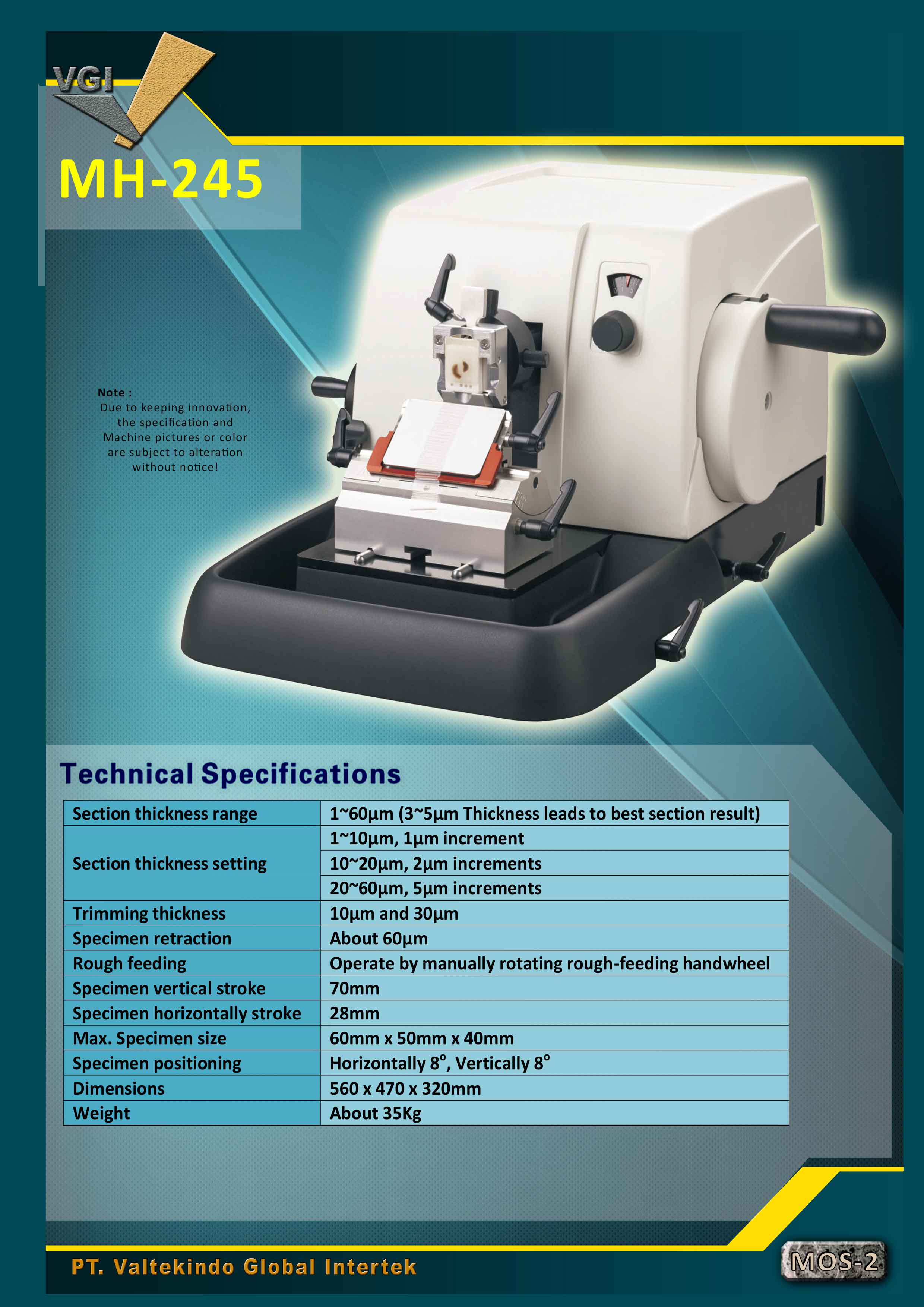

Technical Specifications
|
Section thickness range |
1~60µm (3~5µm Thickness leads to best section result |
|
Section thickness setting |
1~10µm, 1µm increment |
|
10~20µm, 2µm increment |
|
|
20~60µm, 5µm increment |
|
|
Trimming thickness |
10µm and 30µm |
|
Specimen retraction |
About 60µm |
|
Rough feeding |
Operate by manually rotating rough-feeding handwheel |
|
Specimen vertical a stroke |
70mm |
|
Specimen horizontally stroke |
28mm |
|
Max. Specimen size |
60mmx50mmx40mm |
|
Specimen positioning |
Horizontally 8 oC, Vertically 8 oC |
|
Dimensions |
560x470x320mm |
|
Weight |
About 35Kg |
