Sell Brush Sander 2 – Professional Sanding Machine for Wood & Finishing

DESCRIPTION / TECHNICAL SPECIFICATIONS

Elevate your woodworking production standards with our automated brush sanding solution engineered for heavy-duty industrial performance. This machinery offers a comprehensive solution for final surface sanding, effectively reducing loose fibers to enhance surface quality and minimizing sanding marks left by previous processes. It is an essential tool for ensuring superior lacquer or paint adhesion through precise edge breaking techniques.

The main frame is fabricated from heavy steel plate and ribbed to minimize vibration and deflection, ensuring maximum stability when processing complex three-dimensional parts or irregular surfaces such as cabinet doors, frames, and shutters.

Key Features and Technical Advantages:

• Multi-Phase Sanding System: Employs a combination of heavy-duty fully mounted steel brushes to enhance natural grain textures and abrasive nylon brushes with versatile grit options (ranging from #60 to #400) for a refined finish.

• High Production Efficiency: Capable of processing materials on four sides simultaneously in a single work pass, significantly boosting your daily productivity.

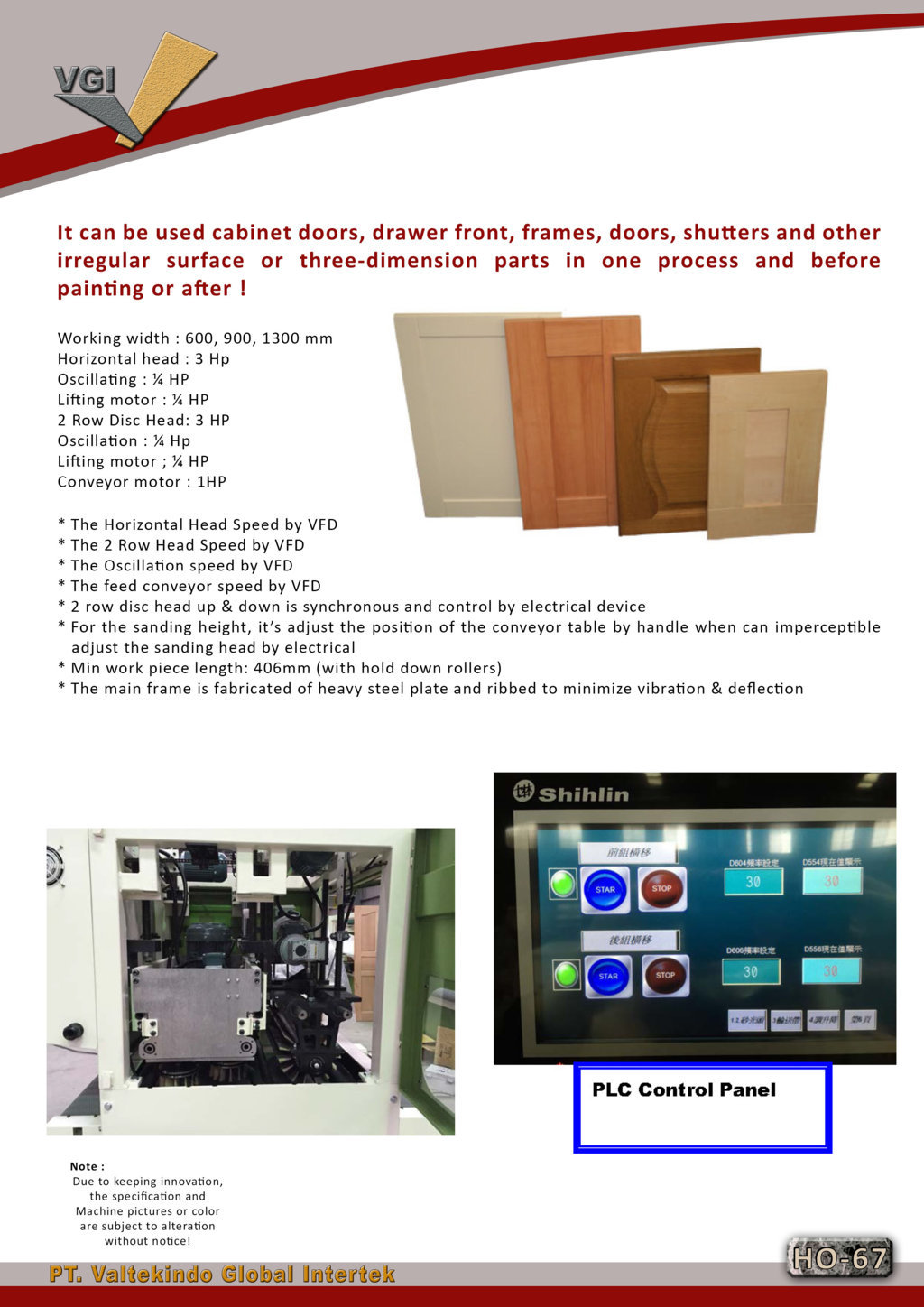

• Precision Digital Control: Features a PLC Control Panel for variable speed adjustments of the conveyor and sanding heads, along with an accurate electrical table height adjustment system.

• Material Versatility: Supports working widths from 600 mm up to 1300 mm, with the capacity to handle material thicknesses from 5 mm to 140 mm.

• Automatic Oscillation: Equipped with oscillation motors to ensure even sanding pressure distribution and prevent any surface damage.

Investing in this machinery will drastically reduce manual labor time, lower operational costs, and deliver world-class finishes ready for final coating applications.
