Sell Advanced Manual Finger Jointing System – Precision Wood Jointing Solutions for Industry

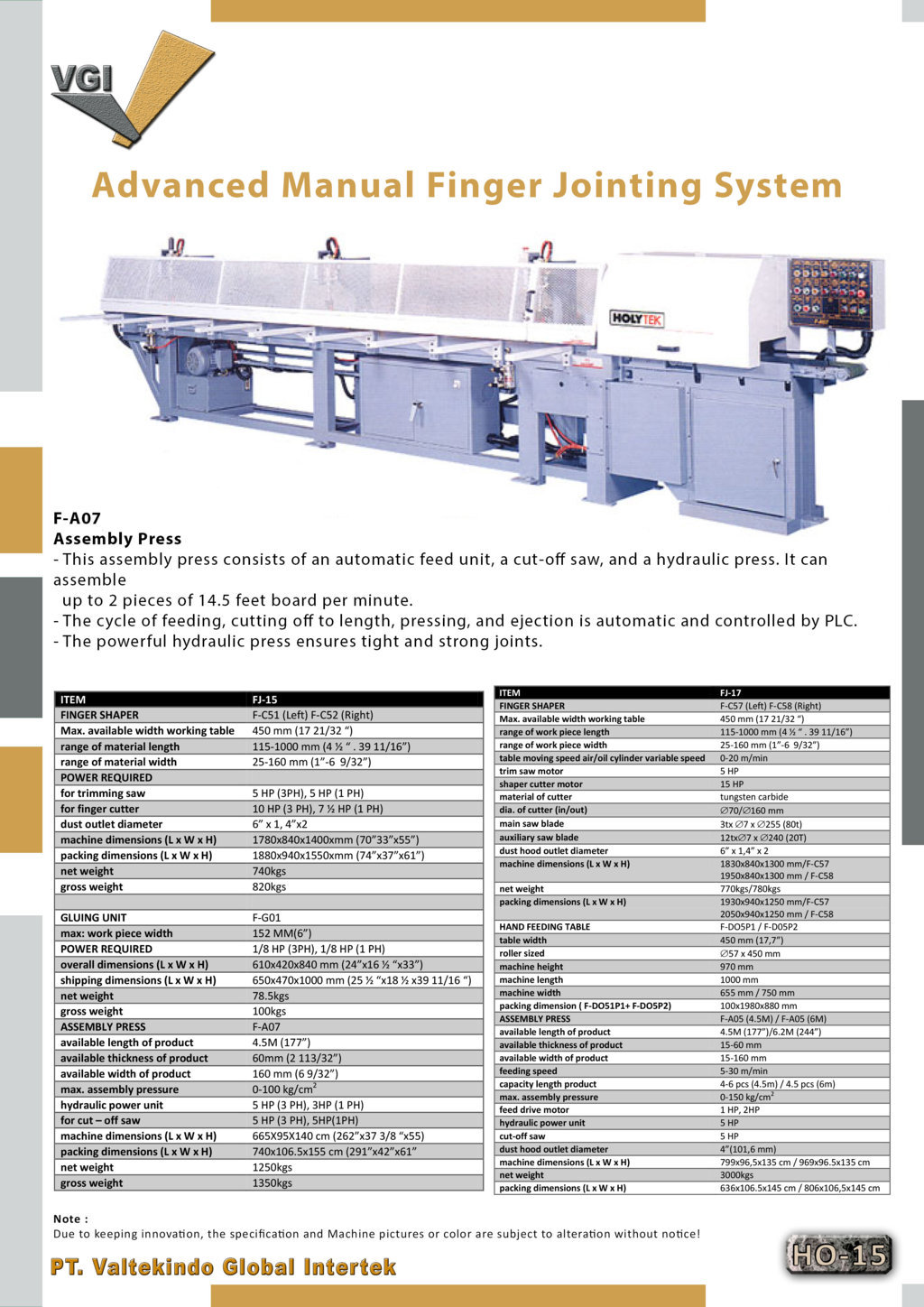

DESCRIPTION / TECHNICAL SPECIFICATIONS

In the secondary wood processing industry, the strength and aesthetics of wood joints are key to producing export-grade furniture or building materials. The Advanced Manual Finger Jointing System emerges as a total solution combining high precision with heavy-duty machine durability. This system is designed to maximize raw material utilization by joining short wood pieces into sturdy long boards through a fully integrated automated process.

The system consists of a robust Finger Shaper unit, equipped with cutting motors up to 15 HP to produce clean and accurate joint profiles. The integrated Gluing unit ensures even adhesive application on every joint profile before entering the Assembly Press stage. This assembly unit is supported by powerful hydraulic force, capable of providing maximum pressure up to 150 kg per square centimeter, ensuring joints are tight, stable, and possess exceptional structural strength.

Workflow efficiency is guaranteed by PLC controls that manage feeding cycles, cut-to-length processes, pressing, and final product ejection automatically. The machine can assemble up to 2 pieces of 14.5-foot board per minute with cutting accuracy maintained by high-speed main saw blades. With the capability to handle material widths up to 160 mm and thicknesses up to 60 mm, this system is a vital asset for factories aiming to boost productivity while reducing valuable wood material waste.
