Scalability Efficiency of Water Vapor Permeation Analyzer with Three Independent Test Chambers

DESCRIPTION / TECHNICAL SPECIFICATIONS

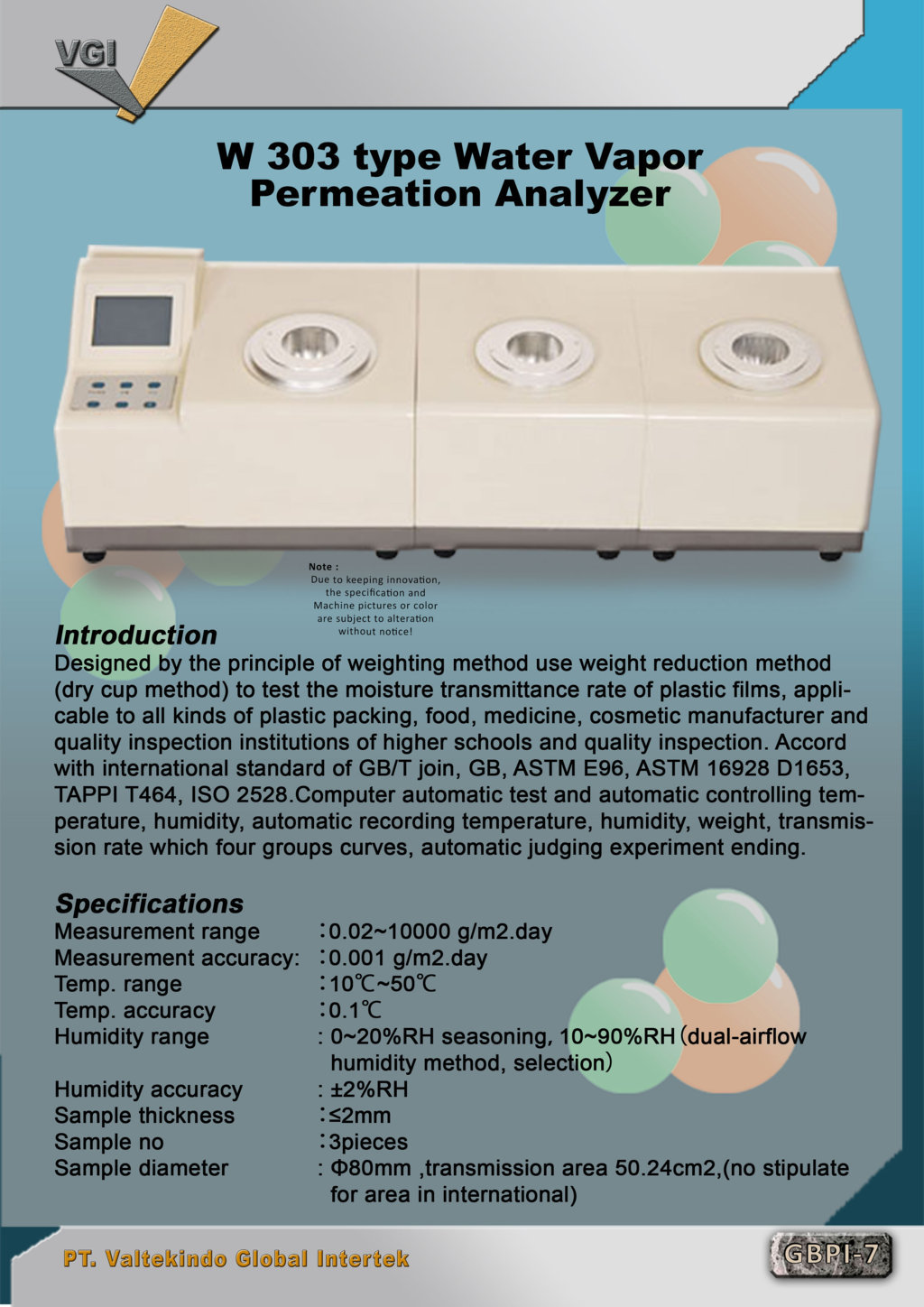

In the effort to guarantee product quality and integrity, testing barrier properties against water vapor is a non-negotiable step, especially for the food, medicine, and cosmetic industries. We present a water vapor permeation analyzer designed using the reliable weighting method principle, specifically the weight reduction method (dry cup method). This advanced instrument is engineered to provide precise water vapor transmission rate (WVTR) data on various types of plastic films. By according with various international standards such as ASTM E96 and ISO 2528, this tool ensures your test results are valid and widely recognized.

The primary advantage defining this instrument is its efficient design featuring 3 separate test chambers. Each chamber is equipped with its own sensor, providing the capability to test 3 different samples independently or simultaneously. This flexibility is further enhanced as each test chamber can be set with different temperature parameters, allowing for comparative testing in a single run. For growing needs, the system also offers the option to be extended to 4 testing chambers.

Data accuracy is a top priority, with a high-precision measurement capability of up to 0.001 g/m²/day. This is achieved through the use of high-precision sensors with super-range protection and an advanced temperature system that utilizes pulsed electromagnetic controlling methods. The instrument offers outstanding dual operational flexibility: it can function entirely as a standalone unit via its 240,000 true color touch screen which has its own operating system , or it can be connected to a computer through a USB port for more in-depth monitoring and data management.

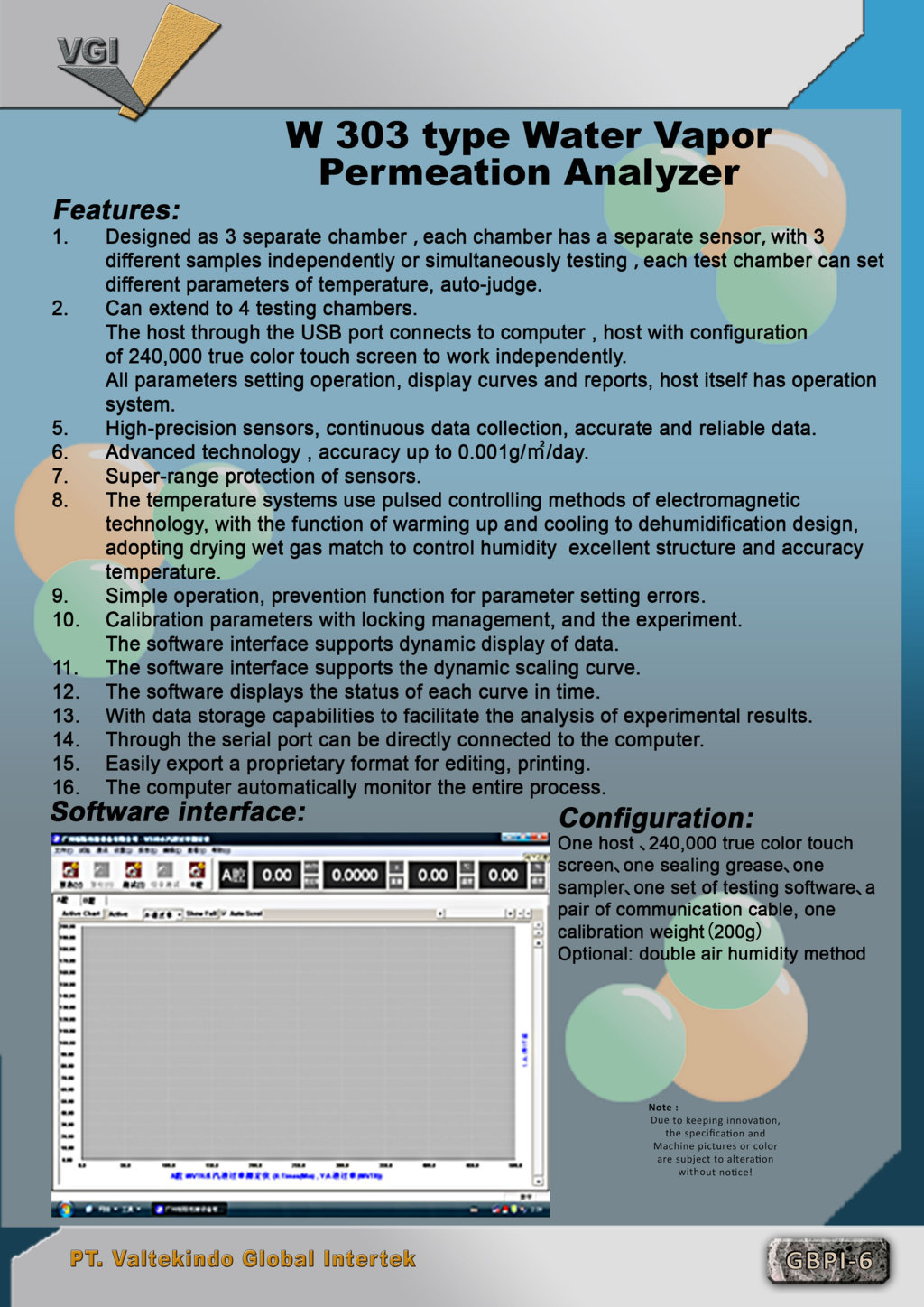

The entire testing process is automatically monitored by computer, which controls temperature and humidity, and also automatically records data curves and judges when the experiment is finished. Its accompanying software is designed for ease of use, supporting dynamic curve display , data storage for analysis , and easy export of data for editing or printing. By investing in this WVTR analyzer, you equip your laboratory with an efficient, accurate, and scalable solution to meet the quality control challenges of today and tomorrow.
