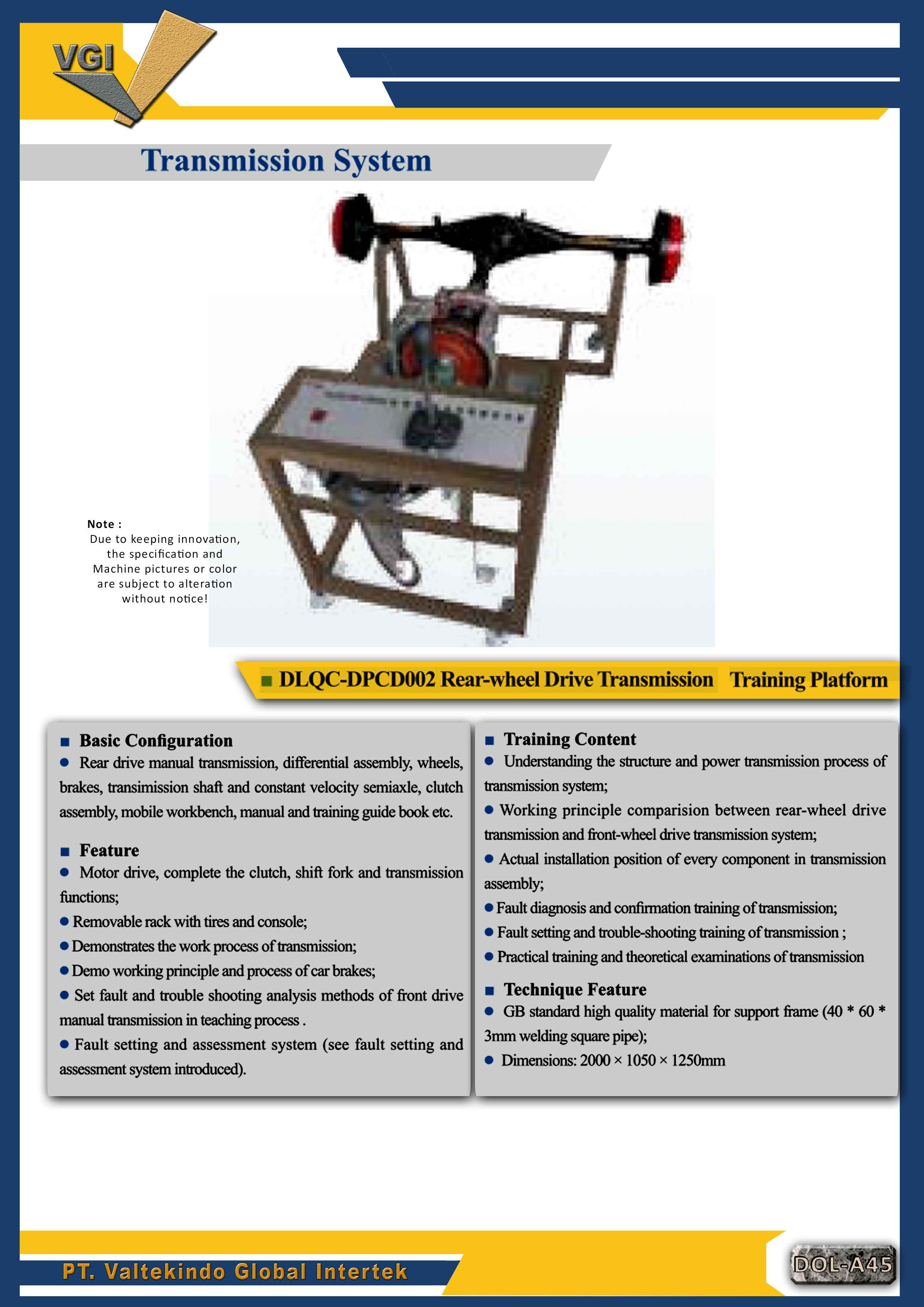

Rear-wheel Drive Transmission Training Platform

DESCRIPTION / TECHNICAL SPECIFICATIONS

Ø  Basic Configuration

·         Rear drive manual transmission, differential assembly, wheels, brakes, transmission shaft and constant velocity semi axle, clutch assembly, mobile work bench, manual and training guide book etc.

Ø  Feature

·         Motor drive, complete the clutch, shift fork and transmission functions;

·         Removable rack with tires and console;

·         Demonstrate the work process of transmission;

·         Set fault and trouble shooting analysis methods of front drive manual transmission in teaching process

·         Fault setting and assessment system (see fault seeting and assessment system introduces).

Ø  Training Content

·         Understanding the structure and power transmission process of transmission system;

·         Working principle comparision between rear-wheel drive transmission and front-wheel transmission system;

·         Actual installation position of every component in transmission assembly;

·         Fault diagnosis and confirmation training of transmission;

·         Fault setting and trouble-shooting training of transmission;

·         Practical training and theoretical examinations of transmission

Ø  Technique Feature

·         GB standard high quality material for support frame (40*60*3mm welding square pipe)

·         Dimensions: 2000x1050x1250mm
