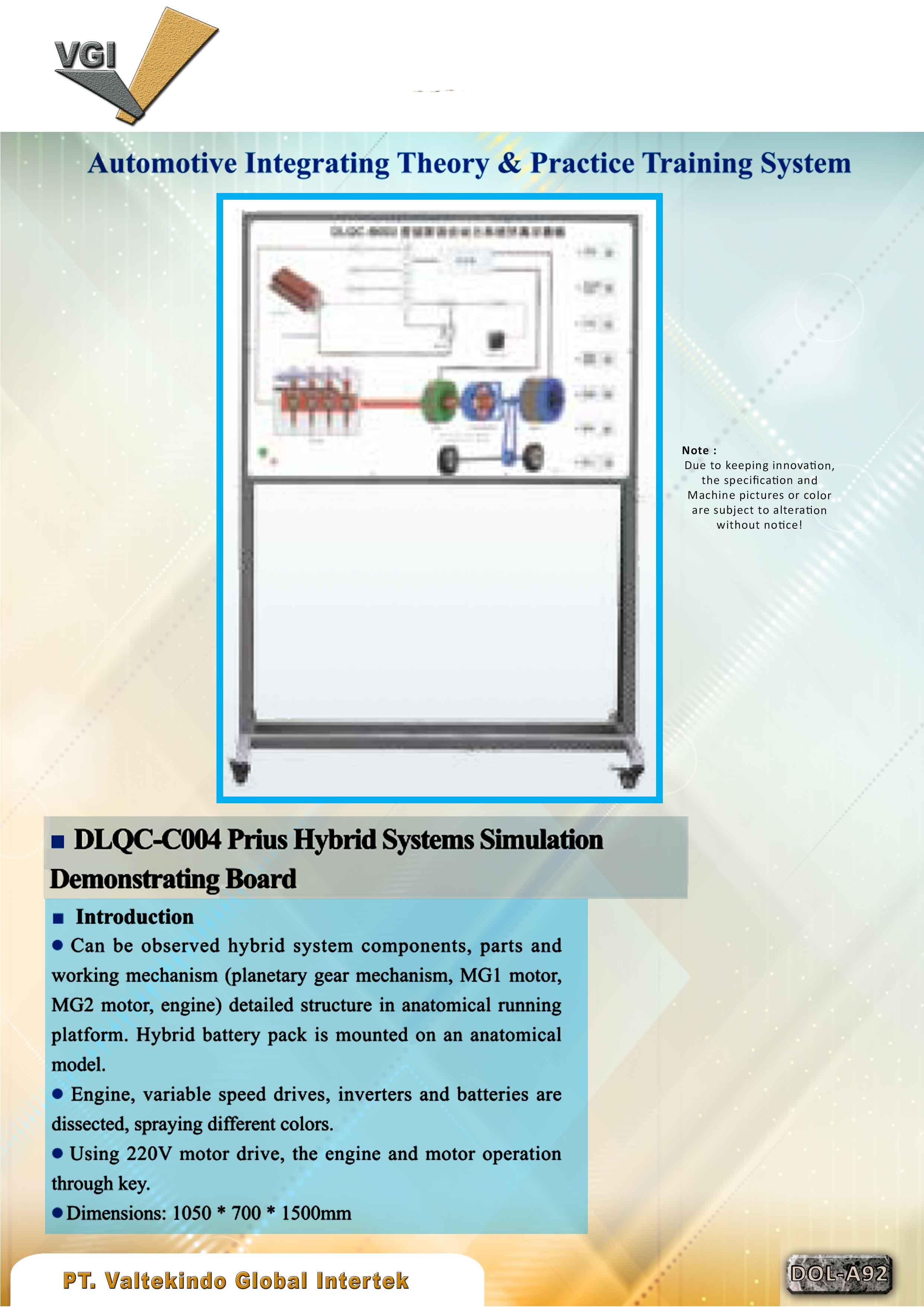

Prius Hybrid System Simulation Board for Sale: A Practical Solution to Mastering HEV Technology

DESCRIPTION / TECHNICAL SPECIFICATIONS

The automotive industry is rapidly evolving towards sustainable mobility, making a deep understanding of Hybrid Electric Vehicle (HEV) systems essential for the next generation of technicians. This simulation board serves as a comprehensive educational bridge, seamlessly merging theory and practical application. It allows students and educators to observe the intricate working mechanisms of hybrid components in a dynamic, anatomical running platform.

This training system provides a clear view of the planetary gear mechanism, MG1 and MG2 motors, and the internal combustion engine’s interaction. Key components, including the engine, variable speed drives, inverters, and the high-voltage hybrid battery pack, are expertly dissected and color-coded for enhanced visual clarity. Powered by a 220V motor drive, the system simulates real-world engine and motor operations via key control, offering a high-fidelity learning experience without the risks associated with full-scale vehicle testing. It is the ultimate tool for mastering hybrid technology in a classroom or vocational training environment.
