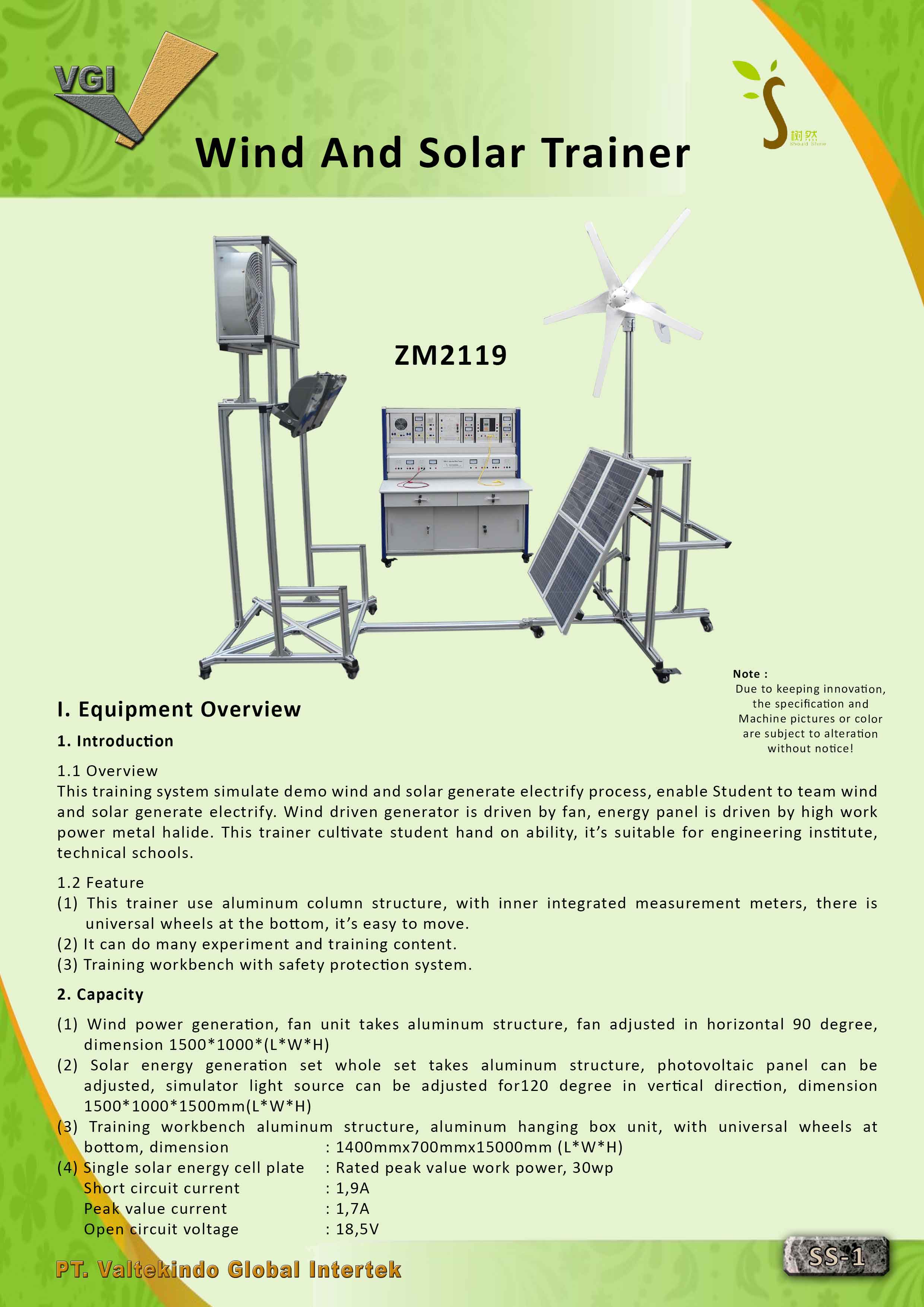

New Integrated Laboratory Testing Equipment for Solar & Wind Hybrid Energy Technology

DESCRIPTION / TECHNICAL SPECIFICATIONS

Maximize the potential of future technology education with the New Integrated Laboratory Test Equipment for Solar & Wind Hybrid Energy Technology. This system is a cutting edge educational solution that combines the two most dominant renewable energy sources into one comprehensive practical module. Designed to accurately simulate solar and wind power generation mechanisms, this tool provides a deep interactive learning experience for engineering students, researchers, and industrial practitioners.

Technical Advantages and Functionality:

• Realistic Simulation System: Equipped with a high power artificial light source (metal halide) to simulate solar radiation on solar panels, and a powerful industrial fan unit to drive the wind turbine without relying on natural weather conditions.

• Ergonomic Structure and High Mobility: Utilizing high quality aluminum frames that are lightweight yet extremely sturdy. Equipped with universal wheels at the bottom for easy movement between laboratory rooms or classrooms.

• Integrated Control and Measurement Panel: Features a central workbench equipped with precision digital measurement meters to monitor current, voltage, and power output in real-time.

• Adjustment Flexibility: The fan unit and simulated light source can be adjusted up to 90 and 120 degrees horizontally or vertically to study the effect of angle of incidence on energy efficiency.

• Maximum Safety System: Built with electrical safety protection features to ensure user safety during the experimental process.

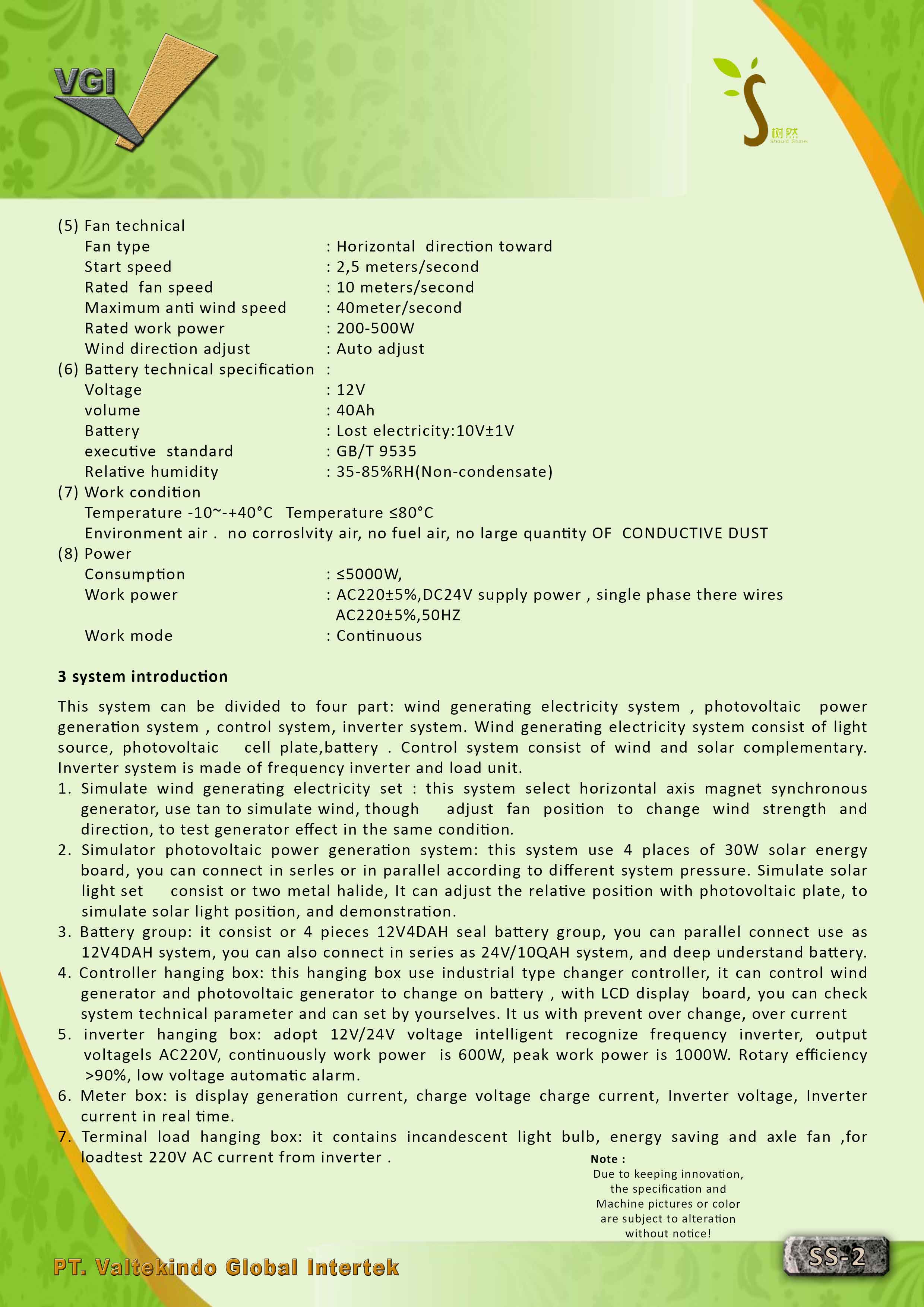

Key Technical Specifications:

• Solar Panel Capacity: High efficiency solar cells with 30Wp peak power, 18.5V open circuit voltage, and 1.7A peak current.

• Wind Turbine Capacity: Durable aluminum construction with unit dimensions optimized for laboratory spaces.

• Unit Dimensions: Modular equipment series allowing for efficient placement with proportional dimensions for engineering practice rooms.
