Multi Channel Temperature Sensor Laboratory Equipment

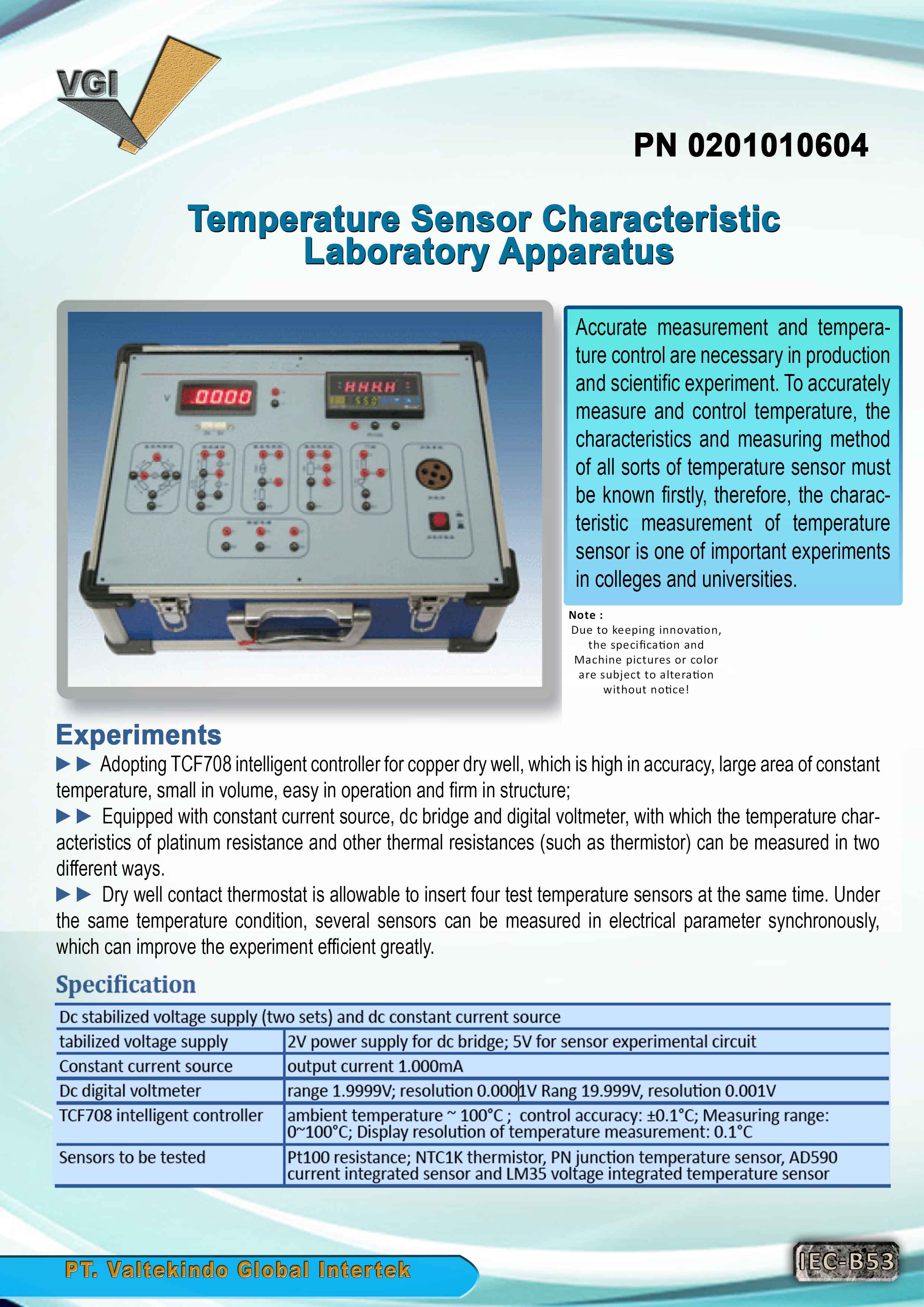

DESCRIPTION / TECHNICAL SPECIFICATIONS

Introducing a cutting-edge laboratory platform specifically designed for a fundamental experiment in science and engineering the characterization of temperature sensors This advanced apparatus provides the ability to accurately measure and compare the characteristics of various sensor types simultaneously a crucial process for understanding the advantages and limitations of each sensor technology in real-world applications This instrument is the definitive solution for colleges and universities aiming to provide an in-depth understanding of modern temperature measurement technologies

The core of this device's efficiency is its use of a TCF708 intelligent controller for a copper dry well contact thermostat This technology ensures high accuracy a large contact area and a firm structure creating a highly stable and uniform thermal environment With the capacity to hold up to four different test sensors at the same time students can perform synchronous measurements of electrical parameters under identical temperature conditions which dramatically improves the efficiency and reliability of experimental data

This apparatus supports the comparative investigation of the most common range of temperature sensors used in industry and research Students can directly test and map the response of a Pt100 platinum resistance sensor an NTC1k thermistor a PN junction temperature sensor as well as popular integrated sensors like the current-based AD590 and the voltage-based LM35 This diversity allows for a rich curriculum covering various sensor operating principles from thermal resistance to semiconductor characteristics all within a single lab session

To support these precise measurements the device comes equipped with all the necessary electronic instruments It includes two sets of stabilized DC voltage supplies one for the DC bridge and another for the sensor experimental circuit a precision 1 000mA constant current source and a high-resolution DC digital voltmeter with resolution down to 0 0001V All these components are integrated into a single compact and easy-to-operate unit ensuring a seamless workflow and a focus on sensor data analysis

Overall this laboratory apparatus is not just a measurement tool but a complete sensor characterization station By simplifying the complex process of comparative testing it empowers educators to teach the concepts of sensor selection more effectively It is a strategic investment that provides students with direct experience in evaluating different sensor technologies preparing them with practical skills that are highly sought after in the engineering and scientific research fields
