Mechatronics Trainer Machine: Modern Practical Solutions for Developing Expert Industrial Technicians

DESCRIPTION / TECHNICAL SPECIFICATIONS

Elevate technical competency standards in your educational institutions or industrial training centers with a comprehensive mechatronics training system. This equipment is designed as a real-world simulation bridge, integrating various disciplines from logic control and pneumatic systems to advanced robotics technology. This system is a vital investment for preparing a workforce ready to meet the challenges of modern industrial automation.

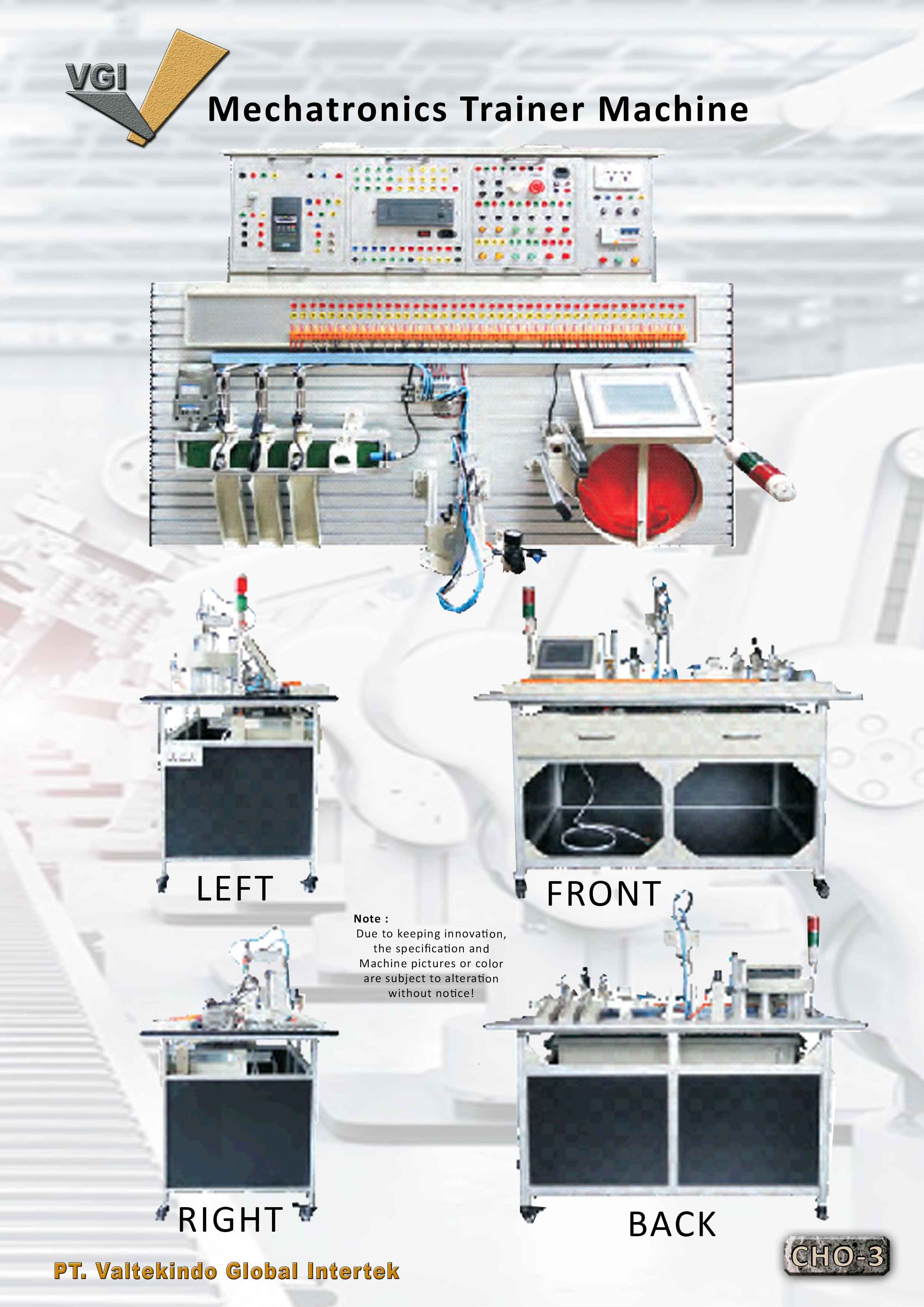

The trainer is powered by a high-performance Programmable Logic Controller (PLC) module featuring 64K steps of battery-backed RAM and expansion capabilities up to 384 combined I/O. Operator interaction is maximized through an HMI unit with a 7-inch TFT LCD screen supported by an ARM 400MHz CPU for instant responsiveness. The system includes automatic delivery, detection, sorting, and storage units driven by three-phase gear motors and equipped with various smart sensors such as fiber optic and capacitive approach switches. Additionally, it features a four-freedom manipulator handling unit utilizing pneumatic cylinders and grippers for precise material handling simulations. With a modular design accessible from multiple sides (front, back, right, and left), this tool facilitates effective and in-depth collaborative practical learning.
