Maximum Efficiency Dual Mode Permeation Analysis Instrument for Oxygen and Water Vapor

DESCRIPTION / TECHNICAL SPECIFICATIONS

In the modern packaging industry, protecting products from degradation caused by oxygen and moisture is the most critical factor. We present a breakthrough in material analysis: an advanced instrument capable of performing high-precision oxygen permeability (OTR) and water vapor permeability (WVTR) testing simultaneously on one integrated platform. This device is designed to be the ultimate solution for quality control and R&D labs handling plastic films, sheets, and finished packaging like bottles and bags. Forget the need for two separate machines; this dual-mode instrument saves space, time, and investment while delivering complete and accurate barrier property data.

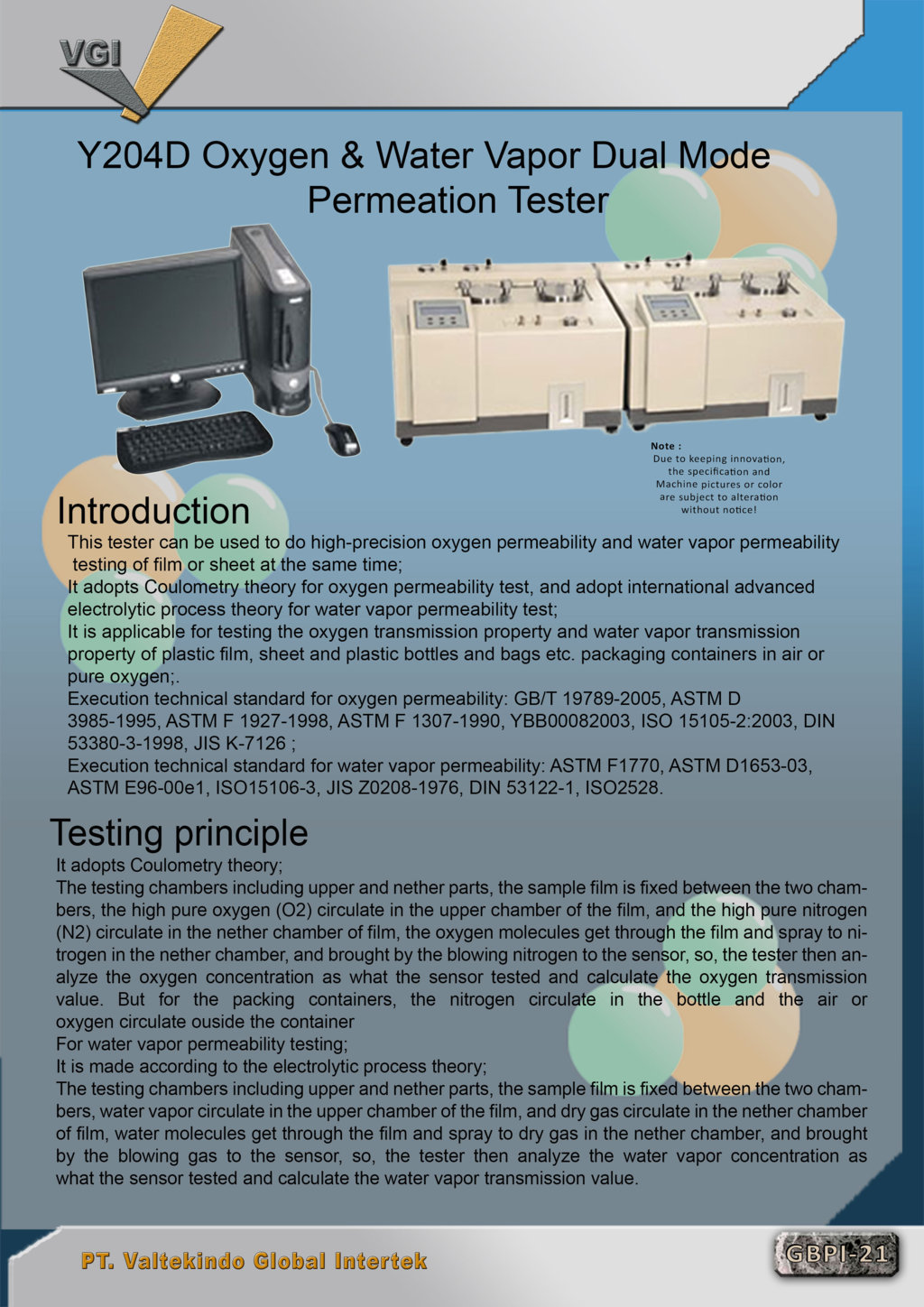

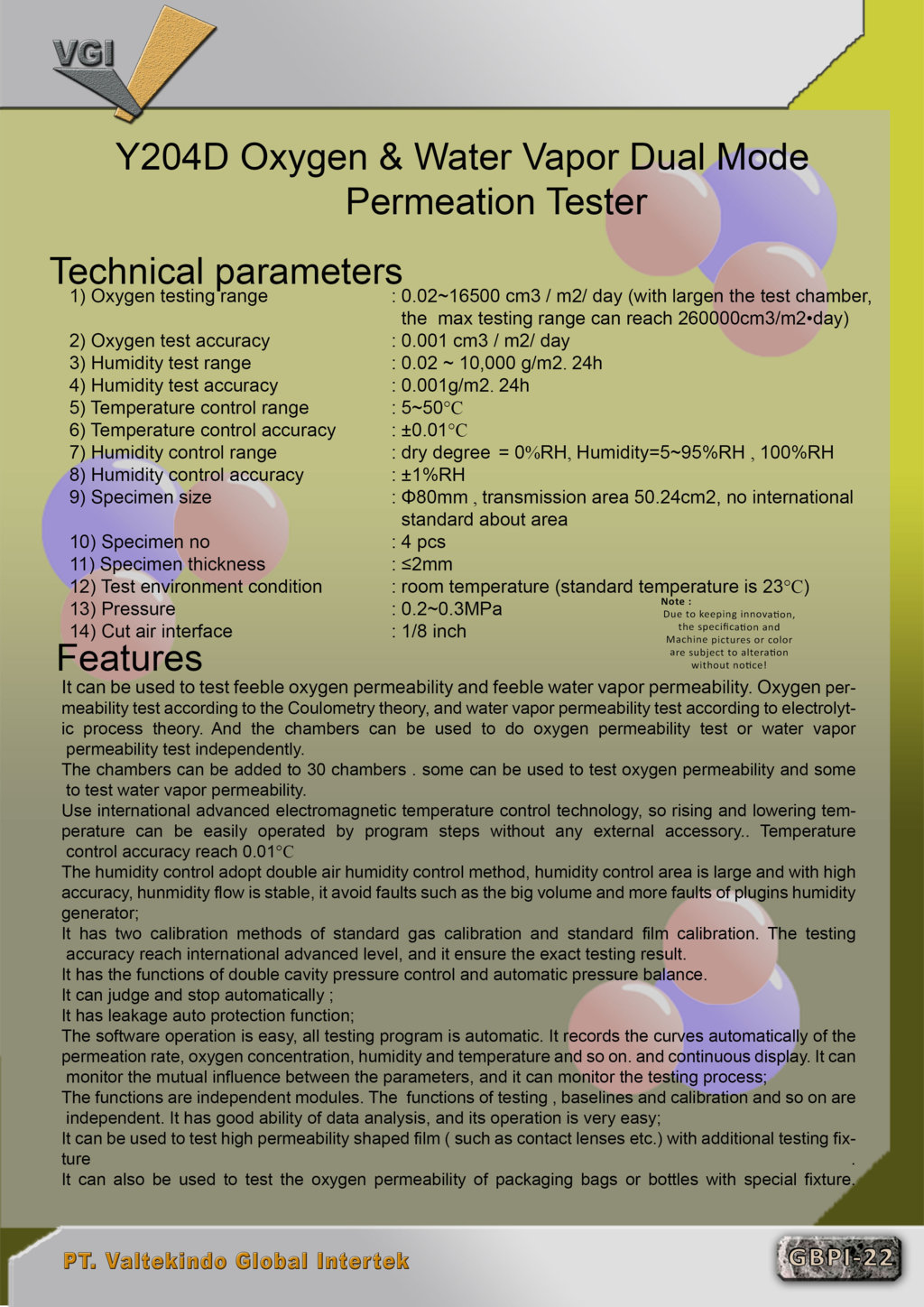

The key to this instrument's reliability lies in its use of two distinct, internationally proven testing technologies. For oxygen permeability testing, it adopts the Coulometry principle, while for water vapor permeability, it utilizes an advanced electrolytic process theory. This dual approach ensures each test is performed with the most appropriate method, yielding data with an extremely high accuracy of 0.001 units for both parameters. Supported by a sophisticated electromagnetic temperature and humidity control system, the device maintains highly stable testing conditions with a temperature accuracy of ±0.01°C, ensuring consistent and repeatable results.

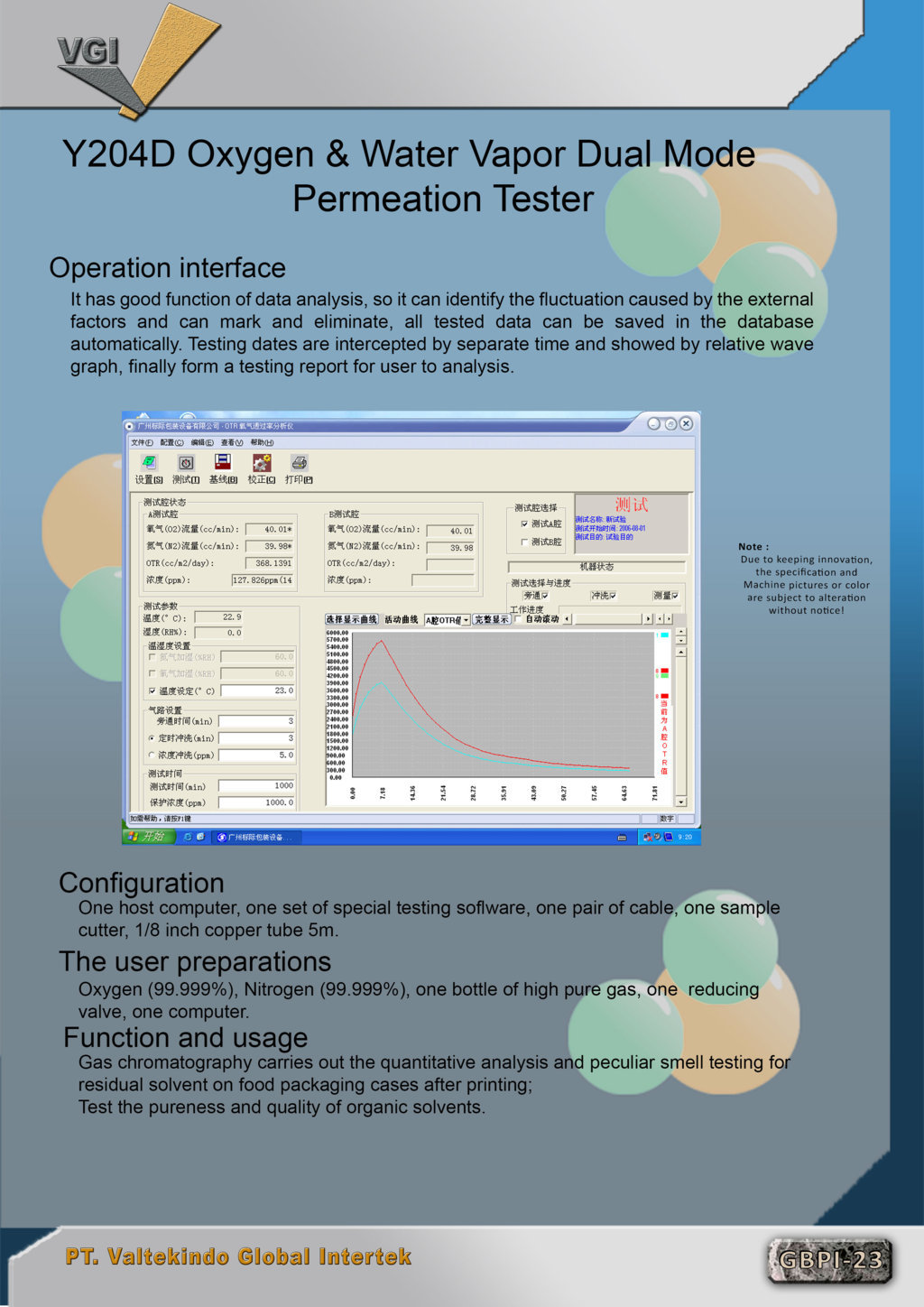

Designed for operational efficiency, the entire testing process is fully automatic from start to finish. The intuitive software continuously records permeation, concentration, temperature, and humidity curves, allowing operators to monitor the process in real-time. The system is also equipped with intelligent features such as automatic judgment and stoppage, leakage protection, and automatic pressure balance to guarantee the safety and integrity of every test. With a modular design, the number of test chambers can be expanded up to 30 units, allowing the system to grow with your testing needs.

Investing in this dual-mode permeation instrument is a strategic move to accelerate product innovation, ensure supply chain quality, and extend your product's shelf life. Its ability to efficiently analyze the two primary degradation parameters empowers your company to make faster, more informed decisions. Whether for validating supplier materials, developing new packaging structures, or ensuring compliance with global industry standards, this instrument is an invaluable asset that protects your product integrity and brand reputation in the marketplace.
