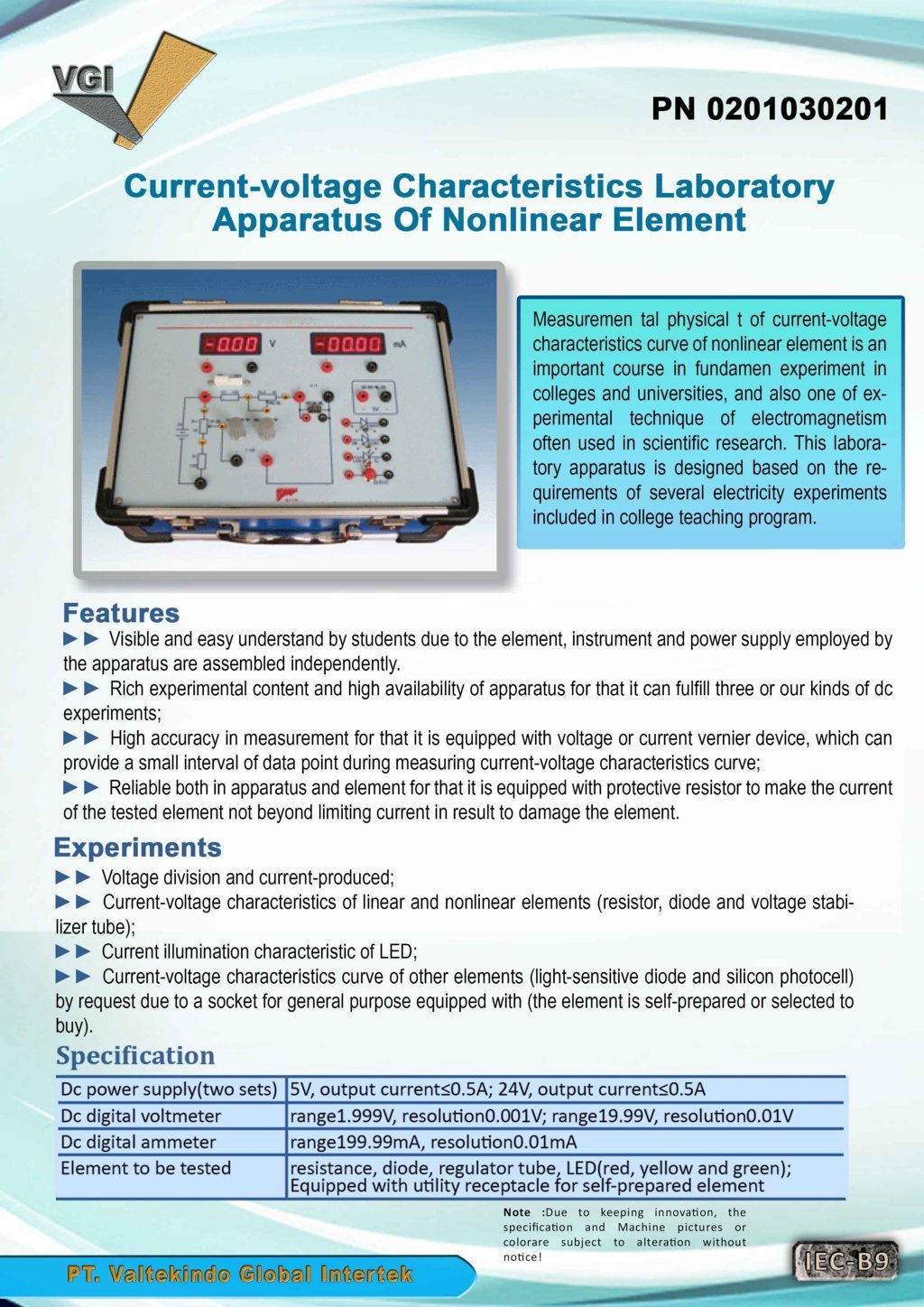

Laboratory Equipment for Current-Voltage Characteristics of Nonlinear Elements

DESCRIPTION / TECHNICAL SPECIFICATIONS

Introducing a fundamental and highly practical experimental workstation designed for investigating the current-voltage characteristics (I-V curve) of various electronic elements This apparatus is specifically created with a hands-on approach where students independently assemble their own experimental circuits providing a deep and intuitive understanding of component behavior that goes far beyond black-box experiments

The primary focus of this apparatus is to directly compare the behavior of linear and nonlinear elements Students will begin by plotting the I-V curve of a resistor to experimentally verify Ohm's Law They will then contrast this linear result with the distinct nonlinear curves of essential semiconductor components like a rectifier diode and a voltage stabilizer tube or Zener diode

This kit also extends the study into the realm of optoelectronics Students can measure the current-illumination characteristics of Light Emitting Diodes (LEDs) available in various colors Furthermore a unique utility receptacle is included for maximum flexibility allowing for the testing of user-prepared elements or additional components such as photodiodes or silicon photovoltaic cells

To ensure accuracy and safety the device is equipped with advanced features A voltage or current vernier device allows for taking data points at very small intervals resulting in a high-resolution I-V curve plot Protective resistors are integrated into the circuitry to automatically limit the current ensuring that neither the power supply nor the element under test will be damaged by overcurrent

Designed as a portable self-contained laboratory this apparatus includes everything needed to get started including two sets of DC power supplies high-resolution digital voltmeters and ammeters and a basic set of components to be tested With its visible and easy-to-understand layout it is a highly effective tool for the teaching laboratory

Overall this apparatus is a content-rich solution that is indispensable for fundamental physics and basic electronics laboratories in colleges universities and technical secondary schools It not only teaches the theory behind I-V curves but also builds practical skills in circuit assembly safe measurement practices and electronic component data analysis
