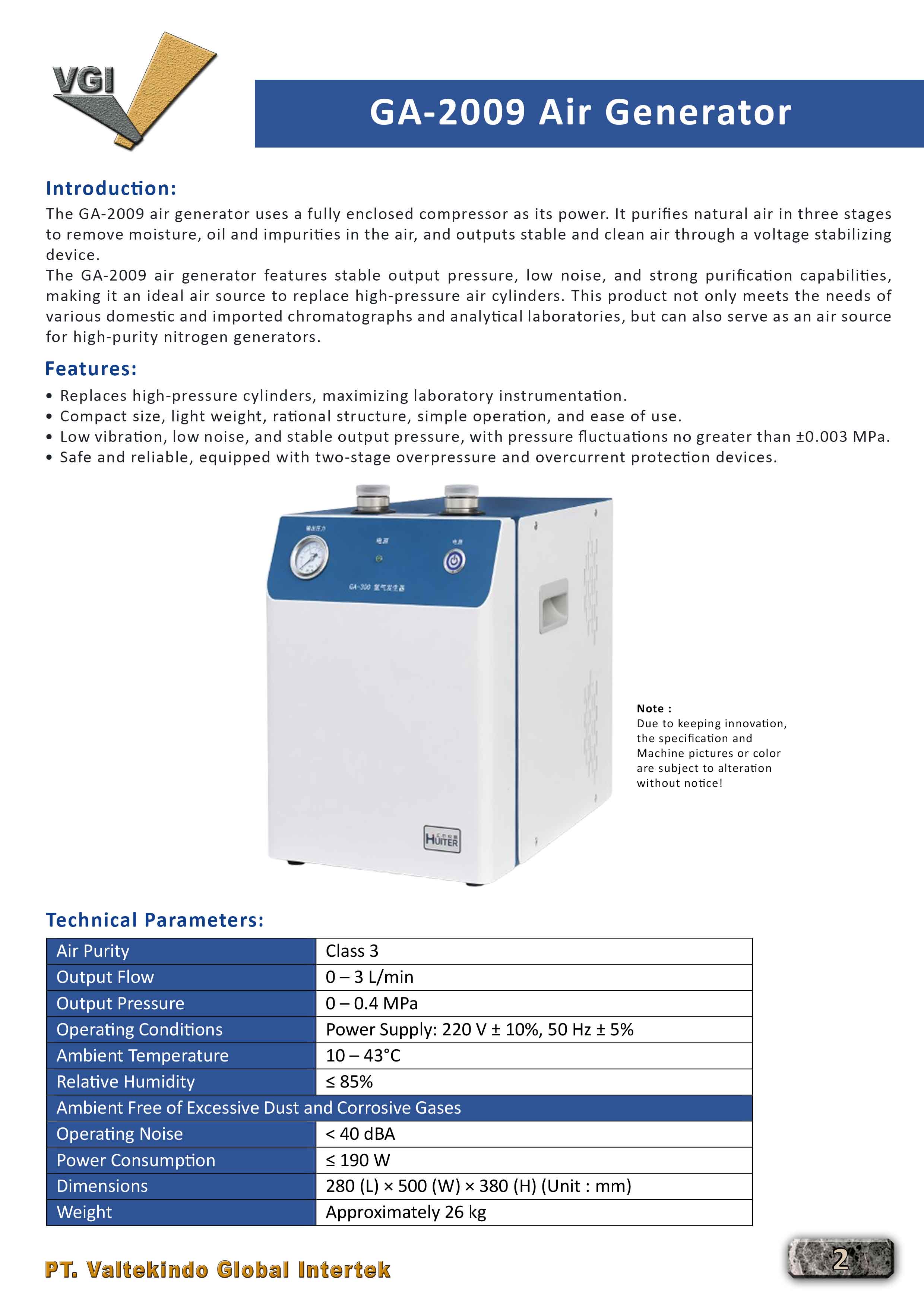

Laboratory Air Generator: A Clean, Stable, and Efficient Air Supply Solution for Chromatography

DESCRIPTION / TECHNICAL SPECIFICATIONS

Reliable and Clean Air Supply Solution for Analytical Laboratories and Industrial Applications

In industrial quality control, research, and analytical testing environments, a continuous supply of clean, dry, and pressure-stable air is essential for maintaining analytical precision and instrument longevity. This Laboratory Air Generator is engineered as an advanced, safe alternative to conventional high-pressure air cylinders, maximizing the performance and workspace efficiency of your laboratory instrumentation.

Core Functionality and Three-Stage Purification System Powered by a fully enclosed compressor, this air generator processes natural ambient air through a comprehensive three-stage purification system to effectively eliminate moisture, oil, and particulate impurities. Integrated with a voltage stabilizing device, the unit delivers Class 3 purity clean air at a continuous flow rate of 0 to 3 L/min and an output pressure of up to 0.4 MPa.

Industrial and Laboratory Applications Combining strong purification performance with stable output delivery, this system is ideally suited for:

• Supporting a wide range of domestic and imported gas chromatographs (GC) and analytical instruments.
• Analytical laboratories across manufacturing plants, chemical processing facilities, pharmaceutical production, and testing centers.
• Serving as a dedicated, clean air feed source for high-purity nitrogen generators.

Key Advantages for Operational Efficiency

• Exceptional Pressure Stability: Delivers consistent output pressure with fluctuations maintained at no greater than ±0.003 MPa, ensuring reliable baseline stability for sensitive analytical detectors.
• Low Noise and Low Vibration: Engineered to operate quietly below 40 dBA with minimal vibration, preserving a comfortable and quiet laboratory working environment.
• Dual-Stage Safety Protection: Built for safe, uninterrupted operation with two-stage overpressure and overcurrent protection devices, eliminating the handling hazards associated with high-pressure gas cylinders.
• Compact and Energy-Efficient Design: Features a rational structure, lightweight footprint (280 × 500 × 380 mm, approximately 26 kg), straightforward operation, and low power consumption of ≤ 190 W.

Technical Specifications

• Air Purity: Class 3
• Output Flow Rate: 0 – 3 L/min
• Output Pressure: 0 – 0.4 MPa (pressure fluctuation ≤ ±0.003 MPa)
• Power Supply: 220 V ± 10%, 50 Hz ± 5%
• Power Consumption: ≤ 190 W
• Operating Noise Level: < 40 dBA
• Ambient Temperature Range: 10 – 43°C
• Relative Humidity: ≤ 85% (in an environment free of excessive dust and corrosive gases)
• Dimensions (L × W × H): 280 × 500 × 380 mm
• Net Weight: Approximately 26 kg

Optimize Your Laboratory Air Supply Today Upgrade your analytical laboratory with a dependable, low-maintenance clean air source and eliminate the logistical challenges of high-pressure gas cylinders. Contact our technical specialists today for detailed product consultations, compatibility assessments, or to request an official quotation tailored to your facility's requirements.
