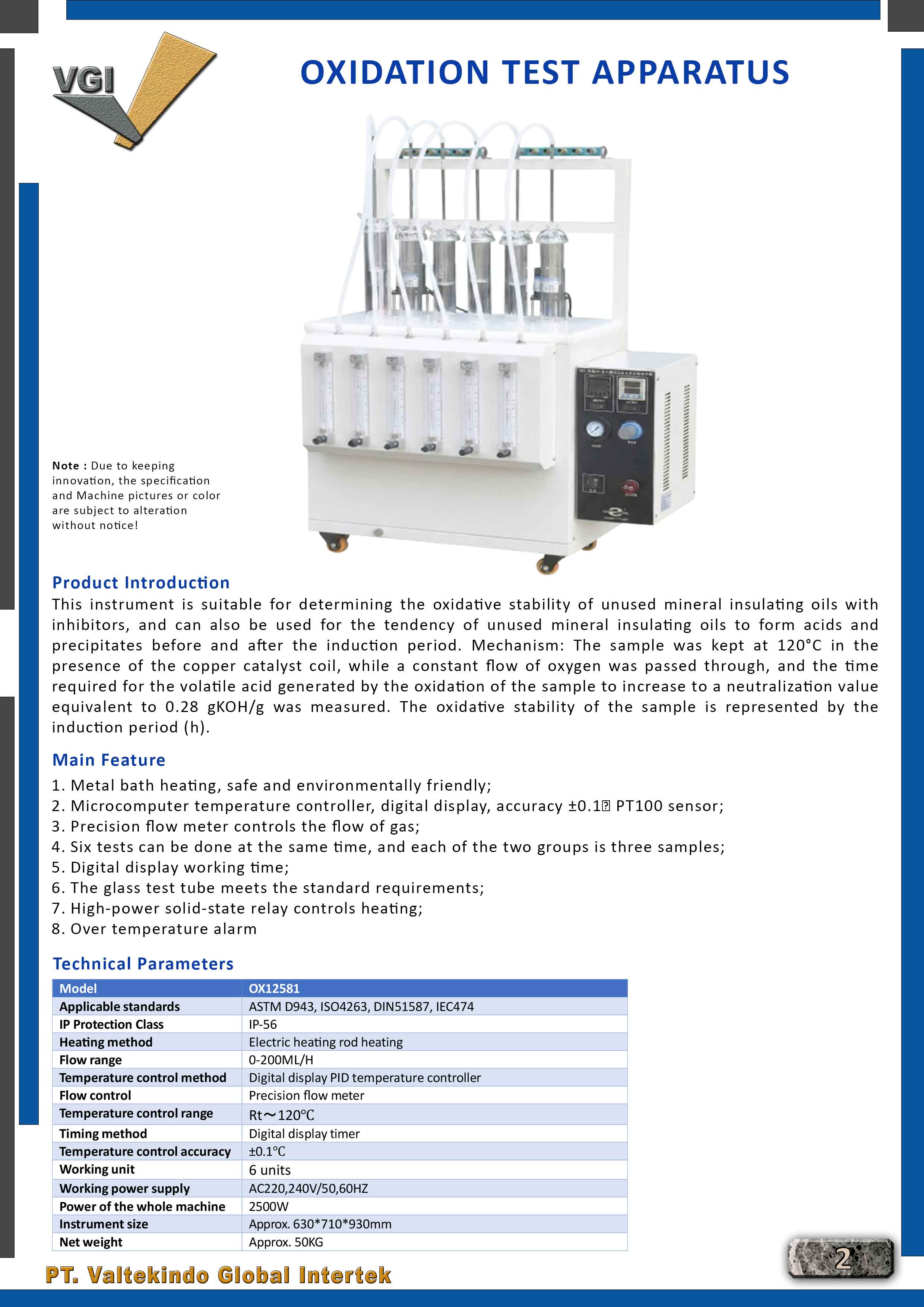

Industrial Oxidation Test Apparatus: A Precise and Efficient Solution for Testing the Oxidation Stability of Insulating Oil

DESCRIPTION / TECHNICAL SPECIFICATIONS

Precision Oxidative Stability Testing Solution for Mineral Insulating Oils

In power generation, lubricant manufacturing, and industrial quality control laboratories, maintaining the integrity of insulating oils is essential for protecting critical electrical and mechanical assets. The Oxidation Test Apparatus is a professional laboratory testing instrument engineered to determine the oxidative stability of unused mineral insulating oils containing inhibitors. Furthermore, this apparatus is utilized to evaluate the tendency of unused mineral insulating oils to form acids and precipitates both before and after the induction period.

Standardized Testing Mechanism and Reliable Measurement

The Oxidation Test Apparatus operates on a strictly controlled and standardized testing mechanism. During the test, the oil sample is maintained at a constant temperature of 120°C in the presence of a copper catalyst coil while a continuous, steady flow of oxygen is passed through it. The instrument measures the exact time required for the volatile acid generated by the oxidation of the sample to reach a neutralization value equivalent to 0.28 gKOH/g. The oxidative stability of the tested oil sample is then accurately represented by the induction period measured in hours (h).

High Testing Efficiency for Industrial Laboratories

Designed to maximize laboratory throughput and testing productivity, the Oxidation Test Apparatus features 6 working units capable of performing six tests simultaneously, organized into two groups of three samples each. This multi-sample capability significantly reduces turnaround time for batch quality verification. In addition, the system utilizes metal bath heating driven by electric heating rods, offering a safe and environmentally friendly alternative to conventional liquid bath systems.

Key Features and Technical Advantages

• Compliance with International Standards: Fully conforms to major international testing standards including ASTM D943, ISO4263, DIN51587, and IEC474, equipped with glass test tubes that meet all standard requirements.
• High-Accuracy Microcomputer Temperature Control: Utilizes a microcomputer digital display PID temperature controller paired with a PT100 sensor, regulating temperatures from room temperature (Rt) up to 120°C with a precision accuracy of ±0.1°C.
• Precision Gas Flow and Timing Control: Integrated with a precision flow meter to regulate gas flow within a range of 0 to 200 ML/H, alongside a digital display timer for clear and accurate monitoring of working time.
• Enhanced Operational Safety and Durability: Equipped with a high-power solid-state relay for stable heating control, a built-in over-temperature alarm for operational safety, and an IP-56 protection class rating.

Technical Specifications

• Applicable Standards: ASTM D943, ISO4263, DIN51587, IEC474
• IP Protection Class: IP-56
• Heating Method: Metal bath heating / Electric heating rod heating
• Temperature Control Method: Digital display PID temperature controller with PT100 sensor
• Temperature Control Range: Room temperature (Rt) ~ 120°C
• Temperature Control Accuracy: ±0.1°C
• Flow Control: Precision flow meter
• Flow Range: 0 – 200 ML/H
• Timing Method: Digital display timer
• Working Capacity: 6 units (2 groups of 3 samples each)
• Working Power Supply: AC 220, 240V / 50, 60Hz
• Total Machine Power: 2500W
• Instrument Dimensions: Approx. 630 × 710 × 930 mm
• Net Weight: Approx. 50 kg

Industrial Applications and Technical Consultation

This testing equipment is an essential asset for lubricant and insulating oil manufacturers, petrochemical testing laboratories, power utility providers, transformer maintenance facilities, and industrial quality assurance departments.

Enhance the reliability and precision of your oil oxidation testing processes. Contact our technical specialists today to discuss your laboratory testing requirements or to request a detailed commercial quotation.
