Industrial Moisture Analyzer: Accurate, Fast, and Efficient Moisture Content Testing Solutions

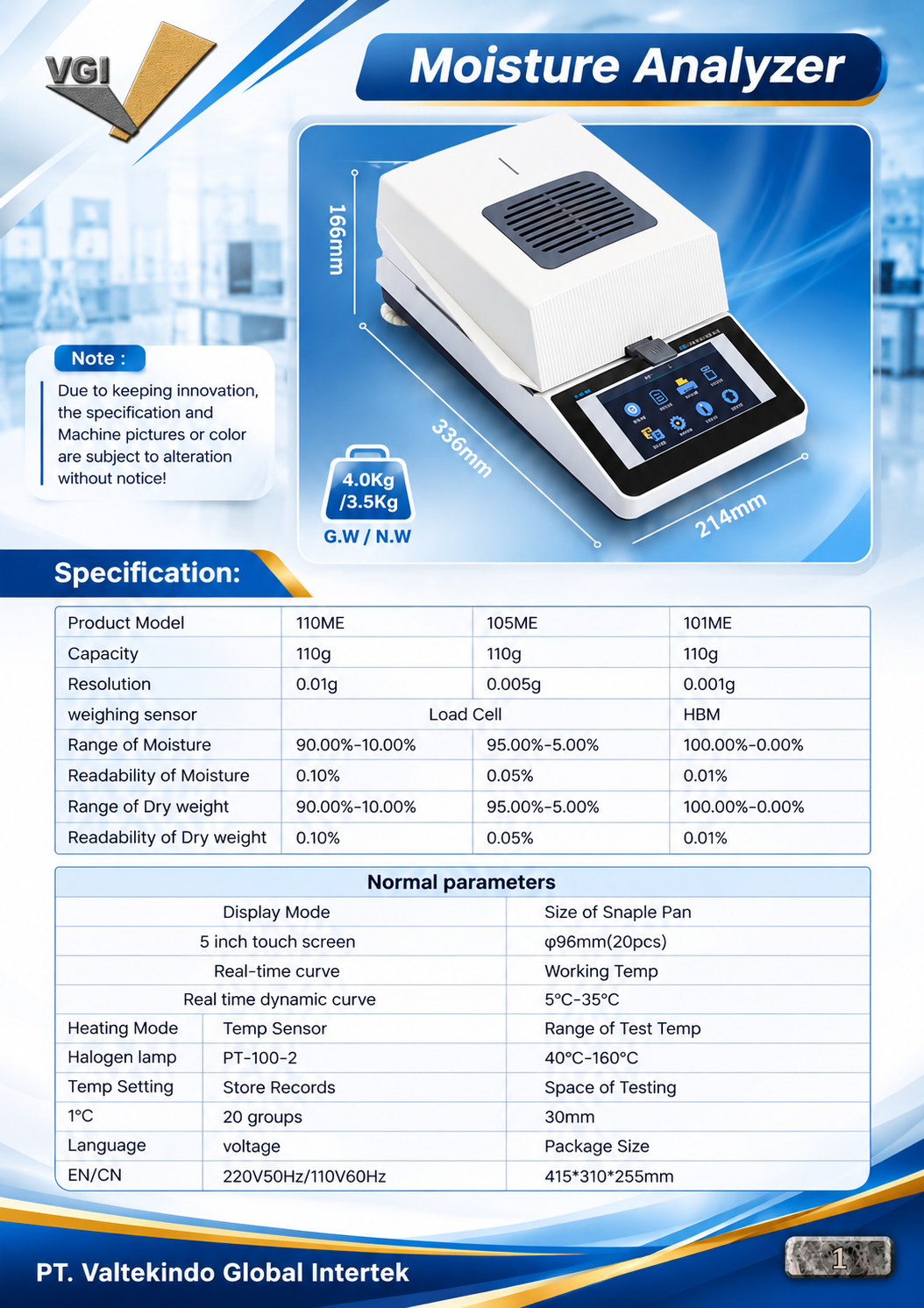

DESCRIPTION / TECHNICAL SPECIFICATIONS

High Precision Moisture Testing Solution for Industrial Quality Control

In manufacturing and raw material processing, accurate moisture measurement plays a critical role in determining final product quality, shelf life, and overall production efficiency. The Moisture Analyzer is a professional laboratory and industrial instrument engineered to measure moisture content and dry weight across a wide variety of samples with high accuracy, consistency, and ease of use.

Halogen Heating Technology and High Precision Weighing Sensors

This moisture analyzer utilizes a halogen lamp heating system paired with a reliable temperature sensor to ensure optimal heat distribution throughout the sample drying process. The testing temperature range can be adjusted between 40°C and 160°C in precise 1°C increments, allowing operators to tailor the heating profile according to the thermal sensitivity of the tested material.

To accommodate diverse analytical precision requirements, the instrument features a 110g sample capacity supported by either Load Cell or HBM weighing sensor options. It offers selectable weight resolution levels of 0.01g, 0.005g, and 0.001g. With moisture and dry weight readability options reaching 0.10%, 0.05%, and 0.01%, the analyzer reliably covers moisture and dry weight measurement ranges of 90.00%–10.00%, 95.00%–5.00%, and a full 100.00%–0.00% range.

Intuitive Operation and Real Time Dynamic Monitoring

Engineered to enhance workflow productivity in both laboratory and production floor environments, this Moisture Analyzer features an intuitive 5 inch touch screen interface with English and Chinese language support. A standout capability of its display system is the real time dynamic curve function, which enables operators to visually monitor the moisture loss rate directly as the test progresses. Furthermore, the unit provides internal storage for up to 20 groups of test records, streamlining data logging and quality evaluation processes.

Compact Design for Versatile Industrial Applications

Featuring a compact footprint (336 mm x 214 mm x 166 mm) and a net weight of 3.5 Kg (gross weight 4.0 Kg), this instrument easily fits onto laboratory benches or factory Quality Control (QC) stations. The testing chamber offers a 30 mm testing space height and utilizes a 96 mm diameter sample pan (supplied with 20 pcs). It operates reliably within a working temperature environment of 5°C to 35°C and supports dual voltage specifications (220V 50Hz / 110V 60Hz).

Key Benefits for Your Production Efficiency:

• Enhanced Quality Assurance: Ensures raw materials and finished goods consistently meet strict moisture specification standards.
• Real Time Visual Analysis: The dynamic curve display simplifies the observation and evaluation of sample drying behavior.
• Adaptable Testing Parameters: Precise 1°C temperature settings (40°C–160°C) and multiple resolution options suit various industrial testing standards.
• Streamlined Workflow: User friendly touch screen controls and built in record storage minimize operator training time and accelerate routine QC checks.

Optimize your quality control standards and safeguard your production consistency with the right analytical instrumentation. Contact our specialist team today for a technical consultation to select the ideal configuration for your industrial application or to request a formal quotation.
