Industrial Carding Machines: Precise and Efficient Solutions for Processing Cotton and Synthetic Fibers

DESCRIPTION / TECHNICAL SPECIFICATIONS

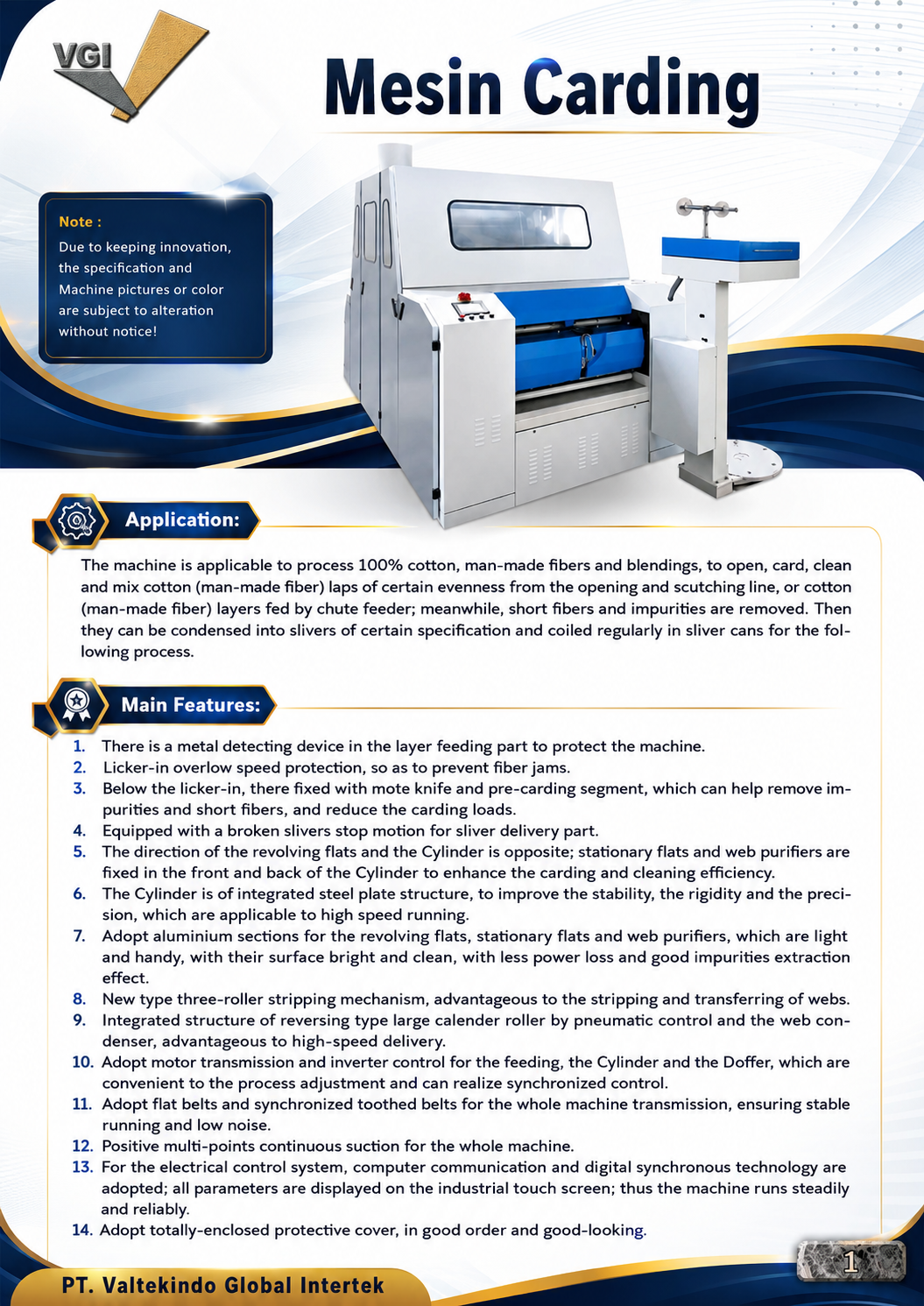

High-Precision Industrial Carding Machine Solution for Efficient Cotton, Man-Made, and Blended Fiber Processing

In textile spinning mills and fiber preparation lines, effective fiber individualization and thorough impurity removal are fundamental to producing uniform, high-strength yarn. This industrial Carding Machine is engineered to process 100% cotton, man-made fibers, and fiber blendings, delivering reliable high-speed carding, cleaning, and sliver formation for modern textile manufacturing facilities.

Core Function and Fiber Processing Workflow

The Carding Machine is designed to open, card, clean, and mix cotton or man-made fiber laps of specified evenness supplied from an opening and scutching line, or fiber layers fed directly via a chute feeder. During the carding process, short fibers and foreign impurities are systematically extracted and removed. The cleaned and aligned fiber web is then condensed into slivers of precise specification and coiled regularly into sliver cans, ready for downstream drawing and spinning processes.

Industrial Applications

Built for continuous industrial operation, this Carding Machine is ideally suited for cotton spinning mills, synthetic and man-made fiber processing plants, blended yarn manufacturing lines, and textile workshops requiring high-speed sliver production with integrated multi-point dust and waste extraction.

Key Features and Advantages for Manufacturing Efficiency

Engineered with advanced mechanical, pneumatic, and digital control technologies, this Carding Machine incorporates 14 core operational advantages:

• Infeed Metal Detection Protection: Equipped with a metal detecting device in the layer feeding section to prevent metallic foreign matter from entering and damaging internal carding components.
• Licker-In Overlow Speed Protection: Incorporates licker-in low-speed protection to effectively prevent fiber jams during feeding.
• Mote Knife & Pre-Carding Segment: Installed beneath the licker-in to remove impurities and short fibers early in the process, significantly reducing overall carding loads.
• Broken Sliver Stop Motion: Features an automated stop motion device at the sliver delivery section that halts operation when a broken sliver is detected.
• Optimized Opposing Flats & Cylinder Configuration: The revolving flats and the Cylinder rotate in opposite directions, while stationary flats and web purifiers are positioned at the front and back of the Cylinder to maximize carding and cleaning efficiency.
• High-Rigidity Integrated Steel Plate Cylinder: The main Cylinder is constructed with an integrated steel plate structure to enhance operational stability, structural rigidity, and precision during high-speed running.
• Lightweight Aluminium Flats & Web Purifiers: Adopts aluminium sections for the revolving flats, stationary flats, and web purifiers—providing a light, handy structure with a bright, clean surface that reduces power loss and improves impurity extraction.
• New-Type Three-Roller Stripping Mechanism: Facilitates smooth, reliable web stripping and transfer at high operating speeds.
• Pneumatic Reversing Calender Roller & Web Condenser: Combines an integrated reversing-type large calender roller controlled pneumatically with a web condenser to support stable, high-speed sliver delivery.
• Synchronized Motor Transmission & Inverter Control: Utilizes dedicated motor transmission and inverter control for the feeding system, Cylinder, and Doffer, enabling convenient process adjustment and precise synchronized control.
• Low-Noise Belt Transmission System: Adopts flat belts and synchronized toothed belts across the entire machine transmission for smooth, stable running and low noise levels.
• Positive Multi-Point Continuous Suction: Ensures continuous waste, short fiber, and dust removal across the entire machine.
• Digital Synchronous Control & Industrial Touchscreen: Adopts computer communication and digital synchronous technology for the electrical control system, displaying all operational parameters clearly on an industrial touch screen for steady, reliable operation.
• Totally-Enclosed Protective Cover: Features a clean, well-organized totally-enclosed safety cover that protects operators and maintains a neat factory floor appearance.

Upgrade Your Textile Spinning Preparation Line Today

Enhance sliver uniformity, impurity extraction efficiency, and production speed across your textile manufacturing operations. Contact our technical consultation team today to discuss your fiber processing requirements, request comprehensive technical specifications, or obtain a competitive commercial quotation for the Carding Machine.
