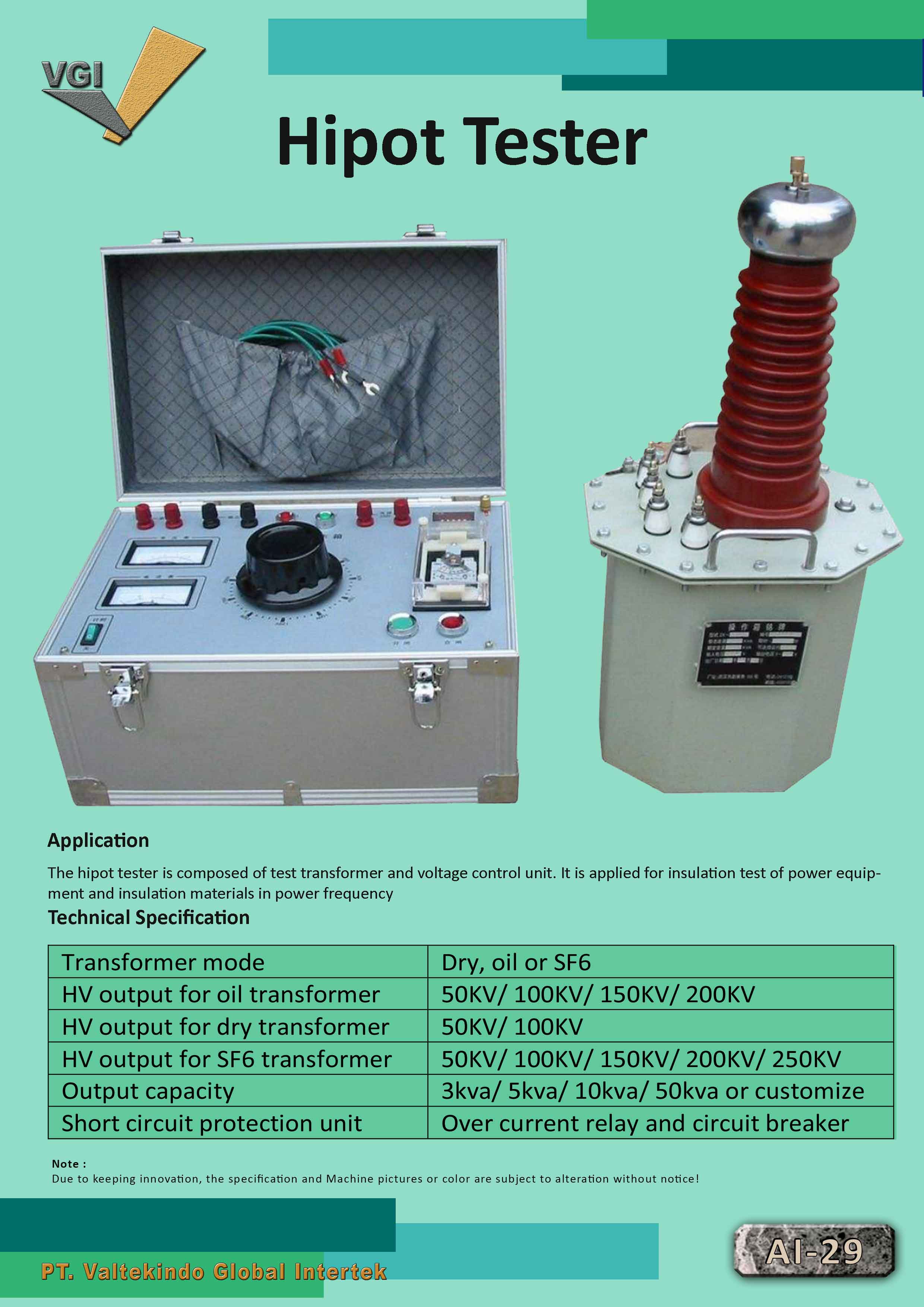

Hipot Tester
Click on the image to enlarge
FEATURE
DESCRIPTION / TECHNICAL SPECIFICATIONS
1.
Application
The hipot tester is composed of test transformer and voltage control unit. It is applied for insulation test of power equipment and insulation materials in power frequency
2.
Technical
Specification
|
Transformer mode |
Dry, oil or SF6 |
|
HV output for oil transformer |
50KV/ 100KV/ 150KV/ 200KV |
|
HV output for dry transformer |
50KV/ 100KV |
|
HV output for SF6 transformer |
50KV/ 100KV/ 150KV/ 200KV/ 250KV |
|
Output capacity |
3kva/ 5kva/ 10kva/ 50kva or customize |
|
Short circuit protection unit |
Over current relay and circuit breaker |
