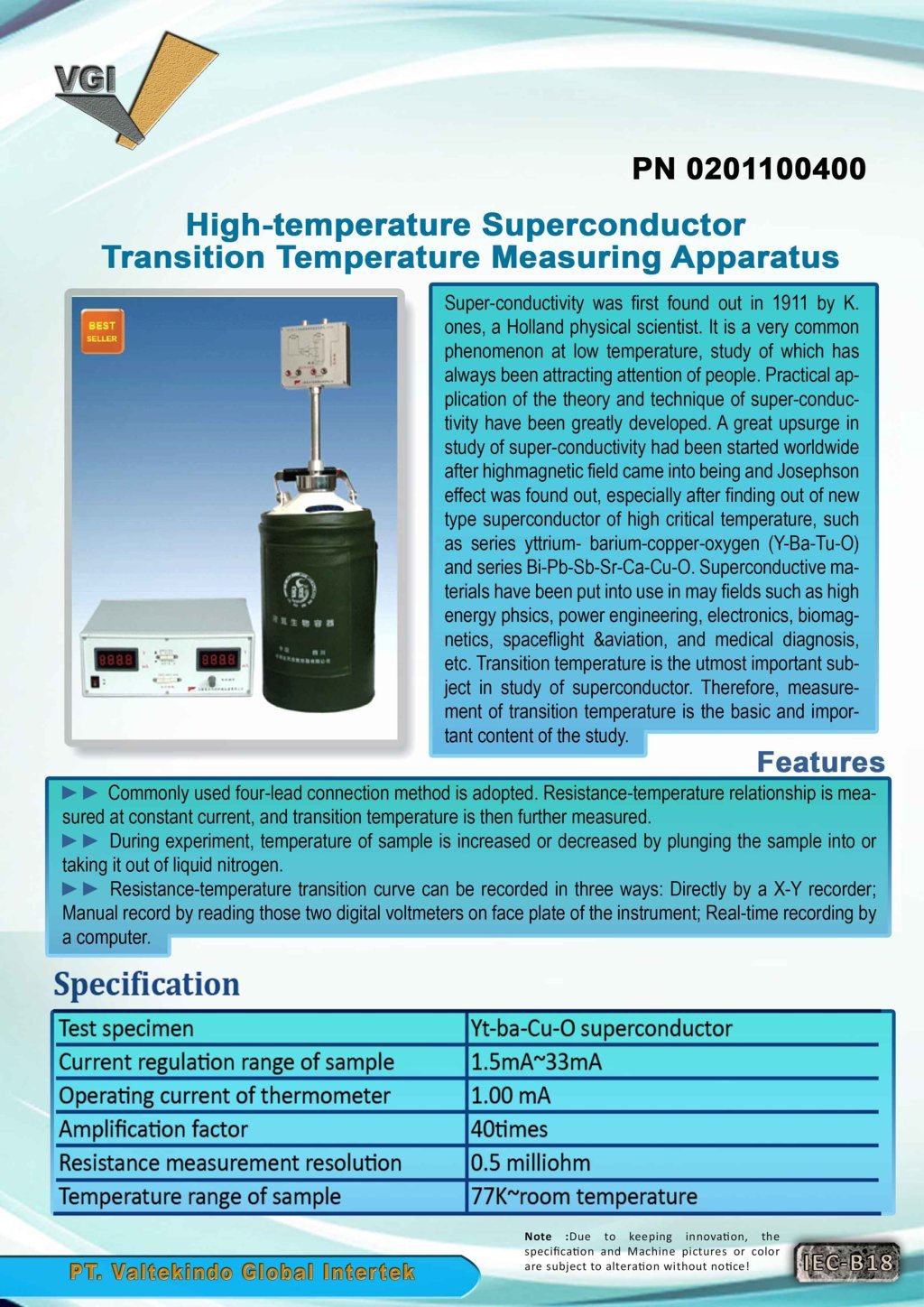

High Temperature Superconductor Transition Temperature Measurement Apparatus

DESCRIPTION / TECHNICAL SPECIFICATIONS

Introducing an essential experimental system for demonstrating one of the most fascinating phenomena in modern physics high-temperature superconductivity This apparatus is designed to allow students to directly and accurately measure the critical transition temperature (Tc) of a YBCO (Yttrium-Barium-Copper-Oxide) superconductor It is an indispensable platform for any laboratory wanting to provide hands-on experience in the cutting-edge fields of solid-state physics and materials science

The experiment utilizes the commonly used four-lead connection (four-probe method) for precision resistance measurement Students will learn how to pass a stable constant current through the superconductor sample while simultaneously measuring the voltage drop across it to determine its resistance This method effectively eliminates errors caused by lead and contact resistance

The experimental process involves cooling the sample by plunging it into liquid nitrogen (77K) and then slowly allowing it to warm up to room temperature During this warming process resistance and temperature data are continuously recorded This apparatus offers outstanding flexibility in data recording allowing for manual readings from the two digital voltmeters on the front panel connection to an X-Y recorder for a direct analog plot or real-time recording via a computer interface

The true moment of discovery occurs during data analysis By plotting resistance as a function of temperature students will witness a sharp and dramatic drop in resistance to near-zero as the sample reaches its critical transition temperature This clear graph provides unforgettable visual proof of the transition into the superconducting state a profound quantum mechanical phenomenon

Built to provide accurate and repeatable results the system includes everything needed for a successful experiment including the YBCO test specimen a regulated current source a signal amplifier and high-resolution measurement circuitry It transforms the abstract concept of superconductivity into a tangible measurable and understandable laboratory experience

Overall this apparatus is an immensely powerful teaching tool It not only demonstrates a Nobel Prize-winning phenomenon but also trains students in industry-standard precision measurement techniques and data analysis It is a fundamental investment for any physics engineering or materials science department committed to modern science education
