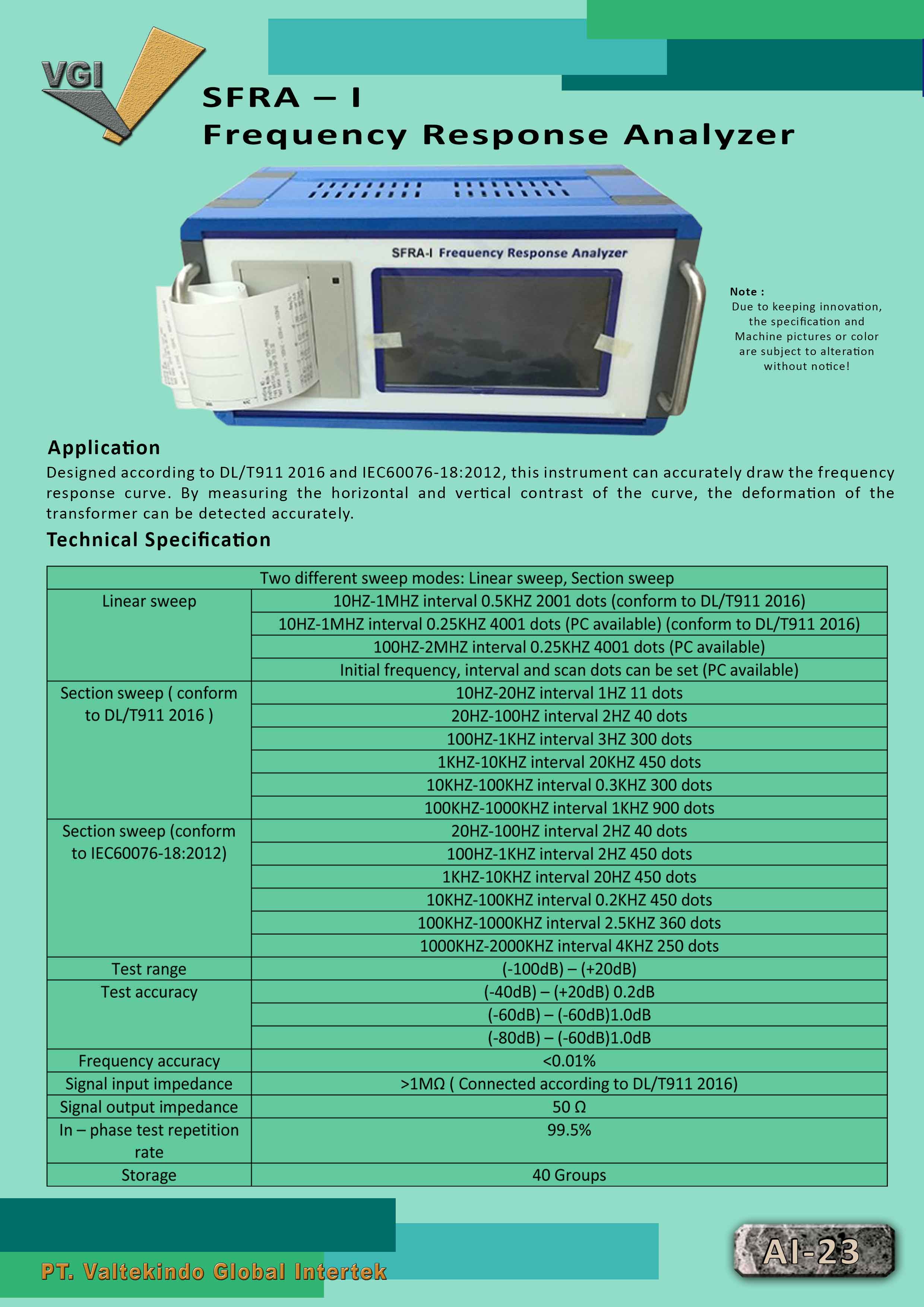

High-Quality Frequency Response Analyzer for Precision Signal and System Analysis

DESCRIPTION / TECHNICAL SPECIFICATIONS

Ensure the reliability and integrity of your power transformers with the most advanced diagnostic technology in the electrical industry. This frequency response analyzer is meticulously designed in accordance with DL/T911 2016 and IEC60076-18:2012 international standards, making it the most accurate solution for detecting winding deformations, mechanical shifts, and internal structural damages in transformers. By accurately drawing frequency response curves, this instrument allows technicians to perform horizontal and vertical contrast measurements to identify even the slightest anomalies in your valuable assets.

This instrument offers exceptional flexibility with two primary sweep modes: Linear Sweep and Section Sweep. A broad frequency range from 10Hz to 2MHz, featuring thousands of scanning dots, ensures the collected data is highly detailed and comprehensive. The ultra-high frequency accuracy of less than 0.01%, combined with an expansive test range of up to +20dB, provides full confidence in every analysis result. Equipped with internal storage for up to 40 data groups, this tool is highly efficient for routine monitoring and intensive technical audits.

The ergonomic device design is supported by high signal input impedance and an in-phase test repetition rate of 99.5%, guaranteeing data stability even in challenging field environments. Implementing this technology is not just an investment in testing equipment but a strategic preventive measure to avoid costly system failures and ensure continuity of energy distribution in modern industrial facilities.
