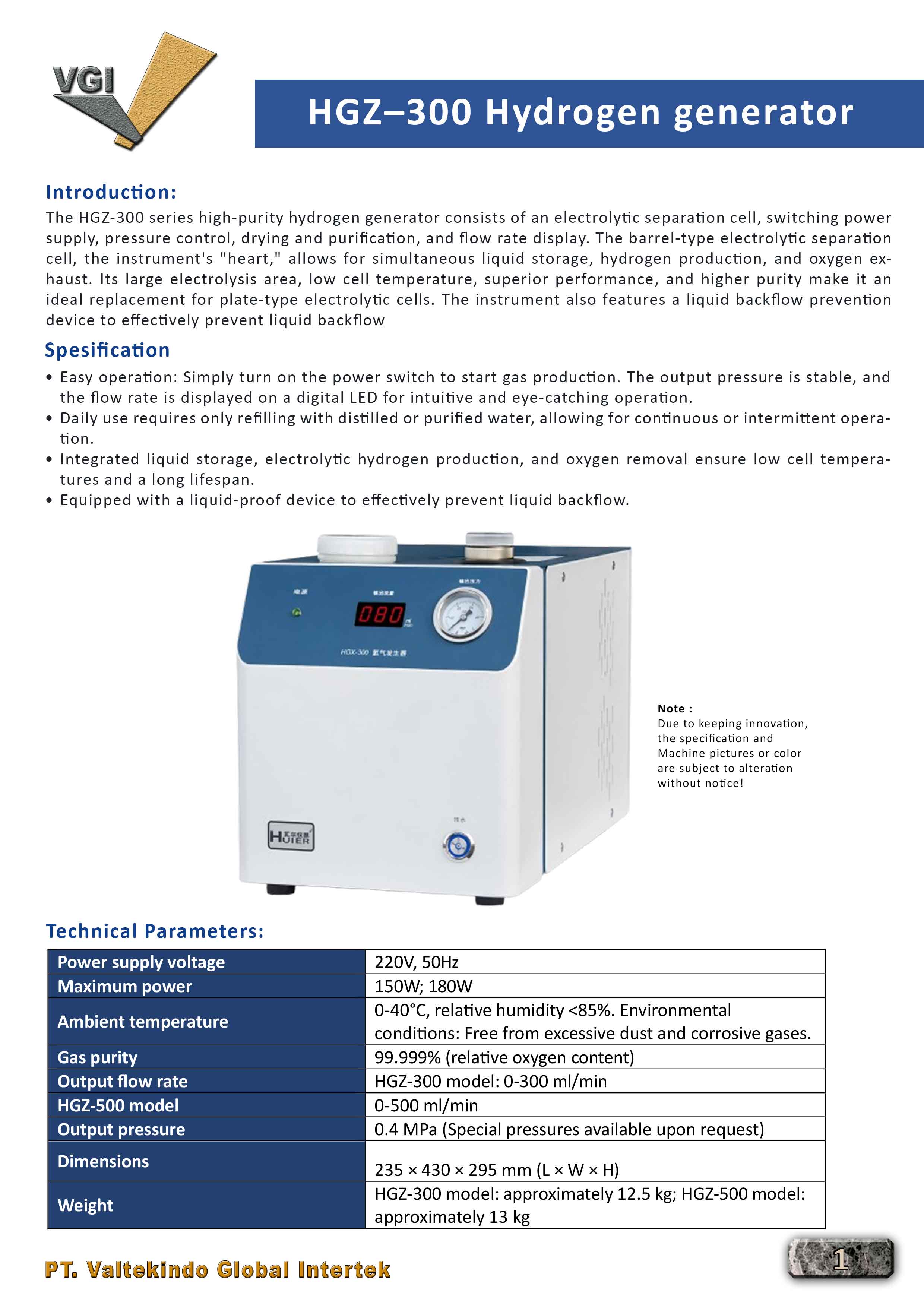

High-Purity Hydrogen Generator: A Stable, Safe, and Efficient Gas Supply Solution

DESCRIPTION / TECHNICAL SPECIFICATIONS

Reliable and Efficient High-Purity Hydrogen Gas Supply Solution for Your Operations

In industrial testing facilities, quality control workflows, and analytical laboratories, a dependable supply of high-purity hydrogen gas with stable pressure is essential to maintain smooth operational performance. This High-Purity Hydrogen Generator is engineered as an advanced on-site gas generation unit that integrates an electrolytic separation cell, switching power supply, pressure control system, drying and purification module, and digital flow rate display into one compact instrument.

Advanced Barrel-Type Electrolytic Cell Technology At the core of this hydrogen generator is its barrel-type electrolytic separation cell, which enables simultaneous liquid storage, electrolytic hydrogen production, and oxygen exhaust. Serving as an ideal replacement for conventional plate-type electrolytic cells, this barrel-type design provides a large electrolysis area, low operating cell temperature, superior overall performance, and higher gas purity. The seamless integration of liquid storage, hydrogen generation, and oxygen removal ensures consistently low cell temperatures and an extended service lifespan.

Effortless Operation and Low Daily Maintenance Built for operational convenience, gas production starts simply by turning on the power switch. The system maintains a stable output pressure while displaying the real-time flow rate on an intuitive, easy-to-read digital LED screen. Daily operation requires only refilling with distilled or purified water, offering full flexibility for either continuous or intermittent operation depending on your workflow requirements. For enhanced system protection, the generator is equipped with a dedicated liquid-proof backflow prevention device that effectively prevents liquid backflow during operation.

Key Product Highlights:

• Ultra-High Gas Purity: Delivers purified hydrogen gas up to 99.999% purity (relative oxygen content).
• Superior Electrolytic Performance: Barrel-type separation cell features a large electrolysis area that keeps cell temperatures low and maximizes equipment longevity.
• Intuitive Digital Monitoring: Features an eye-catching digital LED flow rate display paired with stable output pressure control.
• Built-In Backflow Protection: Equipped with a reliable liquid backflow prevention device to safeguard downstream processes.
• Flexible Operating Modes: Supports both continuous and intermittent operation using only distilled or purified water for daily refills.

Technical Parameters:

• Power Supply Voltage: 220V, 50Hz
• Maximum Power Consumption: 150W; 180W
• Ambient Operating Conditions: Temperature range of 0–40°C, relative humidity <85%, in an environment free from excessive dust and corrosive gases
• Gas Purity: 99.999% (relative oxygen content)
• Output Flow Rate: Available in 0–300 ml/min and 0–500 ml/min capacity configurations
• Output Pressure: 0.4 MPa (custom pressure configurations available upon request)
• Dimensions (L × W × H): 235 × 430 × 295 mm
• Net Weight: Approximately 12.5 kg to 13 kg (depending on flow rate configuration)

Upgrade Your On-Site Hydrogen Generation System Today Ensure safe, consistent, and cost-effective hydrogen gas production for your facility with our high-purity electrolytic hydrogen generator. Contact our technical specialists today to discuss your flow rate and pressure requirements or to request a detailed quotation.
