Heavy Duty Multi Blade Rip Saw Specifications: Powerful Motor for Unlimited Production

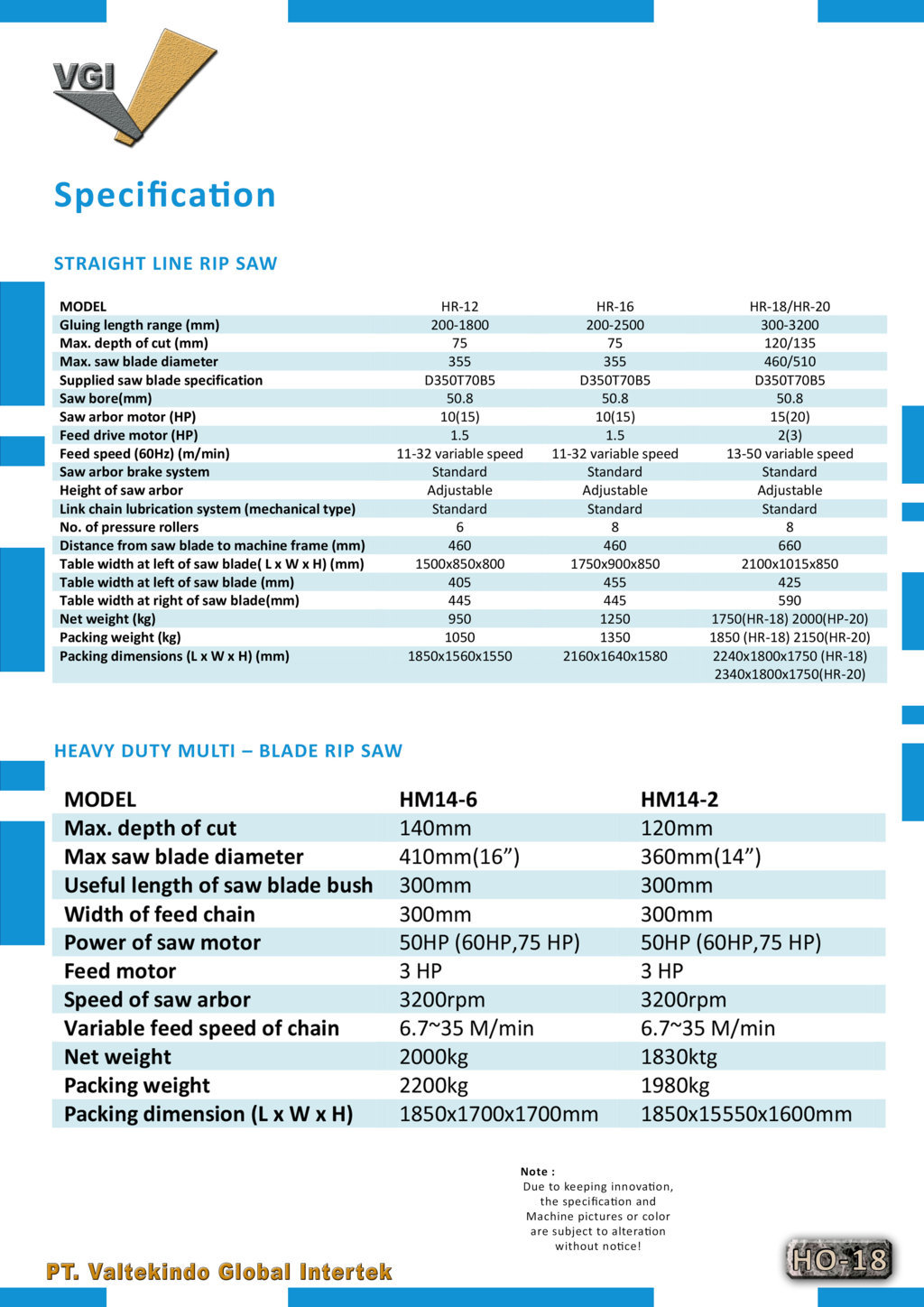

DESCRIPTION / TECHNICAL SPECIFICATIONS

In large-scale woodworking industries, motor performance is the heart of every operation. Our Heavy Duty Multi Blade Rip Saw (HM14 series) features main saw motors ranging from 50 HP up to 75 HP, delivering exceptional torque to split dense hardwoods up to 140 mm thick continuously. Driven by a 3 HP feed motor, the machine ensures a steady material flow through the blades with variable feed speeds ranging from 6.7 to 35 meters per minute.

The machine's ruggedness lies not just in its power, but in technical details that guarantee precision and long-term durability. The link chain is manufactured from specialized cast iron with a breaking strength of 24,000 kg, running on alloy steel feed rails hardened to over HRC 50 for maximum wear resistance. With a net weight of up to 2000 kg, operational stability remains unwavering even at spindle speeds of 3200 rpm. This is a "limitless" production solution, combining massive motor power with a triple-layered anti-kickback safety system to meet global manufacturing standards.
