Gear Head Drilling and Tapping Machine: An Efficient Drilling and Tapping Solution for Manufacturing

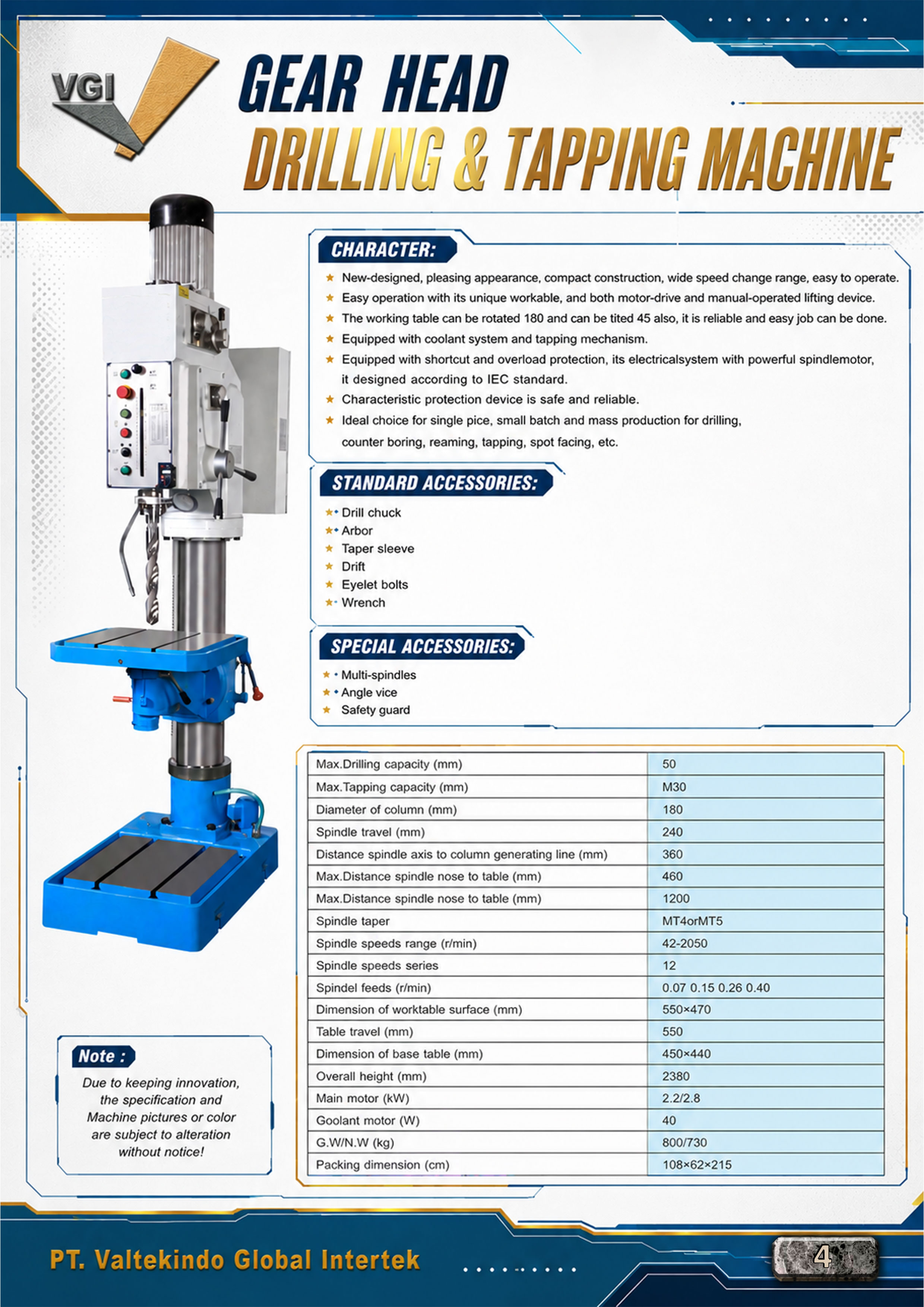

DESCRIPTION / TECHNICAL SPECIFICATIONS

Integrated Drilling and Tapping Solution for Industrial Manufacturing

In modern manufacturing plants, metalworking facilities, and industrial workshops, precision and operational efficiency are essential to maintaining high productivity. The Gear Head Drilling & Tapping Machine is engineered as a reliable, heavy duty machine tool solution designed to handle diverse machining requirements, ranging from single piece fabrication and small batch runs to continuous mass production.

Beyond standard drilling and internal thread tapping operations, this versatile machine is ideally suited for a wide array of metalworking applications including counter boring, reaming, and spot facing. Its multifunctional capability allows production lines to execute multiple machining processes within a single, compact unit.

Key Features for Enhanced Production Efficiency:

• Compact Construction and User Friendly Operation: Featuring a modern appearance and compact structural design, the machine offers straightforward operation supported by a reliable lifting device that functions via both motor drive and manual operation.
• Highly Flexible Worktable: The worktable features a 550x470 mm surface dimension with 550 mm of table travel. Capable of rotating 180 degrees and tilting up to 45 degrees, the table enables operators to position workpieces at complex angles securely and effortlessly.
• Wide Speed Range and High Machining Capacity: Delivers a maximum drilling capacity of 50 mm and a maximum tapping capacity of M30. Equipped with a 12 series spindle speed range from 42 to 2050 r/min and four spindle feed rates (0.07, 0.15, 0.26, and 0.40 r/min), operators can achieve optimal cutting parameters across various material specifications.
• Integrated Coolant System and Tapping Mechanism: Comes standard with a built in coolant system (40 W coolant motor) and dedicated tapping mechanism to maintain proper thermal control, extend tooling life, and ensure consistent hole and thread quality.
• IEC Standard Electrical and Safety Protection: Built with a powerful 2.2/2.8 kW main spindle motor, the electrical system is engineered in full compliance with IEC standards. It incorporates safe and reliable protection devices, including built in shortcut and overload protection to safeguard both the operator and the equipment during intensive operations.

Technical Specifications:

• Max. Drilling Capacity: 50 mm
• Max. Tapping Capacity: M30
• Column Diameter: 180 mm
• Spindle Travel: 240 mm
• Distance Spindle Axis to Column Generating Line: 360 mm
• Max. Distance Spindle Nose to Table: 460 mm / 1200 mm
• Spindle Taper: MT4 or MT5
• Spindle Speeds Range: 42 to 2050 r/min (12 steps)
• Worktable Surface Dimension: 550 x 470 mm
• Base Table Dimension: 450 x 440 mm
• Overall Height: 2380 mm
• Main Motor Power: 2.2 / 2.8 kW
• Gross Weight / Net Weight: 800 / 730 kg

Standard and Special Accessories: To support immediate operational readiness, each unit includes standard accessories: drill chuck, arbor, taper sleeve, drift, eyelet bolts, and wrench. Optional special accessories including multi spindles, angle vice, and safety guard are also available to further customize the machine for specialized production requirements.

Consult Your Industrial Machinery Requirements

Maximize machining accuracy and throughput in your manufacturing facility with the right equipment configuration. Contact our technical team today for detailed product information, application consultation, or to request a tailored quotation for your industrial operations.
