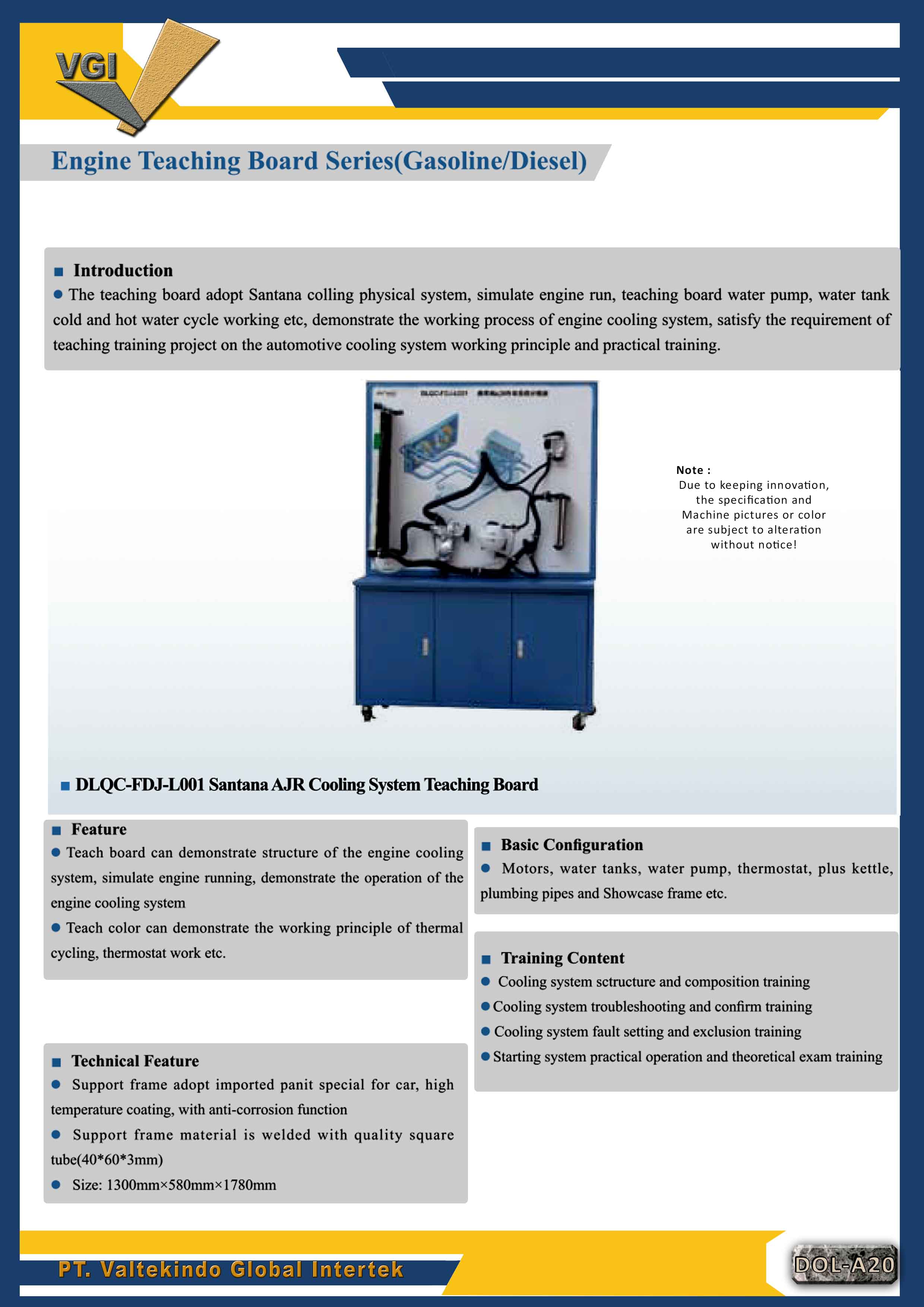

For Sale: Santana AJR Cooling System Teaching Board: Visualization of the Cooling System

DESCRIPTION / TECHNICAL SPECIFICATIONS

Maintaining engine temperature stability is the most crucial aspect of vehicle durability. The Santana AJR Cooling System Teaching Board serves as an automotive laboratory solution designed to provide a real-world visualization of gasoline and diesel engine cooling system workflows. This training board adopts the authentic physical cooling system of a Santana AJR to simulate engine operations, from cold water circulation to dynamic hot water cycles, making it a mandatory training tool for Vocational High Schools (SMK) and mechanical training institutes.

The teaching board is capable of demonstrating the entire cooling system structure, including the operation of the water pump, water tanks (radiator), and the crucial function of the thermostat. Through the use of informative color-coding, trainees can easily understand thermal cycling principles and how the thermostat regulates coolant flow based on engine temperature. A standout feature of this device is the Cooling System Fault Setting capability, allowing instructors to simulate system malfunctions to enhance students' diagnostic and troubleshooting skills in a controlled and safe environment.

Technically, this equipment is built to robust industrial standards. The support frame utilizes high-quality square tubing (40x60x3mm), precision-welded and coated with high-temperature resistant, anti-corrosion automotive paint. With dimensions of 1300x580x1780mm and equipped with mobile casters, the unit offers excellent flexibility for movement within the workshop. The complete configuration—including drive motors, water tanks, thermostats, expansion tanks (plus kettle), and plumbing pipes—ensures a comprehensive hands-on learning experience for aspiring professional automotive technicians.
