Flow Process Control 3 Demonstration Equipment for Sale – PID Integration System for Industrial Automation Labs

DESCRIPTION / TECHNICAL SPECIFICATIONS

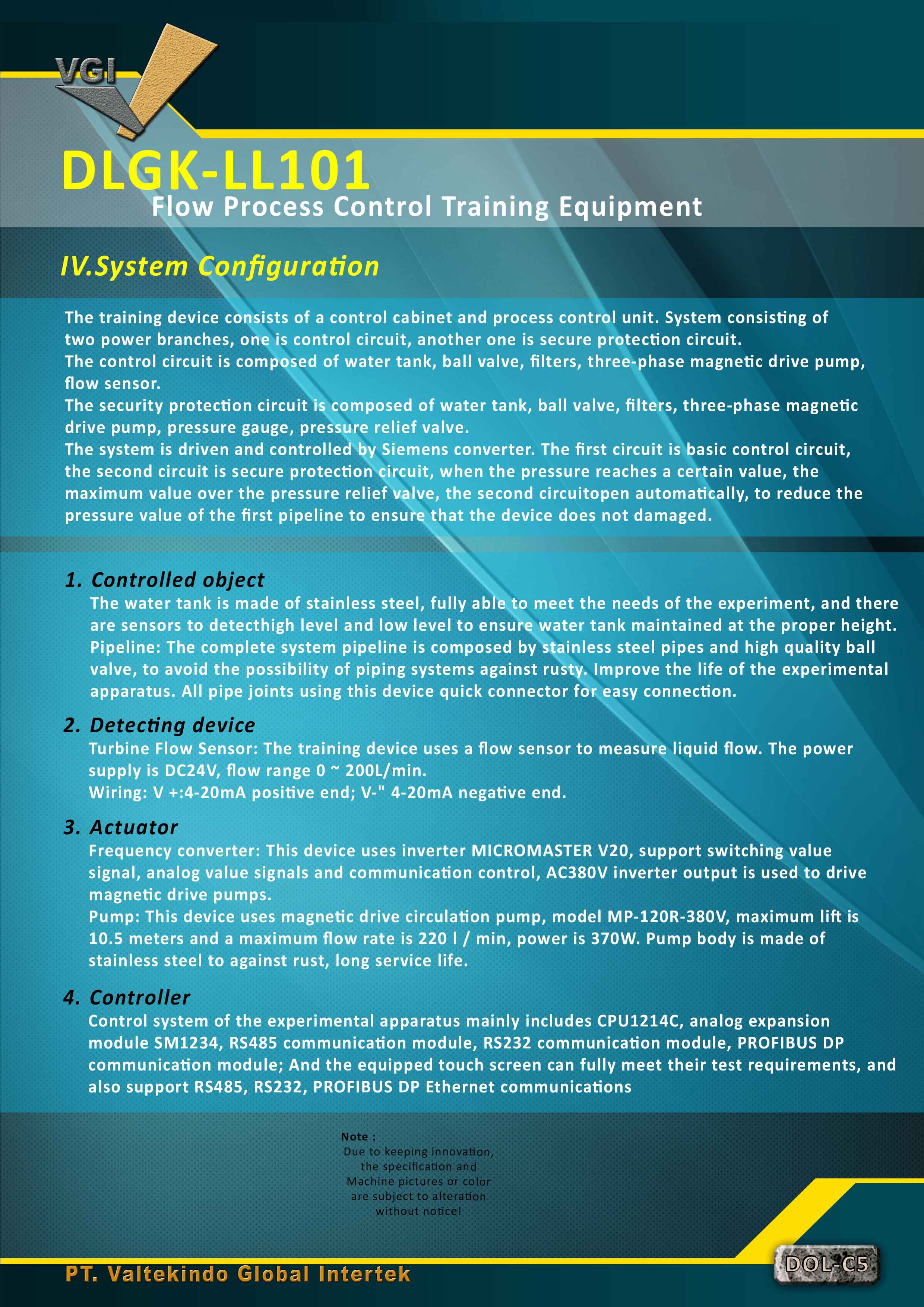

This flow process control training system is designed as an advanced educational platform for understanding the dynamics of fluid control within an industrial context. The training tool integrates precision mechanical components with sophisticated electronic systems to provide a realistic closed-loop control simulation. The unit consists of a central control cabinet and a process control unit operating through two primary power branches: a basic control circuit and a secure protection circuit. Utilizing high-quality stainless steel water tanks and a three-phase magnetic drive pump, the system ensures long-term durability and corrosion resistance, setting an ideal standard for chemical engineering, mechatronics, and industrial automation laboratories.

The core strength of this system lies in the integration of the latest programmable logic controllers (PLC) supporting various analog expansion modules and communication protocols such as RS485, RS232, PROFIBUS DP, and Ethernet. Users can explore PID control algorithms through an intuitive touch screen interface to manage flow parameters in real-time. Operational safety is a priority, featuring an automatic pressure relief valve that activates when pressure reaches maximum thresholds, protecting the integrity of the piping system and instrumentation. This tool allows students to practice detection techniques using turbine flow sensors and actuator modulation using industrial-grade frequency converters.
