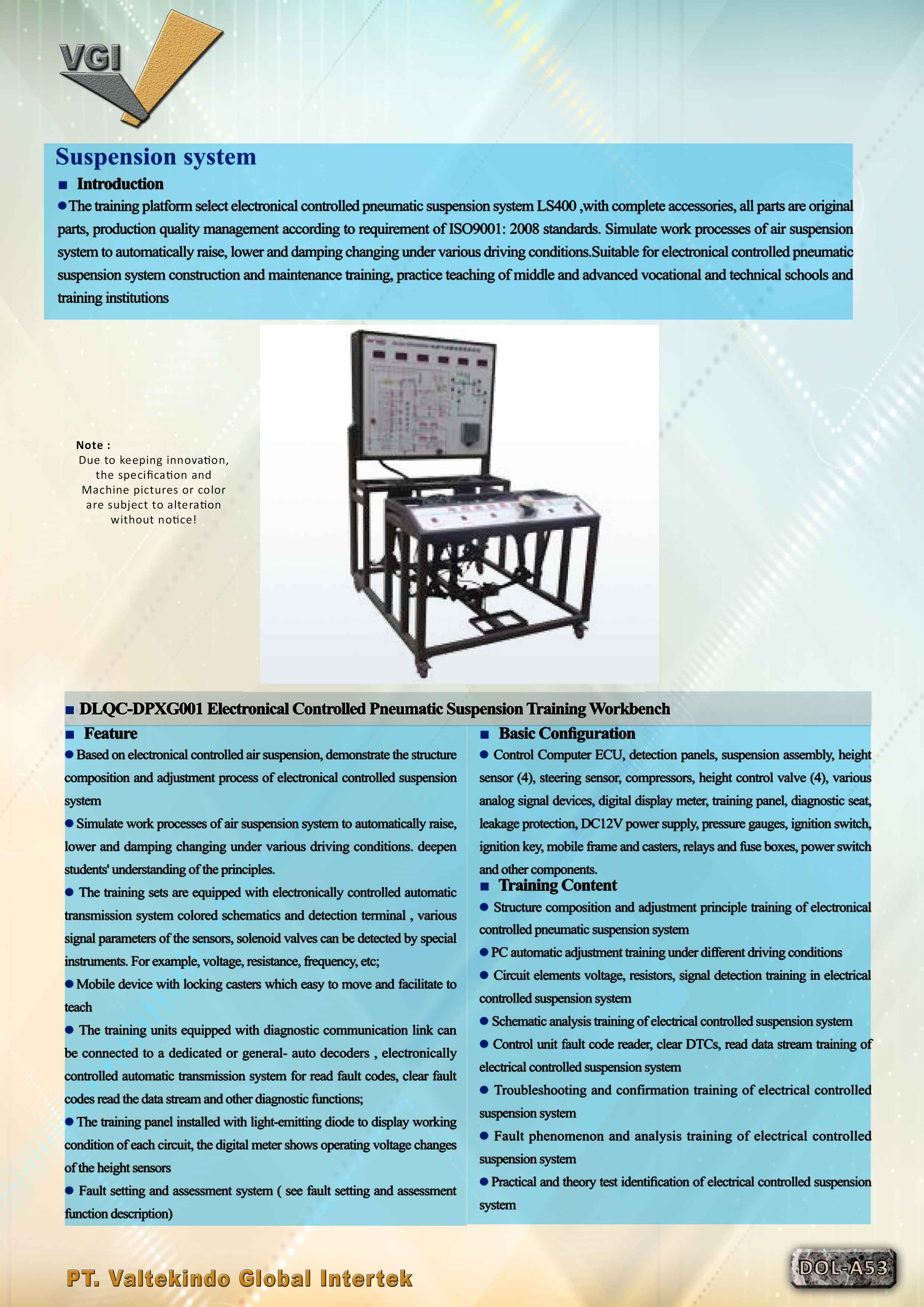

Electonical Controlled Pneumatic Suspension Training Wokbench

DESCRIPTION / TECHNICAL SPECIFICATIONS

Ø  Introduction

·         The training platform select electronical controlled pneumatic suspension system LS400, with complete accessories, all parts are original parts, production quality management according to requirement of ISO9001:2008 standards. Simulate work processes of air suspension system to automatically raise, lower and damping changing under various driving conditions. Suitable for electronical controlled pneumatic suspension system construction and maintenance training, practice teaching of middle and advanced vocational and technical schools and training institutions

Ø  Feature

·         Based on electronical controlled air suspension, demonstrate the structure composition and adjustment process of electronical controlled suspension system

·         Simulate work process of air suspension system to automatically raise, lower and damping changing under various driving conditions, deepen student’s understanding of he principle.

·         The training sets are equipped with electronically controlled automatic transmission system colored schematics and detection terminal, various signal parameters of the sensors, solenoid valves can be detected by special instruments. For example, voltage ,resistance, frequency, etc.

·         Mobile device with locking casters which easy to move and facilitate to teach

·         The training units equipped with diagnostic communication link can be connected to a dedicated or general-auto decoders, electronically controlled automatic transmission system for read fault codes, clear fault codes read the data stream and other  diagnostic functions;

·         The training panel installed with light-emitting diode to display working condtion of each circuit, the signal meter shows operating voltage changes of the height sensors

·         Fault setting and assessment system (see fault setting and assessment function description)

Ø  Basic Configuration

·         Control Computer ECU, detection panels, suspension assembly, height sensor (4), steering sensor, compressors, height control valve (4), various analog  signal devices, digital display meter, training panel, diagnostic seat, lekage protection, DC12V power supply, pressure gauges, ignition switch, ignition key, mobile frame and casters, relay and fuse boxes, power switch and other components.

Ø  Training Content

·         Structure composition and adjustment principle training of electronical controlled pneumatic suspension system

·         PC automatic adjsument training under different driving conditions

·         Circuit elements voltage,resistors,signal detection training in electrical controlled suspension system

·         Schematics analysis training of electrical controlled suspension system

·         Control unit fault code reader, clear DTCs, read data stream training of electrical controlled suspension system

·         Trouble shooting and confirmation training of electrical controlled suspension system

·         Fault phenomenon and analysis training of electrical controlled suspension system

·         Practical and theory test identification of electrical controlled suspension system
