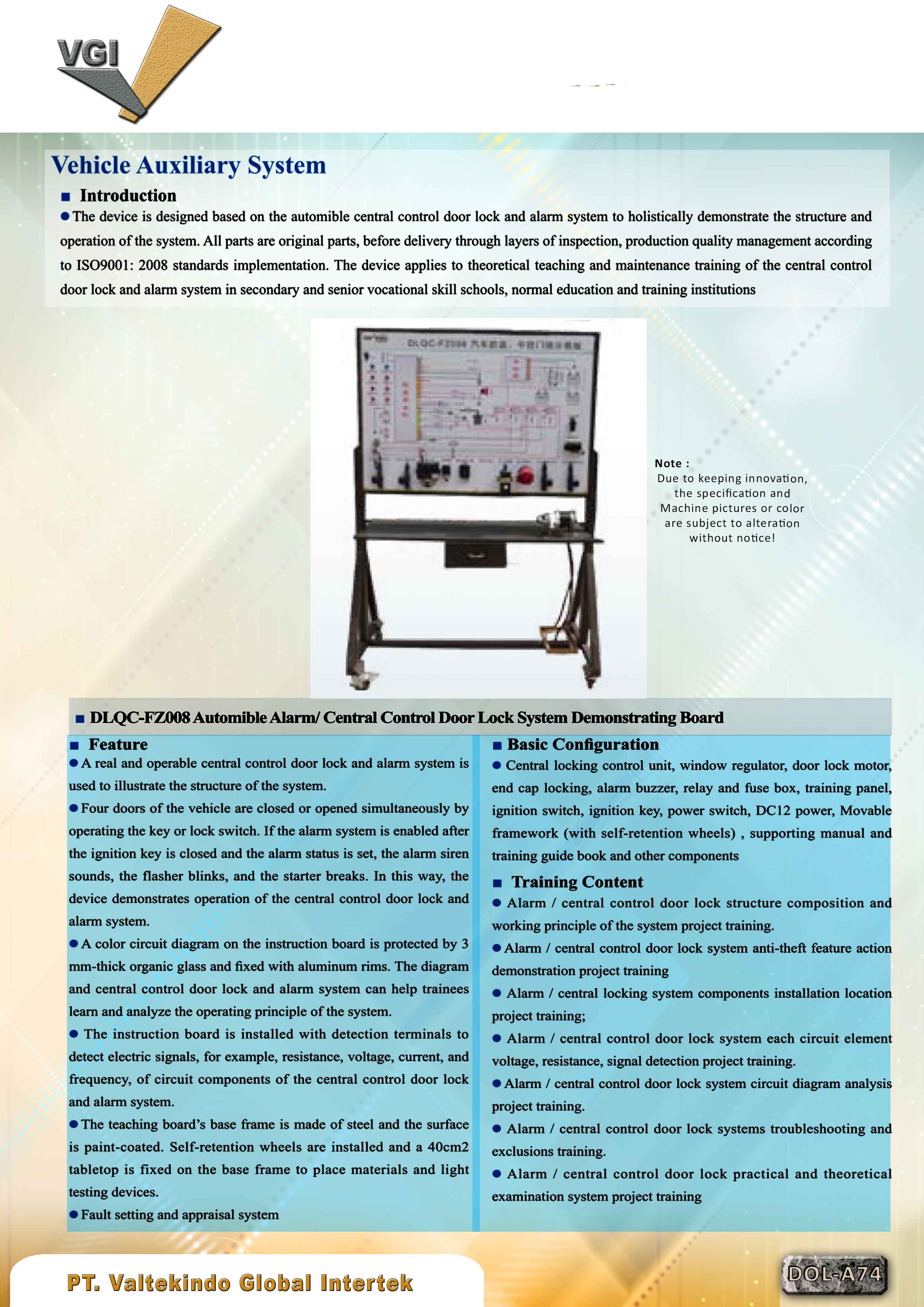

Door Automobile Alarm Central Control Door Lock System Demonstrating Board

DESCRIPTION / TECHNICAL SPECIFICATIONS

Ø  Introduction

·         The device is designed based on the automobile central control door lock and alarm system to holistically demonstrate the structure and operation of the system. All parts are original parts, before delivery through layers of inspection, production quality management according to ISO9001:2008 standards implementation. The device applies to theoretical teaching and maintenance training of the central control door lock and alarm system in secondary and senior vocational skill schools, normal education and training institutions

Ø  Feature

·         A real and operable central control door lock and alarm system Is used to illustrate the structure of the system.

·         Four doors of the vehicle are closed or opened simultaneously by operating the key or lock switch. If the alarm system is enable after the ignition key is closed and the alarm status is set, the alarm siren sounds, the flasher blinks, and the starter breaks. In this way, the device demonstrates operation of the central control door lock and alarm system.

·         A color circuit diagram on the instruction board is protected by 3mm-thick organic glass and fixed with aluminum rims. The diagram and central control lock and alarm system can help tranees learn and analyze the operating principle of the system.

·         The instruction board is installed with detection terminals to detect electric signals, for example, resistance, voltage, current, and frequency, of circuit components of the central control door lock and alarm system.

·         The teaching board’s base frame is made of steel and the surface is paint-coated. Self-retention wheels are installed and a 40cm2 tabletop is fixed on the base frame to place materials and light testing devices.

·         Fault setting and appraisal system.

Ø  Basic Configuration

·         Central locking control unit, window regulator, door lock motor, end cap locking, alarm buzzer, relay and fuse box, training panel, ignition switch, ignition key, power switch, DC12 power, Movable frame work (with self-retention wheels), supporting manual and training guide book and other components.

Ø  Training Content

·         Alarm / central control door lock structure composition and working principle of the system project training.

·         Alarm / central control door lock system anti-theft feature action demonstrate training;

·         Alarm / central locking system components installation location project training.

·         Alarm / central control door lock system each circuit element voltage, resistance, signals detection project training

·         Alarm / central control door lock system circuit diagram analysis project training.

·         Alarm / central control door lock practical and theoretical examination system project training.
