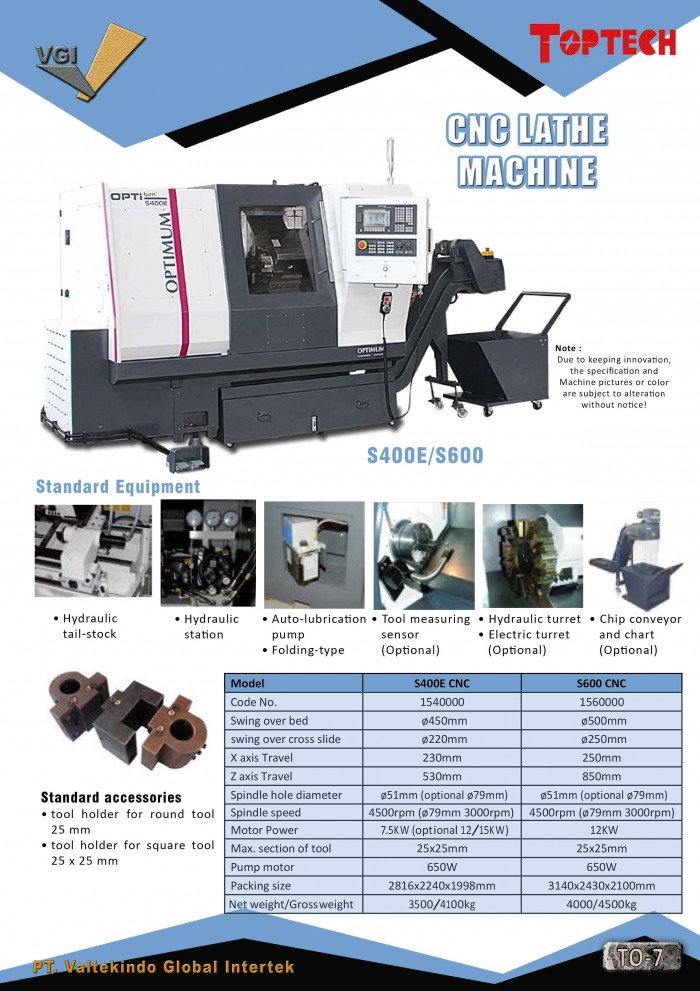

CNC Lathe Slant Bed
Click on the image to enlarge
FEATURE
DESCRIPTION / TECHNICAL SPECIFICATIONS
Standard accessories
·Tool holder for round tool 25 mm
·Tool holder for square tool 25x25mm
|
Model |
S400E CNC |
S600 CNC |
|
Code no. |
1540000 |
1560000 |
|
Swing over bed |
Ø450mm |
Ø500mm |
|
Swing over cross slide |
Ø220mm |
Ø250mm |
|
X axis travel |
230mm |
250mm |
|
Z axis travel |
530mm |
850mm |
|
Spindle hole diameter |
Ø51mm(optionalø79mm) |
Ø51mm(optionalø79mm) |
|
Spindle speed |
4500rpm (ø79mm 3000rpm) |
4500rpm (ø79mm 3000rpm) |
|
Motor power |
7.5kW (optional 12/15kW |
12kW |
|
Max. section of tool |
25x25mm |
25x25mm |
|
Pump motor |
650W |
650W |
|
Packing size |
2816x2240x1998mm |
3140x2430x2100mm |
|
Net weight/gross weight |
3500/4100Kg |
4000/4500Kg |
