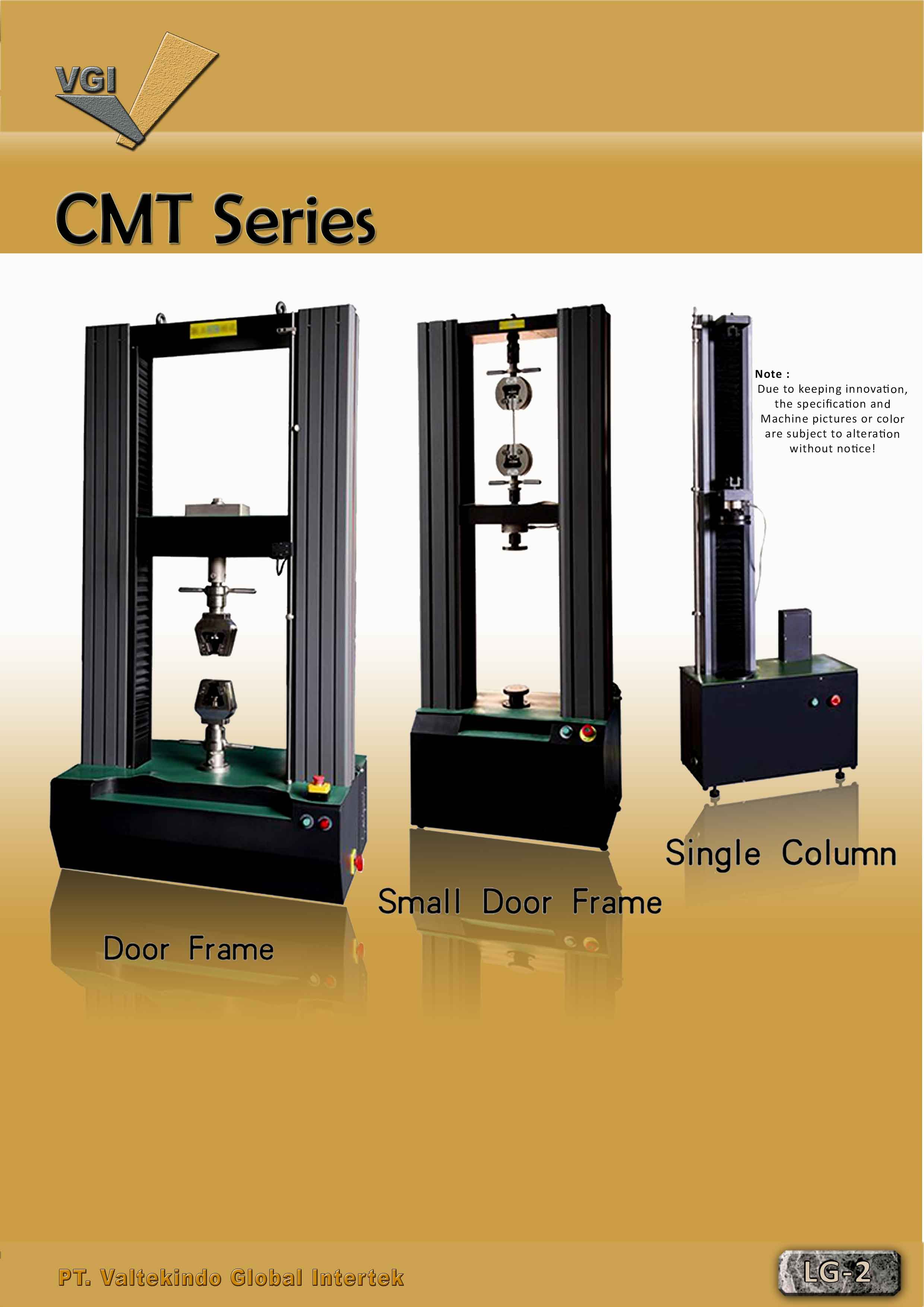

CMT Series: Electronic Universal Testing Machine with Computer Control

DESCRIPTION / TECHNICAL SPECIFICATIONS

This universal testing machine offers a very wide testing capacity range, capable of delivering a maximum test force from 0.1 kN up to 300 kN. With a precision class of 0.5, this equipment guarantees a high level of measurement accuracy, with an indicating error of test force within ±0.5% to ±1.0% of the displayed value. Its broad test force measuring range, covering 0.2% to 100% of the maximum capacity, ensures reliable and trustworthy results for testing materials with various strength levels.

In terms of speed and motion control, this machine features a flexibly adjustable speed range from 0.001 mm/min up to 500 mm/min, with a speed accuracy maintained within ±0.5%. Its motion control capability is highly precise, supported by a displacement resolution as fine as 0.001mm. This allows for the accurate and consistent simulation of various testing conditions, complying with strict testing standards for a diverse range of materials.

Regarding deformation measurement, the system can record changes in material shape with an indicating error of only ±0.5% of the stated value. The measurement range for large deformation spans from 10 mm to 800 mm, providing the flexibility to test elastic samples. The testing workspace is also adaptively designed, with an effective test width varying from 400 mm to 600 mm and an effective tensile and compression stroke that can reach 800 mm, which can be further customized according to specific user requirements.

For its operation, the machine requires varying electrical power depending on its capacity, ranging from 220V for smaller models to 380V for high-capacity models. It is designed to operate optimally in a working environment with a room temperature of up to 35°C and relative humidity below 80%. Operational stability is ensured by the machine's substantial weight, ranging from 150 kg to 1500 kg, which guarantees minimal vibration during the testing process.
