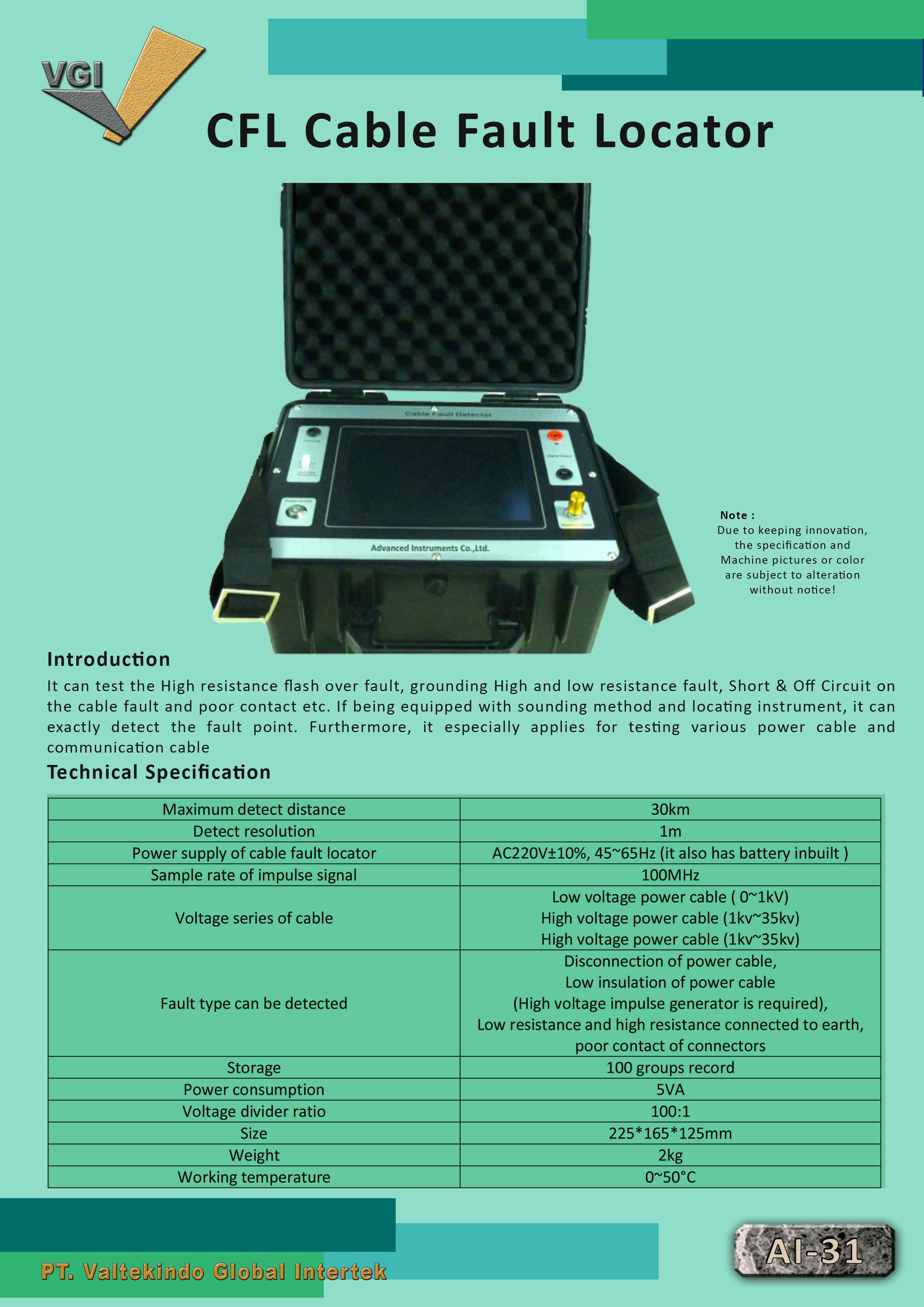

Cable Fault Locator
Click on the image to enlarge
FEATURE
DESCRIPTION / TECHNICAL SPECIFICATIONS
1.
Introduction
It can test the High resistance flash over fault, grounding High and low resistance fault, Short & Off Circuit on the cable fault and poor contact etc. If being equipped with sounding method and locating instrument, it can exactly detect the fault point. Furthermore, it especially applies for testing various power cable and communication cable.
2.
Technical
Specification
|
Maximum detect distance |
30km |
|
Detect resolution |
1m |
|
Power supply of cable fault locator |
AC220V±10%, 45~65Hz (it also has battery inbuilt ) |
|
Sample rate of impulse signal |
100MHz |
|
Voltage series of cable |
Low voltage
power cable ( 0~1kV) |
|
Fault type can be detected |
Disconnection of
power cable, |
|
Storage |
100 groups record |
|
Power consumption |
5VA |
|
Voltage divider ratio |
100:1 |
|
Size |
225*165*125mm |
|
Weight |
2kg |
|
Working temperature |
0~50°C |
