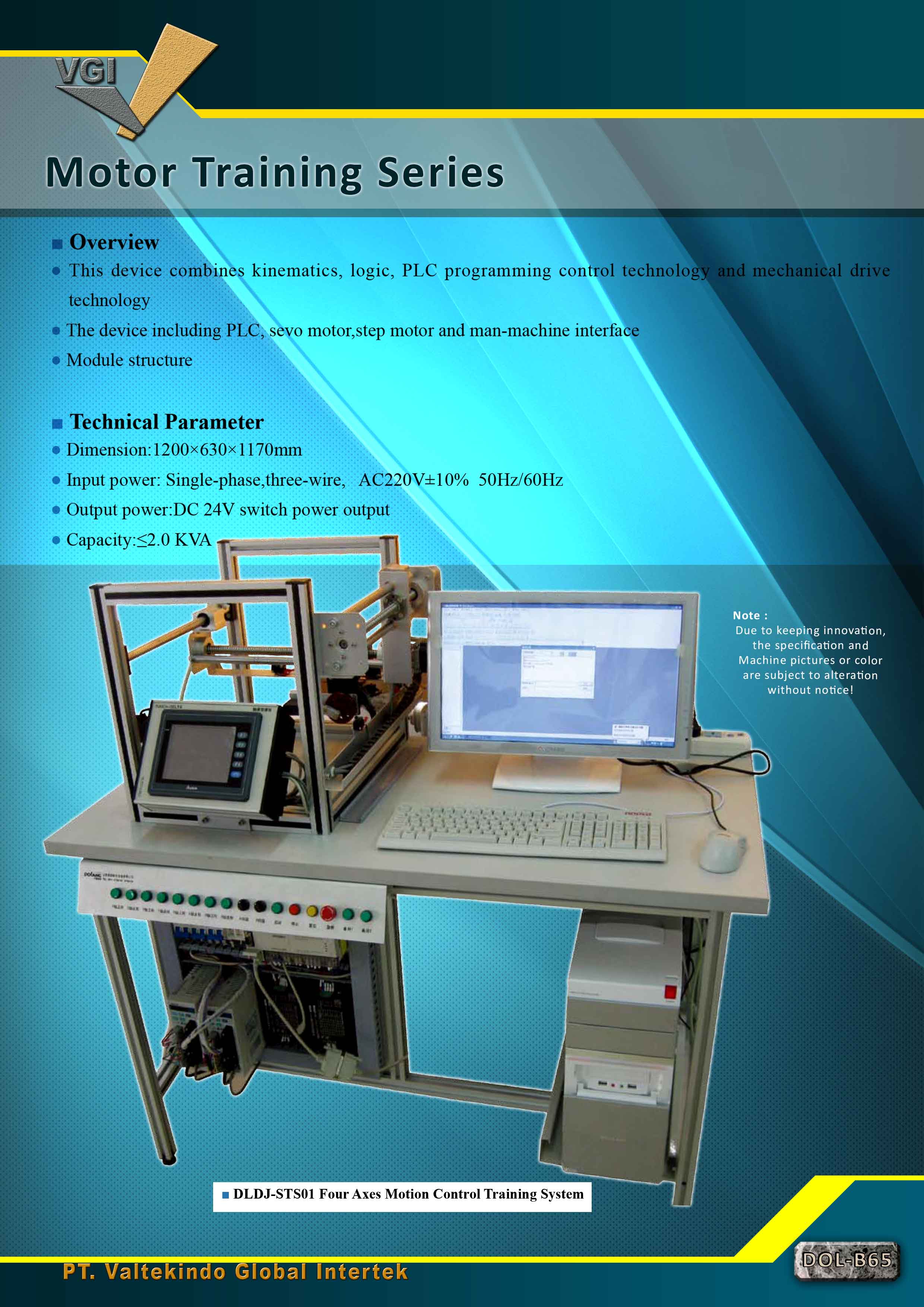

Automation Lab Solutions: Building Robotics Skills with a 4-Axis Control System

DESCRIPTION / TECHNICAL SPECIFICATIONS

Mastering motor control technology and motion systems is a fundamental pillar of modern engineering curricula and manufacturing industry requirements. This four-axis motion control training system serves as a comprehensive solution integrating various disciplines, from kinematics and programming logic to mechanical drive technology. The equipment is specifically designed to provide hands-on experience in operating and programming complex control systems, which form the core foundation of robotics and automated industrial machinery.

The system incorporates high-standard industrial components, including Programmable Logic Controllers (PLC), servo motors, and stepper motors. The use of an interactive Man-Machine Interface (HMI) allows users to monitor and control motion parameters in real-time. With its flexible modular structure, this device is ideal for studying how control algorithms are translated into precise physical movements across four coordinate axes.

Technically, the system operates on a standard single-phase AC 220V input, with a safe DC 24V switch power output for educational environments. An efficient power capacity of less than 2.0 KVA ensures energy efficiency while remaining powerful enough to run industrial workload simulations. Its ergonomic dimensions allow for easy placement in vocational high school (SMK) laboratories, universities, and corporate competency development centers.
