Automatic Transmission Hydraulic Test Equipment for Primary Transmission Diagnostics

DESCRIPTION / TECHNICAL SPECIFICATIONS

For most technicians, the automatic transmission remains a complex mystery. Now, it's time to turn that mystery into mastery. We introduce an advanced diagnostic laboratory for hydro-mechanical automatic transmissions. This is not just a model; it's an interactive test bench that allows students to 'see' directly into the hydraulic heart of the system as it operates—an experience impossible to gain from theory alone.

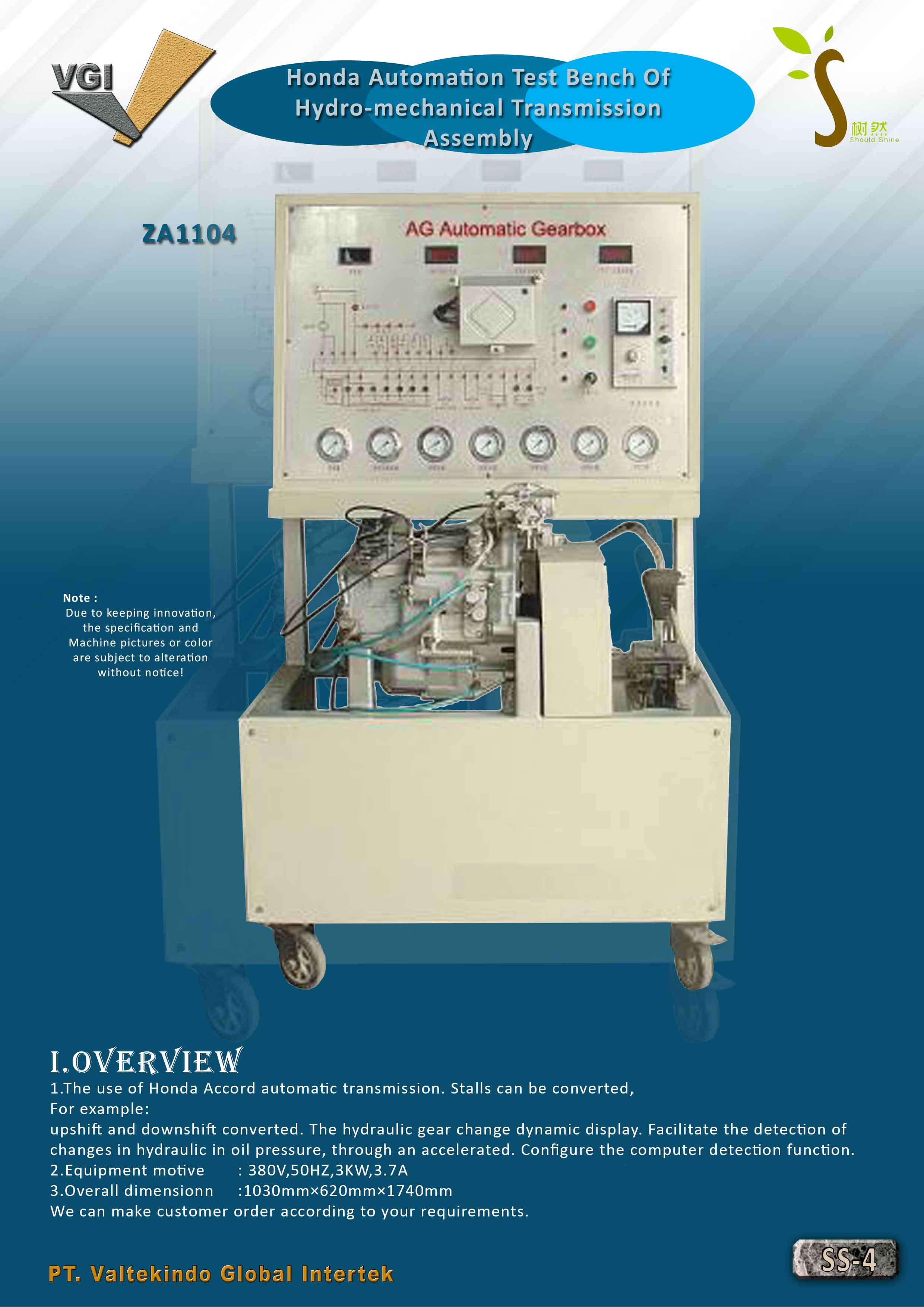

Powered by a robust 3-phase electric motor to simulate engine input, this training platform allows students to actively shift the gear selector (P-R-N-D). The magic happens at the control panel: students can watch in real-time on a bank of pressure gauges as the hydraulic pressure in each circuit rises and falls to actuate internal clutches and components. They can simulate upshifts, downshifts, and even stall conditions to understand complex fluid dynamics. The clear schematic diagram allows them to connect theory with the live pressure data, paving the way for accurate, data-driven diagnostics.

Expertise in automatic transmission diagnostics is one of the rarest and most valuable skills in the automotive industry. By investing in this test bench, your institution isn't just teaching how automatic gearboxes work; it's creating elite specialist technicians. Your graduates will have the confidence and competence to take on high-value jobs that other mechanics avoid, ensuring they become prized assets in any workshop.
