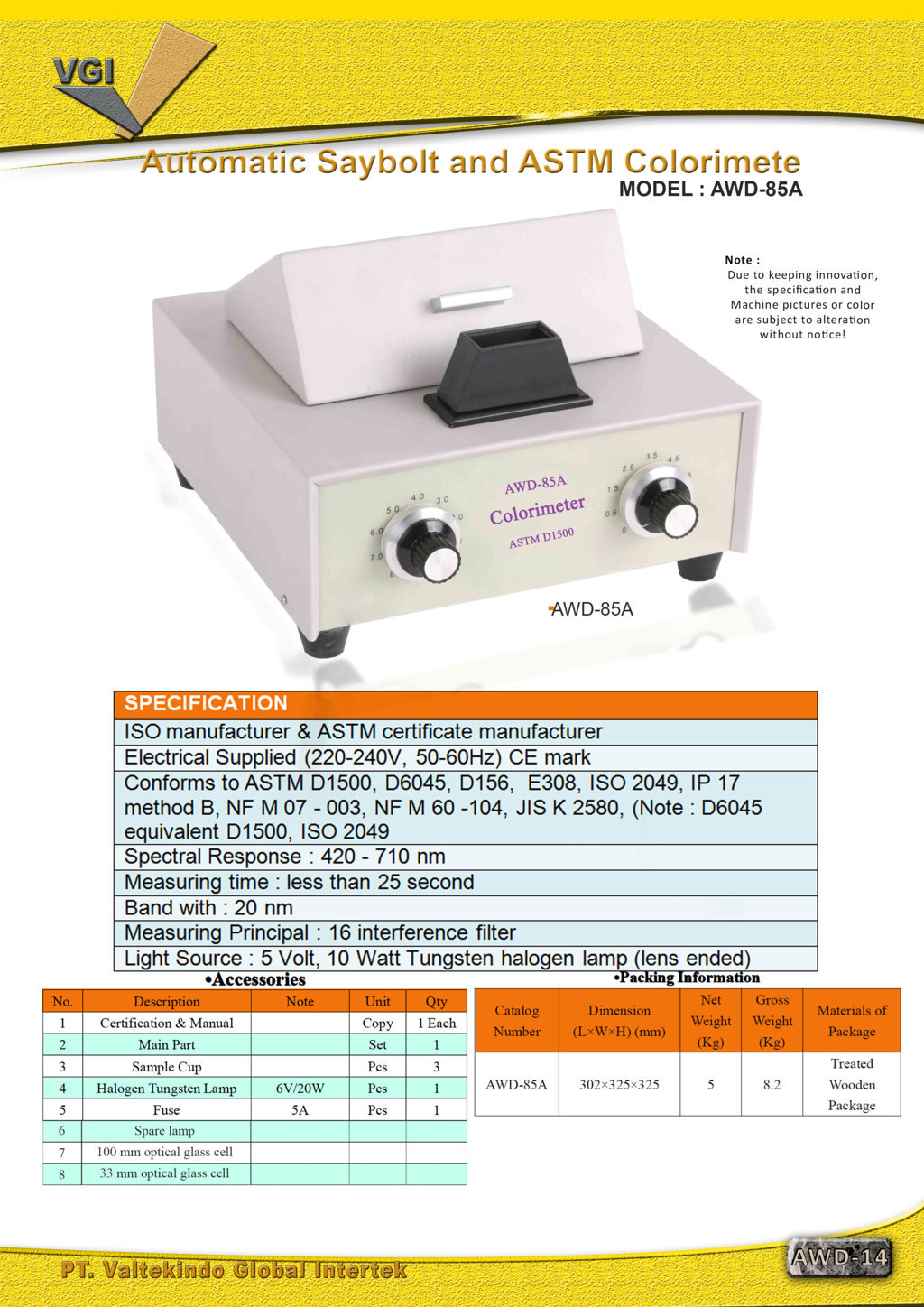

Automatic Saybolt and ASTM Colorimeter for Fast & Accurate Color Analysis

DESCRIPTION / TECHNICAL SPECIFICATIONS

Designed for precision and efficiency, this automatic colorimeter is the ideal solution for Saybolt and ASTM color analysis of petroleum products. This device is produced by an ISO manufacturer & ASTM certificate manufacturer, guaranteeing superior quality and reliability. With full conformance to a wide range of leading international standards such as ASTM D1500, D6045, D156, E308, ISO 2049, IP 17 method B, NF M 07 - 003, NF M 60 -104, and JIS K 2580, this instrument provides consistent and globally recognized results for quality control and product certification purposes.

The primary advantage of this instrument lies in its measurement speed and accuracy. The color analysis process can be completed in less than 25 seconds, significantly increasing laboratory productivity. This precise performance is based on a measuring principal using 16 interference filters. The device has a broad spectral response from 420 to 710 nm with a band with of 20 nm, ensuring comprehensive coverage for accurate color analysis.

To ensure stable and consistent illumination, the instrument utilizes a 5 Volt, 10 Watt Tungsten halogen lamp (lens ended) as its light source. The device has met European electrical safety standards with a CE mark, designed for an electrical supply of 220-240V, 50-60Hz, ensuring it can be easily integrated into various laboratories worldwide.

Each unit is delivered as a complete, ready-to-use package. The sales package includes the main part of the instrument , three sample cups , a spare halogen tungsten lamp , a 5A fuse , one spare lamp , as well as a 100 mm optical glass cell and a 33 mm optical glass cell. This comprehensive set of accessories ensures that users can begin testing immediately without needing additional components.

With a compact design measuring 302x325x325 mm and a net weight of just 5 kg, this instrument is perfectly suited for benchtop use without taking up significant space. To guarantee safety during transit, each unit is securely packed in a treated wooden package.
