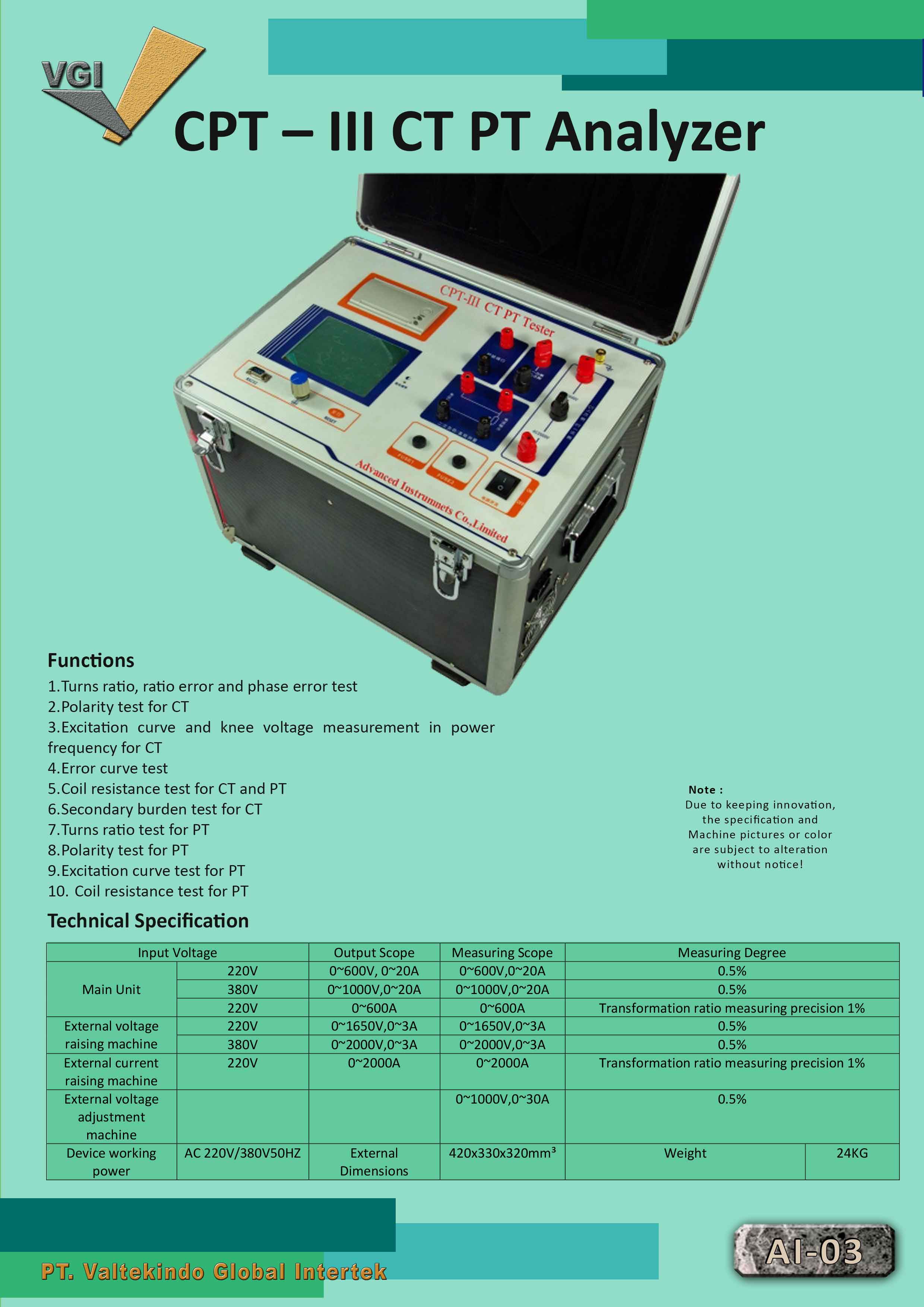

DESCRIPTION / TECHNICAL SPECIFICATIONS
1.
Functions
1. Turns ratio, ratio error and phase error test
2. Polarity test for CT
3. Excitation curve and knee voltage measurement in power frequency for CT
4. Error curve test
5. Coil resistance test for CT and PT
6. Secondary burden test for CT
7. Turns ratio test for PT
8. Polarity test for PT
9. Excitation curve test for PT
10. Coil resistance test for PT
2.
Technical
Specification
|
Input Voltage |
Output Scope |
Measuring Scope |
Measuring Degree |
||
|
Main Unit |
220V |
0~600V, 0~20A |
0~600V,0~20A |
0.5% |
|
|
380V |
0~1000V,0~20A |
0~1000V,0~20A |
0.5% |
||
|
220V |
0~600A |
0~600A |
Transformation ratio measuring precision 1% |
||
|
External voltage raising machine |
220V |
0~1650V,0~3A |
0~1650V,0~3A |
0.5% |
|
|
380V |
0~2000V,0~3A |
0~2000V,0~3A |
0.5% |
||
|
External current raising machine |
220V |
0~2000A |
0~2000A |
Transformation ratio measuring precision 1% |
|
|
External voltage adjustment machine |
|
|
0~1000V,0~30A |
0.5% |
|
|
Device working power |
AC 220V/380V50HZ |
External Dimensions |
420x330x320mm³ |
Weight |
24KG |
