Advanced Technology Pendulum Impact Testing Machine
Click on the image to enlarge
FEATURE
DESCRIPTION / TECHNICAL SPECIFICATIONS
The Pendulum Impact Testing Machine is designed to measure the flexibility and strength characteristics of materials under extreme conditions. Utilizing cutting-edge technology, this machine is ideal for testing metals and plastics, compliant with numerous international standards.
Key Features :

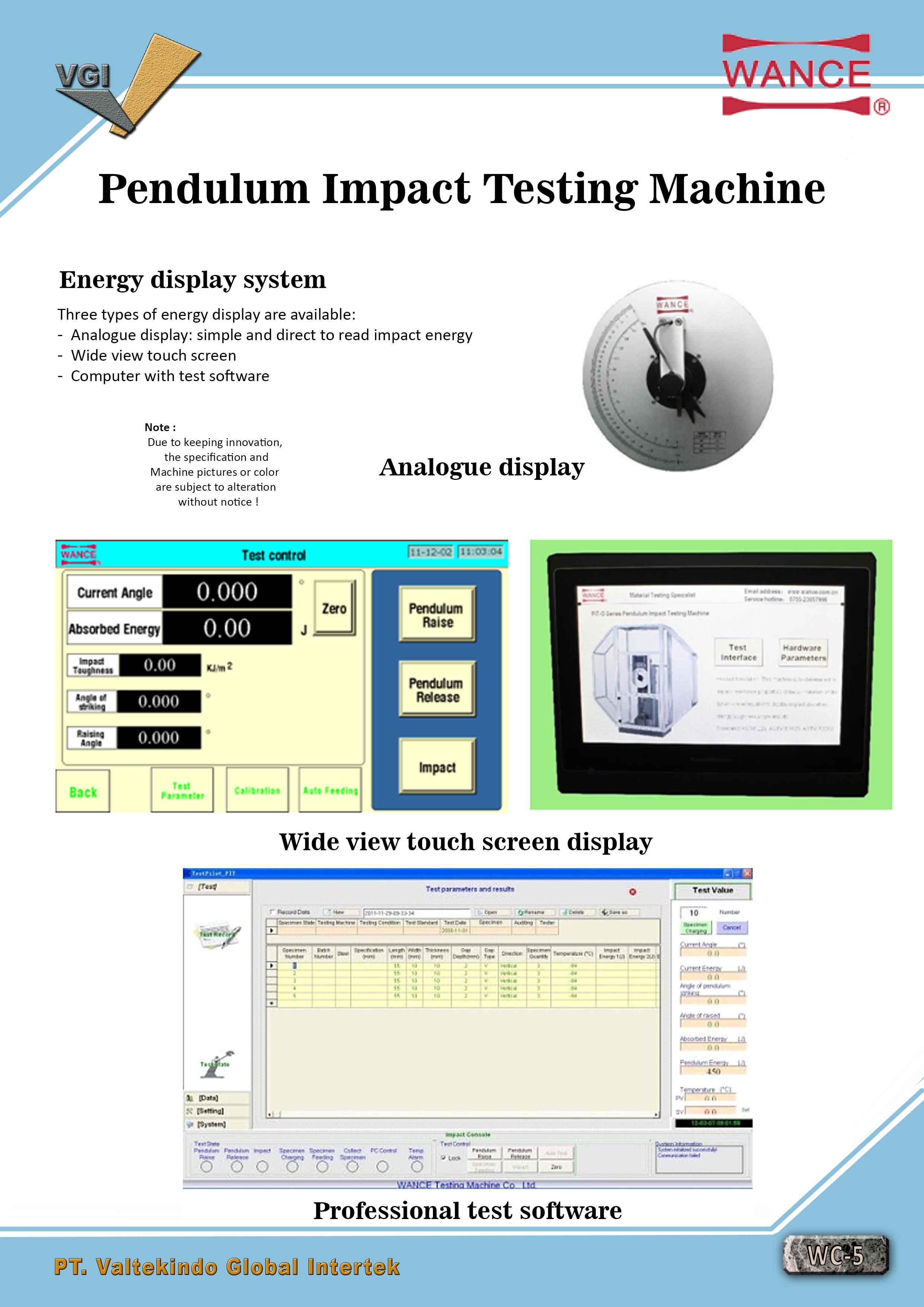

- Three Types of Energy Display :
- Analog Display : Simple, direct reading for quick assessments.
- Wide View Touch Screen : Clear, interactive visualization of data.
- Computer with Test Software : In-depth data analysis capabilities.

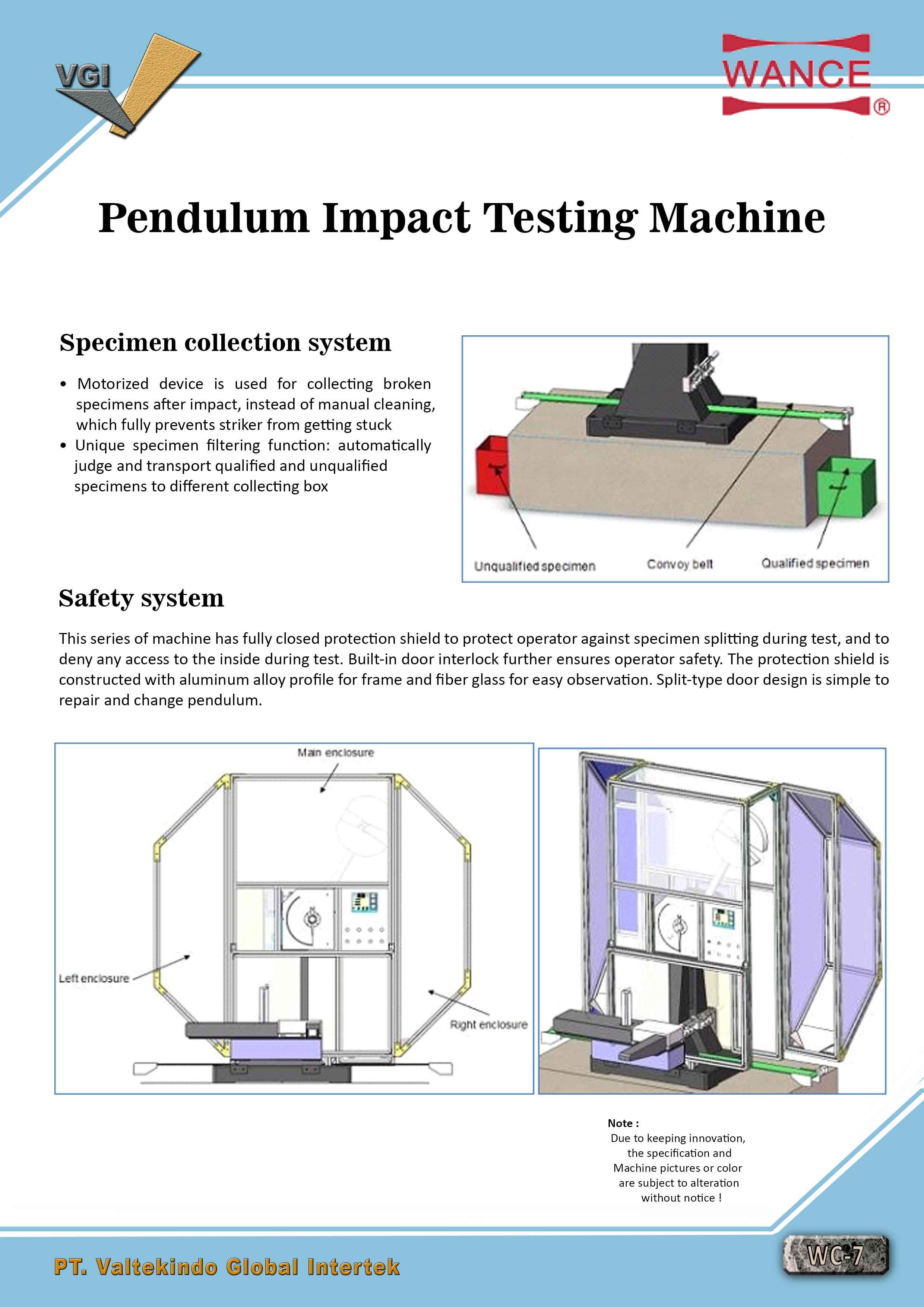

- Specimen Collection System :
- Automated motorized collection of specimens post-testing.
- Specimen filtering to separate qualified and unqualified samples.
- Optimal Safety :
- Fully enclosed protection shield for operator safety.
- Locked door design ensures security during testing processes.
Specifications :

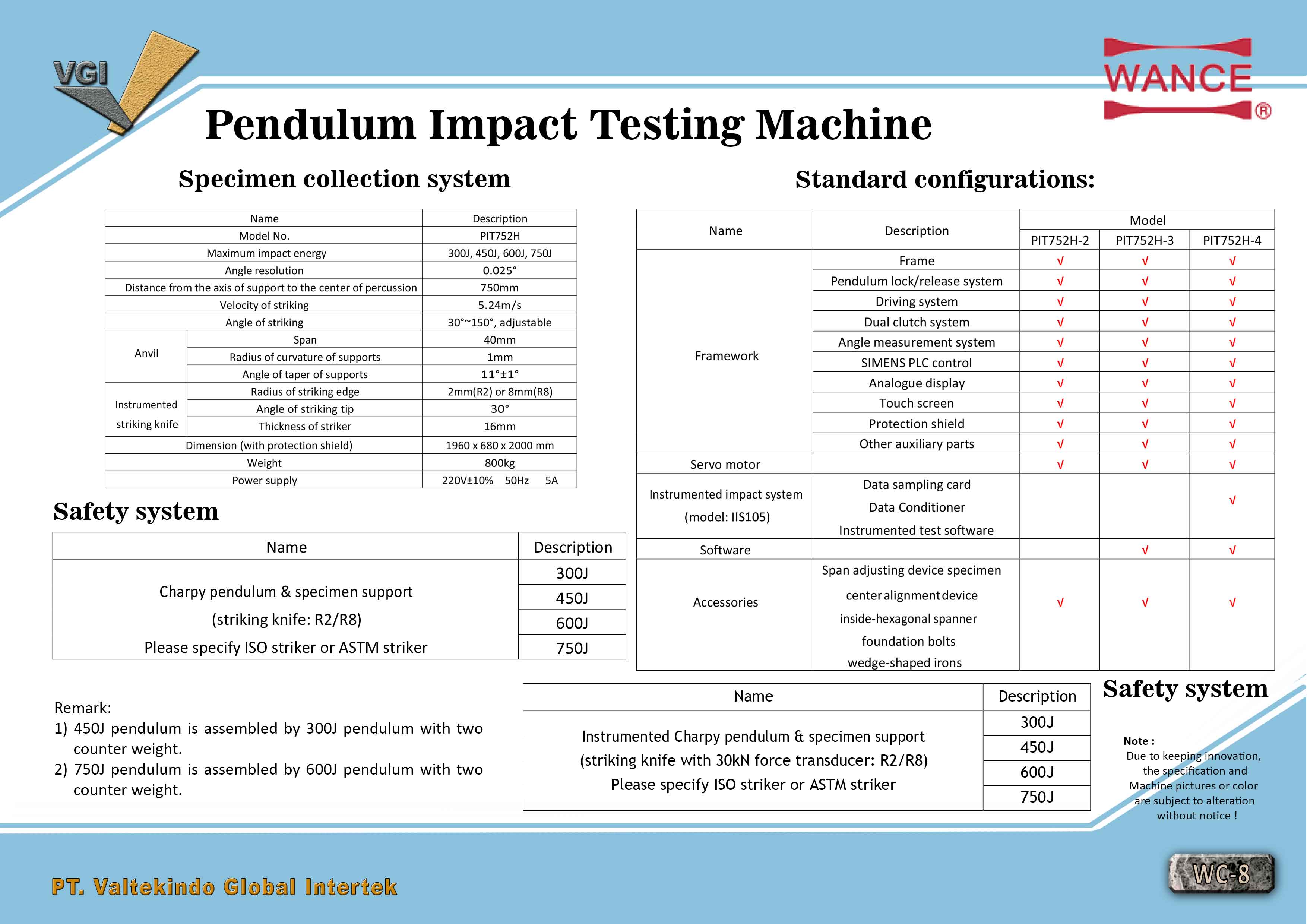

- Model : PIT452H, PIT752H
- Force Transducer Capacity : 30kN, 50kN
- A/D Sampling Resolution : 16 bits
- Maximum Sampling Frequency : 1.25 MHz
