600mm Plastic Sheet Production Line – Reliable Machines for High-Quality Plastic Sheet Production

DESCRIPTION / TECHNICAL SPECIFICATIONS

In the precision driven plastic manufacturing industry, an efficient production line is the foundation of market success. Our Plastic Sheet Production Line 600mm stands as a robust automated manufacturing system specifically engineered to process premium materials such as ABS, PP, PE, PMMA, and PC. This system provides a comprehensive, integrated solution covering the entire production workflow, from automatic material feeding to the final winding of high quality sheets.

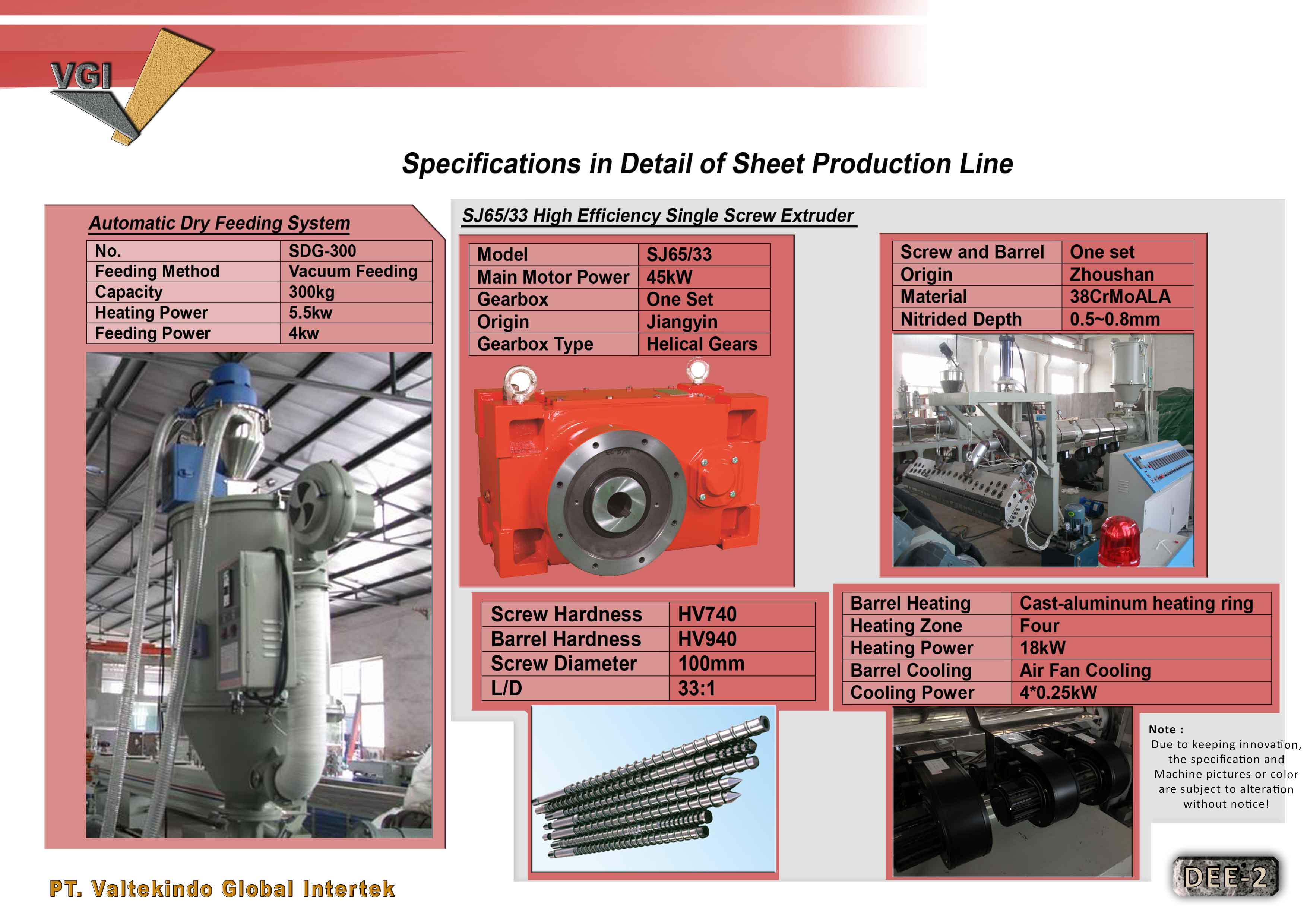

The core performance is powered by the High Efficiency Single Screw Extruder (SJ65/33 model), delivering a stable output of 80 to 120 kg per hour. Featuring a vacuum based Automatic Dry Feeding system with a 300 kg capacity and a Hydraulic Automatic Screen Changer, your production continuity is guaranteed without material interruptions. Technical excellence is further highlighted by the precision Helical Gearbox and 38CrMoALA screws with high nitrided depth for maximum operational durability.

The machine produces plastic sheets with a maximum width of 600 mm and thickness up to 6 mm, processed through a Three-roller Calender unit to achieve perfect surface flatness. This production line is highly efficient, requiring only 3 operators per shift and an efficient power consumption of 90 kW. With a total weight of 7 tons and working area dimensions of 23000 x 2500 x 3200 mm, this line is the smartest investment for factories prioritizing high precision within an optimized spatial footprint.
