600mm Plastic Sheet Production Line – Precision & Consistent Plastic Sheet Production Solutions

DESCRIPTION / TECHNICAL SPECIFICATIONS

In a competitive manufacturing landscape, precision and operational efficiency are the cornerstones of success. The Plastic Sheet Production Line 600mm stands as a robust automated manufacturing solution, engineered to process materials such as ABS, PP, PE, PMMA, and PC into high-quality plastic sheets. This integrated system covers the entire production workflow, from automatic material feeding to the final product winding with strict accuracy standards.

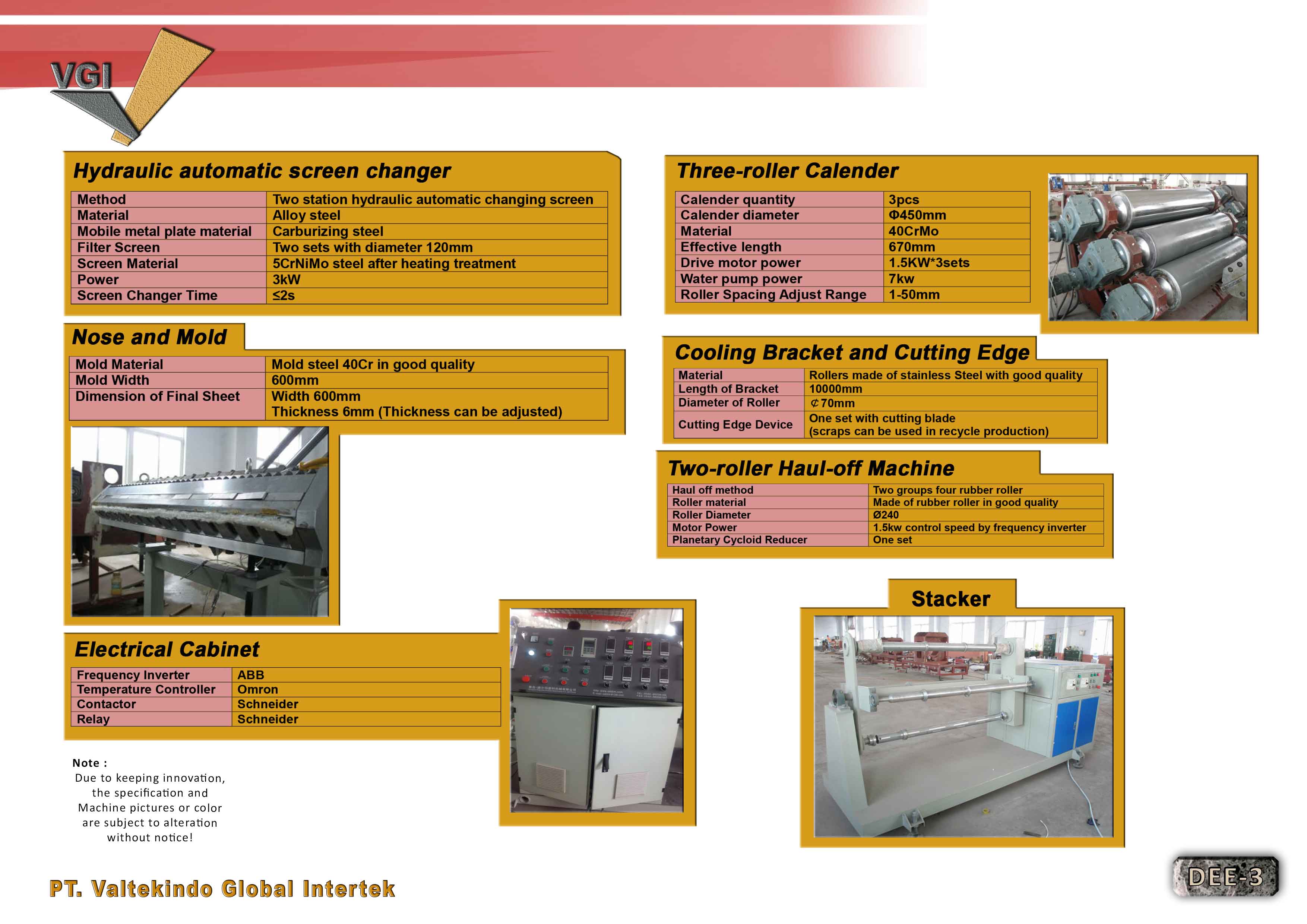

The core performance is powered by the High Efficiency Single Screw Extruder (SJ65/33 model), delivering a stable output of 80 to 120 kg per hour. Technical excellence is highlighted by the vacuum-based Automatic Dry Feeding system with a 300 kg capacity and a Hydraulic Automatic Screen Changer, ensuring production continuity without material interruptions. Internal components feature high-precision helical gears and 38CrMoALA screws, offering maximum durability for long-term industrial use.

Sheet surface quality is guaranteed by a 450 mm diameter Three-roller Calender unit, providing a flat and smooth finish, followed by an optimal 10-meter Cooling Bracket system. This production line is highly efficient, requiring only 3 operators per shift and an efficient power consumption of approximately 90 kW. With working area dimensions of 23000 x 2500 x 3200 mm, this line represents the smartest investment for factories prioritizing precision within an optimized spatial footprint.
