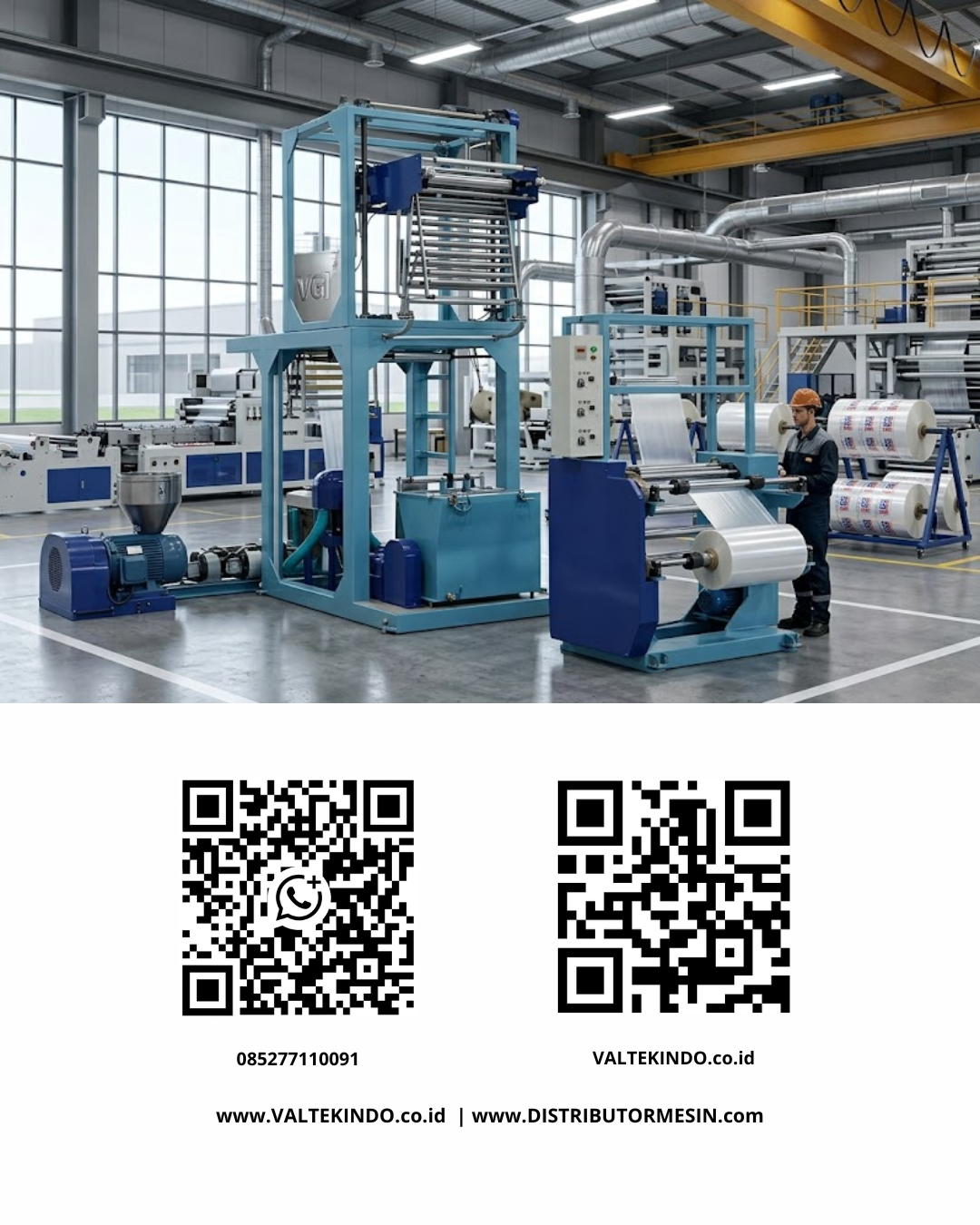

Understanding Film Blowing Machine Technology in the Modern Plastic Production Industry

The plastic industry has undergone a major transformation alongside the increasing demand for efficient, strong, and precise packaging solutions. One of the main pillars behind the manufacturing of various plastic types we use daily—from shopping bags to food wraps—is film blowing technology. This extrusion method is the most common manufacturing process used to produce high-quality polymer films on a mass scale.

Working Principles and Mechanism of Film Blowing

Technically, the film blowing process involves several crucial stages that require high accuracy. The process begins by feeding plastic resin in the form of pellets into a hopper. This material is then heated and melted inside an extruder. Once it reaches the correct molten consistency, the material is forced out through a circular die.

The uniqueness of this technology lies in the next stage: air is blown into the center of the molten plastic circle, forming a giant bubble. This bubble is then pulled upward while being cooled by an external airflow. This simultaneous pulling and blowing process determines the thickness (gauge) and width of the resulting plastic film. Once cooled and solidified, the film is flattened through pinch rollers and wound into large cylinders.

Main Components in a Production Line

To produce competitive products in the global market, a film blowing production line must be supported by reliable components. Here are the essential elements:

1. Extruder: The heart of the machine, responsible for melting the polymer homogeneously.
2. Die Head: The part that determines the basic shape of the film and the distribution of plastic thickness.
3. Air Ring: Functions to cool the plastic bubble quickly to stabilize the molecular structure.
4. Take-up Unit: A series of rollers that pull the film upward and ensure consistent plastic tension.
5. Winder: The final winding unit that must be capable of working at high speeds without damaging the film texture.

Operational efficiency depends heavily on the synchronization between these components. The use of the latest technology allows for automated controls that minimize production waste and improve film clarity.

Material Innovation: From PE to PVC

While Polyethylene (PE) is often the dominant material, the modern industry is increasingly utilizing specific materials such as PVC for certain applications. Processing these materials requires more precise machine specifications, especially in maintaining temperature stability so that the physical characteristics of the plastic do not change.

In practice, manufacturers often seek high-quality precision PVC film production solutions to meet strict industry standards. Adaptive film blowing technology allows for the creation of plastic with shrink or stretch properties that are highly needed in the protective packaging industry.

Advantages of Film Blowing Technology for Manufacturing

The use of film blowing machines offers several strategic advantages for plastic industry players:

• Flexible Thickness Control: Operators can adjust the film thickness simply by adjusting the air pressure and the pulling speed.
• Better Mechanical Properties: The blowing process creates a biaxial molecular orientation, which makes the plastic stronger and more resistant to tearing compared to the cast method.
• Cost Efficiency: With a single machine, manufacturers can produce various plastic film widths without having to constantly change the die.

The Role of Machinery in Environmental Sustainability

In the era of the green industry, film blowing technology continues to evolve to support the use of recycled materials and bioplastics. Modern machines are designed to be able to process recycled pellet mixtures without significantly reducing the physical quality of the final product. This helps companies cut operational costs while supporting the eco-friendly movement through reduced use of virgin plastic resins.

For those of you who want to explore more about industrial support machine units, you can refer to information regarding various plastic industrial equipment available for medium to large manufacturing scales. Choosing the right technology is the first step in ensuring business sustainability amidst increasingly tight market competition.
