Essential Machinery Sequence in a Crumb Rubber Production Line

The natural rubber processing industry is a vital backbone of the global manufacturing sector, primarily serving as the major raw material source for tires and technical rubber components. Among the various processed forms, Crumb Rubber (such as Standard Indonesian Rubber or SIR) is the most widely traded. Achieving the required purity and quality standards necessitates a systematic mechanical sequence.

Transforming raw field coagulum into clean, uniform rubber granules involves a series of heavy-duty machines working in a continuous flow. Understanding the function of each machine is essential for industry professionals to ensure production efficiency and high-grade final output.

1. Initial Cleaning and Slab Cutter

The first stage involves handling the raw material, often in the form of large "slabs" or lumps. The Slab Cutter functions to break these large blocks into smaller, manageable pieces. This initial reduction is usually accompanied by high-pressure water spraying to begin dislodging physical contaminants like soil, sand, or bark attached to the rubber surface.

2. Primary Crushing (Hammer Mill/Pre-Breaker)

Once resized, the rubber enters the primary crushing stage. The Pre-Breaker or Hammer Mill shreds the rubber into coarse fragments. The primary goal here is to increase the surface area of the rubber, allowing trapped contaminants within the lumps to be released. Constant water flow flushes away these impurities to prevent them from re-embedding into the rubber fibers.

3. The Creeper: The Heart of Rubber Purification

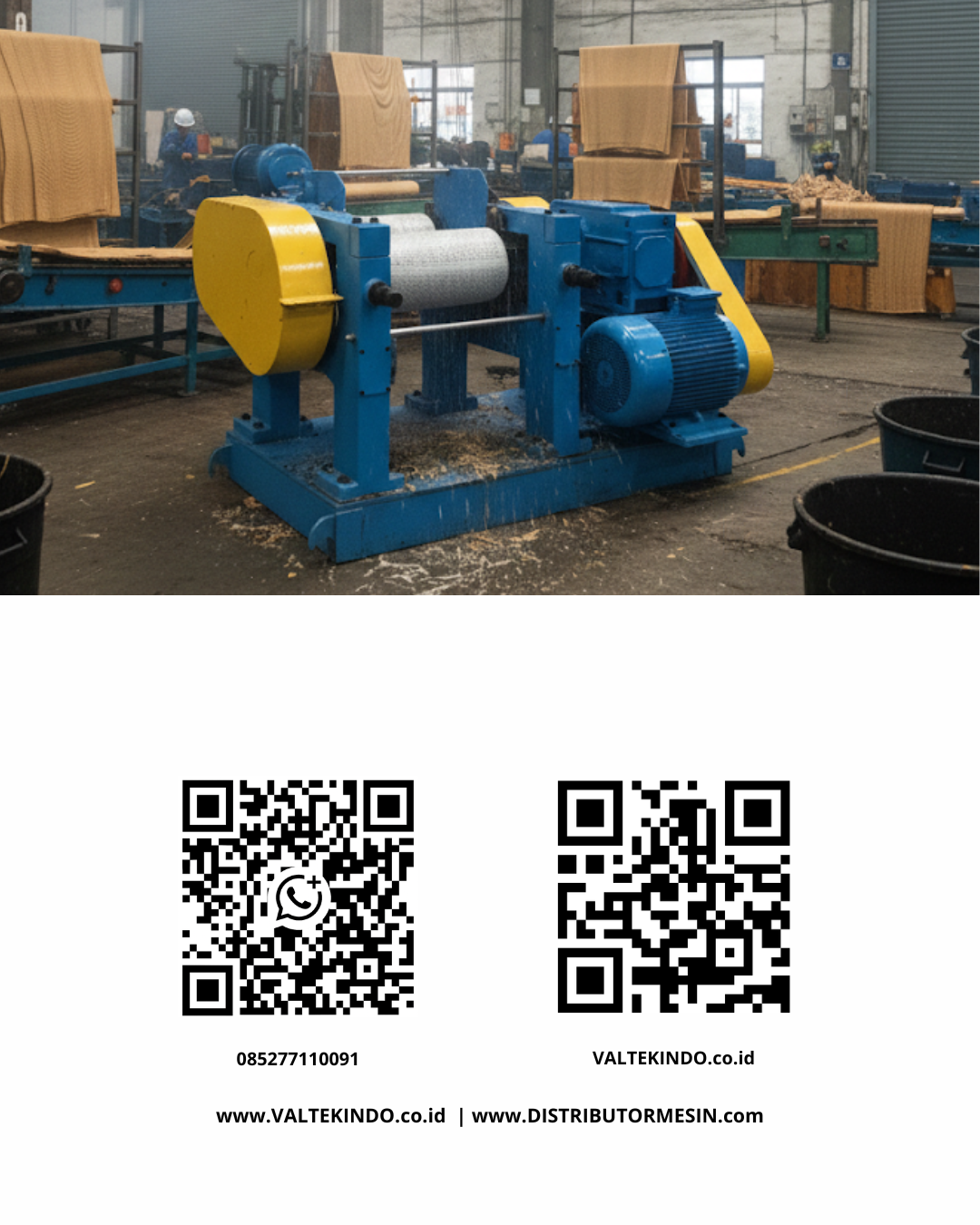

The Creeper machine plays the most critical role in a crumb rubber production line. It consists of two rollers rotating at different speeds (friction ratio) with grooved or corrugated surfaces. As the rubber passes through the nip between these rollers, it undergoes intense shearing and compression.

This process squeezes out water and fine impurities while simultaneously laminating the rubber into thin, porous sheets known as "creeper blankets." Passing the material through multiple units of this machinery ensures the rubber reaches international cleanliness standards. Utilizing a robust creeper mangel industri is a decisive factor in how effectively contaminants are destroyed without damaging the rubber's molecular structure.

4. Final Shredding (Shredder)

Following the purification process in the creeper, the clean rubber blankets must be converted back into a granular form. The Shredder finely chops the sheets into uniform crumbs. Size uniformity is vital at this stage to ensure that the subsequent drying process occurs evenly across all particles.

5. The Drying Phase (Dryer)

The wet rubber crumbs are then loaded into a large industrial dryer. The temperature inside the dryer must be strictly regulated; excessive heat can cause oxidative degradation (burning), while insufficient heat leaves moisture behind, risking mold growth. The result is dry, honey-colored crumbs ready for the final stage.

6. Baling Press

The final stage is consolidation. The dry crumbs are weighed with high precision and then fed into a Baling Press. This hydraulic machine applies massive pressure to form the rubber into solid blocks of a standard weight (typically 35 kg). These bales are then wrapped in polyethylene film and are ready for distribution to global manufacturers.

Conclusion

A crumb rubber production line is a sophisticated blend of mechanical power and process precision. Every machine, from the initial cutter to the final baling press, plays an irreplaceable role in determining the product's market value. Investing in the right machinery technology is not just about increasing capacity—it is about maintaining the consistency and quality recognized globally. For more technical details on high-standard industrial equipment, you may refer to the catalog on this industrial machinery provider's homepage.
